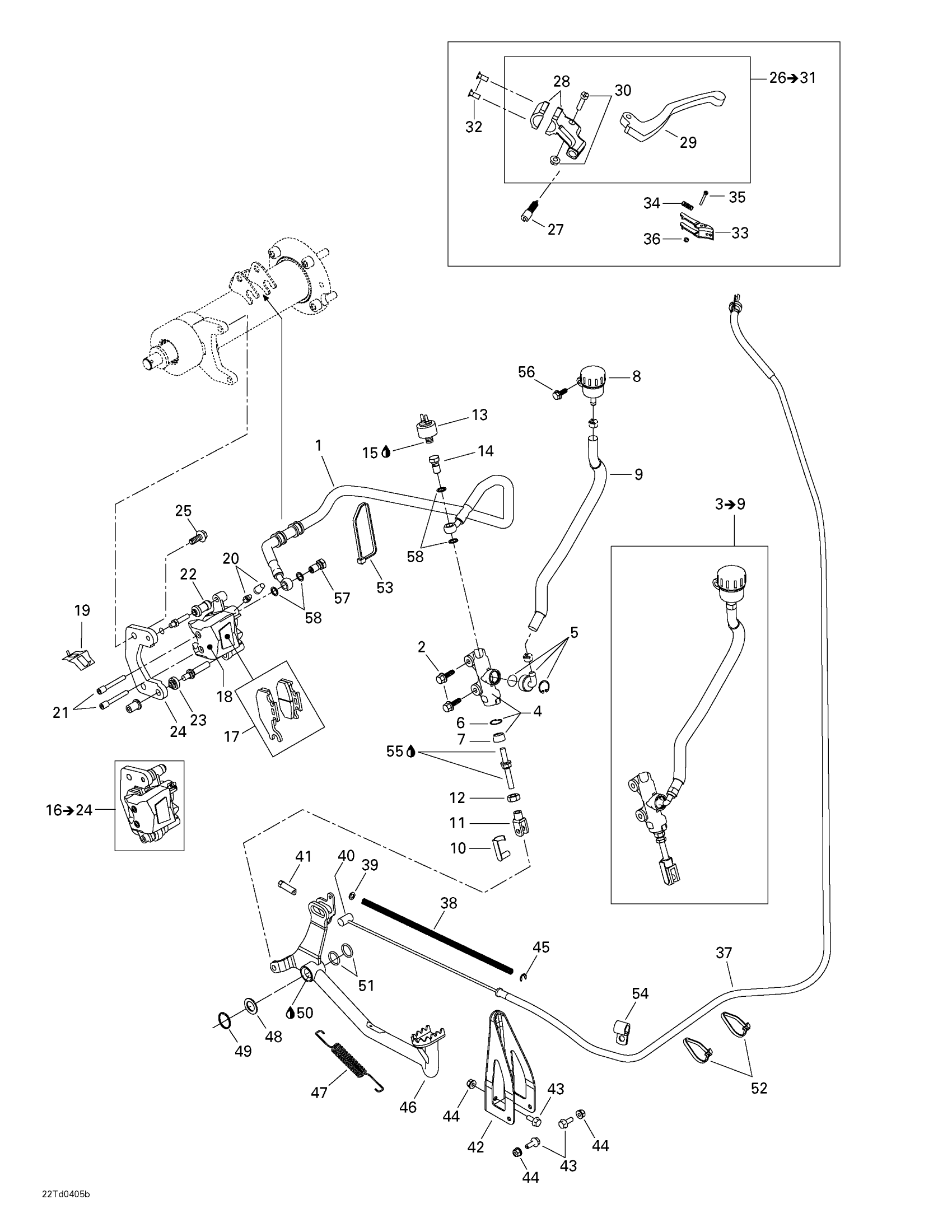

Can-Am Quest XT, 2004 06- Hydraulic Rear Brake Diagram

#

Description
Price

1

Rear Brake Flexible Hose

705600291

Unavailable

2

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

Unavailable

3

REAR MASTER CYLINDER ASS'Y - Call your local BRP dealership

705600154

Unavailable

4

Piston Set

705600063

Unavailable

5

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

6

Circlip

705600068

Unavailable

7

Compression Boot

705600090

Unavailable

8

Oil Tank, Brake Fluid Reservoir

705600182

Unavailable

9

OIL HOUSING HOSE - Call your local BRP dealership

705600169

Unavailable

10

Pin Kit

219702305

Unavailable

11

Yoke

705600100

Unavailable

12

Hex. Nut M8

232081414

Unavailable

13

Interrupteur *Brake Switch

710001345

Unavailable

14

BANJO BOLT - Call your local BRP dealership

705600092

Unavailable

15

Was 293800013 Loctite 56765

219704454

Unavailable

16

REAR CALIPER - Call your local BRP dealership | Includes 51 To 59

705600122

Unavailable

17

Brake Pad Kit

705600150

Unavailable

18

Piston Set

705600078

Unavailable

19

Spring

705600079

Unavailable

20

Bleeding Screw

705600080

Unavailable

21

Pin Set (2)

705600081

Unavailable

22

Compression Boot

705600082

Unavailable

23

Compression Boot

705600083

Unavailable

24

Lining Support

705600149

Unavailable

25

Hex. Screw M10 X 14, Scotch Grip

250000163

Unavailable

26

Brake Handle | Includes 61 to 66

705600269

Unavailable

27

Cable Screw

250000030

Unavailable

28

CLAMP KIT - Call your local BRP dealership

705600270

Unavailable

29

LEVER - Call your local BRP dealership

705600186

Unavailable

30

Pivot Kit

705600187

Unavailable

31

Lever Lock Kit

705600188

Unavailable

32

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

205351646

Unavailable

33

LOCK LEVER - Call your local BRP dealership

705600387

Unavailable

34

SPRING - Call your local BRP dealership

705600225

Unavailable

35

Screw M3 X 22

208032291

Unavailable

36

Elastic Stop Nut M3

232531423

Unavailable

37

REAR BRAKE CABLE - Call your local BRP dealership

705600124

Unavailable

38

Spring

705600173

Unavailable

39

FLAT WASHER - Call your local BRP dealership

705600145

Unavailable

40

CABLE BARREL - Call your local BRP dealership

705600146

Unavailable

41

NUT - Call your local BRP dealership

705600388

Unavailable

42

Cable Support

705600191

Unavailable

43

Hex. Flange Screw M6 X 16

207661644

Unavailable

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

45

Circlip

705600272

Unavailable

46

BRAKE PEDAL, BLACK - Call your local BRP dealership

705600125

Unavailable

47

BRAKE PEDAL SPRING - Call your local BRP dealership

705600107

Unavailable

48

WASHER - Call your local BRP dealership

503107800

Unavailable

49

CIRCLIP - Call your local BRP dealership

293370012

Unavailable

50

Synthetic Grease, 400 G

293550010

Unavailable

51

O-RING - Call your local BRP dealership

293300053

Unavailable

52

Tie-Rap 180 mm

414115200

Unavailable

53

Tie Wrap 368 mm

293750008

Unavailable

54

CLIP - Call your local BRP dealership

414351600

Unavailable

55

Not Available As Spare Part - Friction Washer

Unavailable

56

Hex. Flange Screw M6 X 16

210261650

Unavailable

57

Banjo Bolt (M10 x 1.25 thread)

705600609

Unavailable

58

Washer

414920600

Unavailable
