06- Hydraulic Front Brake

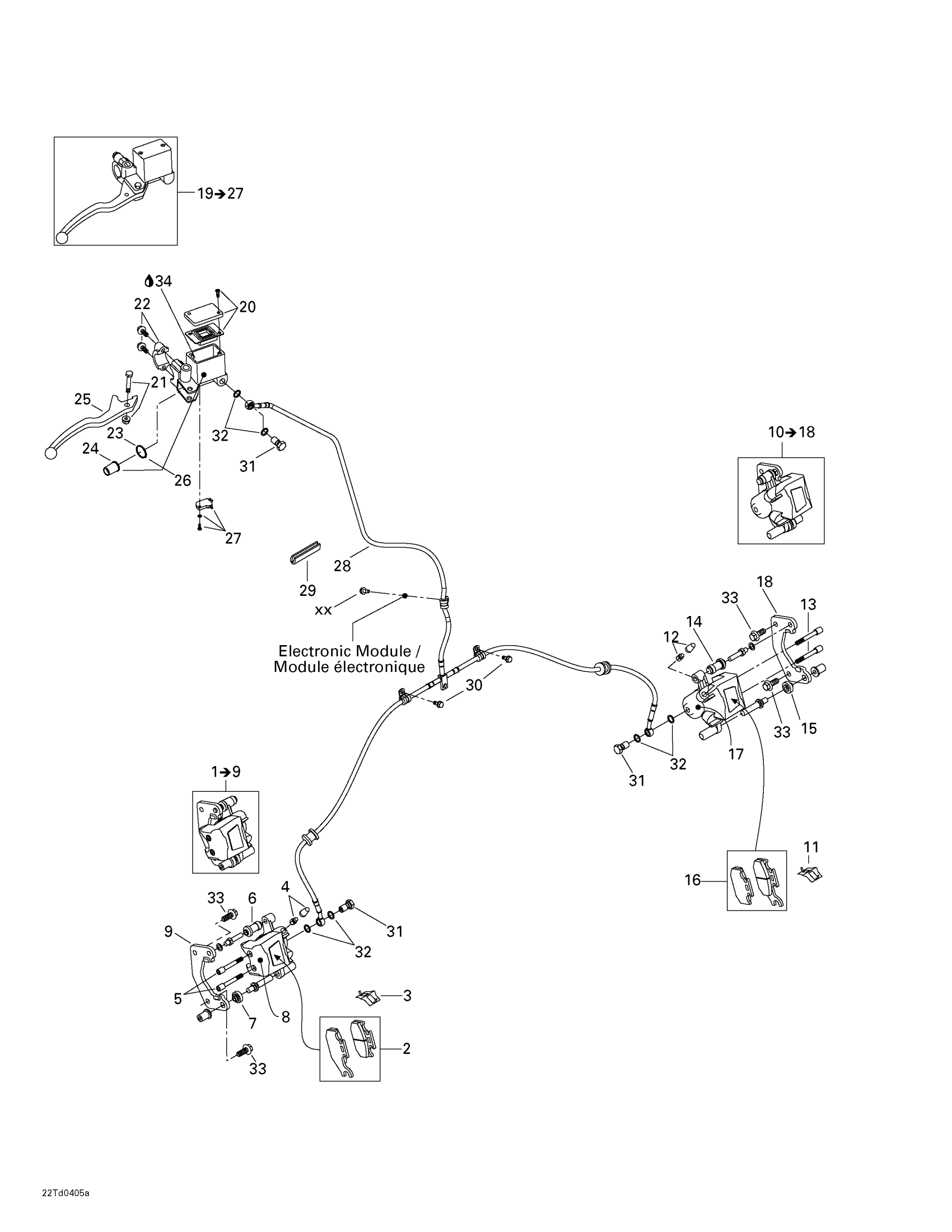

Can-Am Quest XT, 2004 06- Hydraulic Front Brake Diagram
#
1
RH Caliper | Includes 1 To 9
705600118
Unavailable
2
Brake Pad Kit
705600004
Unavailable
3
Spring
705600079
Unavailable
4
Bleeding Screw
705600080
Unavailable
5
Pin Set (2)
705600081
Unavailable
6
Compression Boot
705600082
Unavailable
7
Compression Boot
705600083
Unavailable
8
Piston Set
705600078
Unavailable
9
Lining Support
705600149
Unavailable
10
LH Caliper | Includes 10 To 18
705600119
Unavailable
11
Spring
705600079
Unavailable
12
Bleeding Screw
705600080
Unavailable
13
Pin Set (2)
705600081
Unavailable
14
Compression Boot
705600082
Unavailable
15
Compression Boot
705600083
Unavailable
16
Brake Pad Kit
705600014
Unavailable
17
Piston Set
705600078
Unavailable
18
Lining Support
705600149
Unavailable
19
FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 19 To 27
705600120
Unavailable
20
Cap Set
705600084
Unavailable
21
BOLT KIT - Call your local BRP dealership
705600085
Unavailable
22
BRACKET KIT - Call your local BRP dealership
705600087
Unavailable
23
CIRCLIP - Call your local BRP dealership
705600088
Unavailable
24
COMPRESSION BOOT - Call your local BRP dealership
705600089
Unavailable
25
LEVER ARM - Call your local BRP dealership
705600164
Unavailable
26
PISTON KIT - Call your local BRP dealership
705600152
Unavailable
27
SWITCH KIT - Call your local BRP dealership
705600148
Unavailable
28
Brake Hose
705600290
Unavailable
29
TRIM 30000MM LONG - Call your local BRP dealership
219704405
Unavailable
30
Hex. Flange Screw M6 X 16
210261650
Unavailable
31
Banjo Bolt (M10 x 1.25 thread)
705600609
Unavailable
32
Washer
414920600
Unavailable
33
Hex. Screw M10 X 20, Scotch Grip
250000057
Unavailable
34
BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership
293600063
Unavailable
HYDRAULIC OIL - Call your local BRP dealership
293600131
Unavailable
