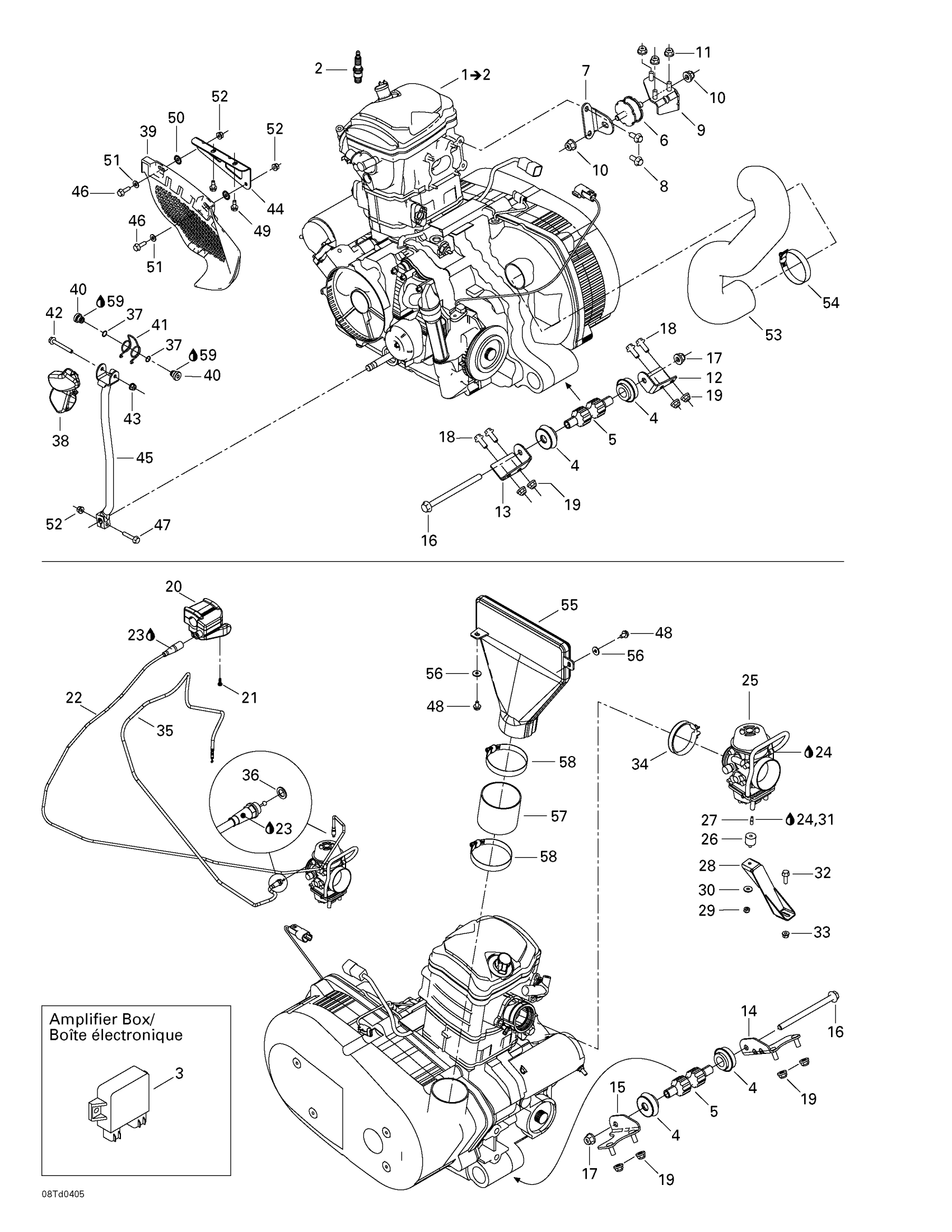

Can-Am Quest XT, 2004 01- Engine And Engine Support Diagram

#

Description
Price

1

Rotax 4 strokes engine "514" | Includes 1 - 2.

707000345

Unavailable

4 Stroke Engine | Includes Items 1 to 2

707000344

Unavailable

2

Spark Plug, NGK DCP-R8E

715900637

Unavailable

3

Amplifier Box

420265820

Unavailable

4

Anti-Vibration Mount

707000094

Unavailable

5

ENGINE SUPPORT BUSHING - Call your local BRP dealership

707000019

Unavailable

6

RUBBER MOUNT - Call your local BRP dealership

707000174

Unavailable

7

Engine Support, Black

707000159

Unavailable

8

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

Unavailable

9

Engine Bracket

707000161

Unavailable

10

Hex. Flange Elastic Nut M10

233201414

Unavailable

11

Hex. Flange Elastic Nut M8

233281414

Unavailable

12

LH FRONT ENGINE BRACKET, BLACK - Call your local BRP dealership

707000132

Unavailable

13

RH Front Engine Bracket, Black

707000101

Unavailable

14

RH Rear Engine Bracket

707000207

Unavailable

15

LH Rear Engine Bracket

707000210

Unavailable

16

Hex. Flange Screw M10 X 140

230604044

Unavailable

17

Hex. Flange Elastic Nut M10

233201414

Unavailable

18

Hex. Flange Screw M8 X 20

207682044

Unavailable

19

Hex. Flange Elastic Nut M8

233281414

Unavailable

20

Throttle Handle

707000351

Unavailable

21

Socket Head Screw M5 X 25

205052588

Unavailable

22

THROTTLE CABLE - Call your local BRP dealership

707000313

Unavailable

23

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

24

Loctite 243, 10 ml

293800060

Unavailable

25

CARBURETOR BSR42-7 - Call your local BRP dealership | Traxter 500 CVT

707200181

Unavailable

CARBURATOR BSR42-8 - Call your local BRP dealership | Traxter 650 CVT

707200186

Unavailable

26

Anti-vibration Mount

707000248

Unavailable

27

THREADED INSERT - Call your local BRP dealership

707000250

Unavailable

28

CABURETOR SUPPORT - Call your local BRP dealership

707000252

Unavailable

29

HEX. ELASTIC STOP NUT - Call your local BRP dealership

212000006

Unavailable

30

Washer | DS 650 X

391301600

Unavailable

31

Glue Tube, Loctite 454, 20 G

413708300

Unavailable

32

Hex. Flange Screw M6 X 20

207662044

Unavailable

33

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

34

Gemi Clamp

293650157

Unavailable

35

CHOKE CABLE - Call your local BRP dealership

707000314

Unavailable

36

O-RING - Call your local BRP dealership

293300075

Unavailable

37

O-RING - Call your local BRP dealership

293300081

Unavailable

38

SHIFTER HANDLE - Call your local BRP dealership | Includes 39 To 40

705500282

Unavailable

39

Transmission Guide

707000139

Unavailable

40

PIVOT SLEEVE - Call your local BRP dealership

707000205

Unavailable

41

LEVER SPRING - Call your local BRP dealership

705500283

Unavailable

42

Hex. Flange Screw M6 X 50

207665044

Unavailable

43

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

44

Guide Support, Black

707000297

Unavailable

45

LOWER LEVER - Call your local BRP dealership

707000169

Unavailable

46

Hex. Flange Screw M6 X 25

207662544

Unavailable

47

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

Unavailable

48

Hex. Forming Screw M6 X 10

210261050

Unavailable

49

Hex. Flange Screw M6 X 16

210261650

Unavailable

50

Lock Washer Serrated M6

250200041

Unavailable

51

Flat Washer

224060201

Unavailable

52

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

53

AIR INTAKE - Call your local BRP dealership

707000152

Unavailable

54

Tridon Clamp

293650023

Unavailable

55

Exhaust

707000153

Unavailable

56

Flat Washer

224061201

Unavailable

57

FLEXIBLE ADAPTOR - Call your local BRP dealership

707000154

Unavailable

58

Tridon Clamp

293650064

Unavailable

59

Synthetic Grease, 400 G

293550010

Unavailable
