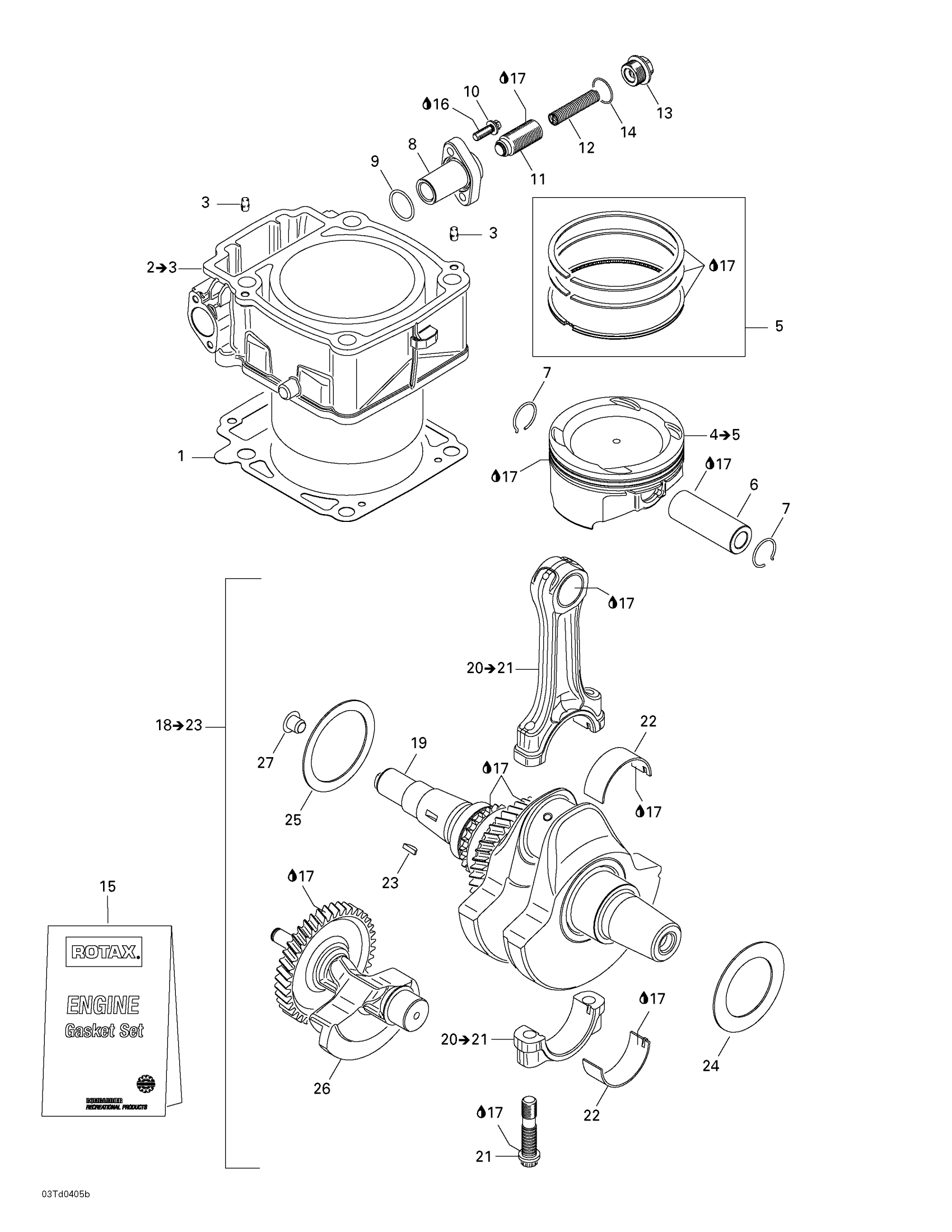

Can-Am Quest XT, 2004 01- Crankshaft And Cylinder Diagram

#

Description
Price

1

GASKET - Call your local BRP dealership

420630080

Unavailable

2

Cylinder Ass'y | Includes 2 To 3

420923947

Unavailable

3

Drive Pin 5 X 10

420929650

Unavailable

4

PISTON (M-650) ASS?Y - Call your local BRP dealership | Includes Items 4 to 5

420888867

Unavailable

Piston Ass'y, Standard, 99.96 mm | Traxter 500 CVT, Includes 4 To 5

420296565

Unavailable

PISTON ASS'Y, OVERSIZE, 100.21 MM - Call your local BRP dealership | Traxter 650 CVT, Includes 4 To 5

420888868

Unavailable

5

Piston Set Ring, Standard | Traxter 500 CVT

420890380

Unavailable

Piston Set Ring, Oversize | Traxter 500 CVT & 650 CVT

420890381

Unavailable

6

Piston Pin

420216250

Unavailable

7

Circlip

420845580

Unavailable

8

Chain Tensioner Housing

420236510

Unavailable

9

O-Ring

420430373

Unavailable

10

Torx Flange Screw M6 X 25

420440234

Unavailable

11

Chain Tensioner Plunger

420236521

Unavailable

12

Spring

420238120

Unavailable

13

Plug Screw

420641150

Unavailable

14

O-Ring

420250890

Unavailable

15

Engine Gasket Set

420684120

Unavailable

16

Loctite 243, 10 ml

293800060

Unavailable

17

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Crankshaft Ass'y | Traxter 500 CVT

420296866

Unavailable

19

CRANKSHAFT ASS'Y - Call your local BRP dealership | Traxter 650 CVT

420296644

Unavailable

20

Connecting Rod | Traxter 500 CVT, Includes 20 To 21

420917545

Unavailable

20

CONNECTING ROD - Call your local BRP dealership | Traxter 650 CVT, Includes 20 To 21

420917525

Unavailable

21

Connecting rod Screw M10 X 1

420640991

Unavailable

22

Half-Bearing

420933523

Unavailable

23

Woodruff Key 4 X 5

420246570

Unavailable

24

SHIM - Call your local BRP dealership

420627363

Unavailable

25

Shim

420627502

Unavailable

26

BALANCING SHAFT - Call your local BRP dealership

420220785

Unavailable

27

PLUG - Call your local BRP dealership

420660300

Unavailable
