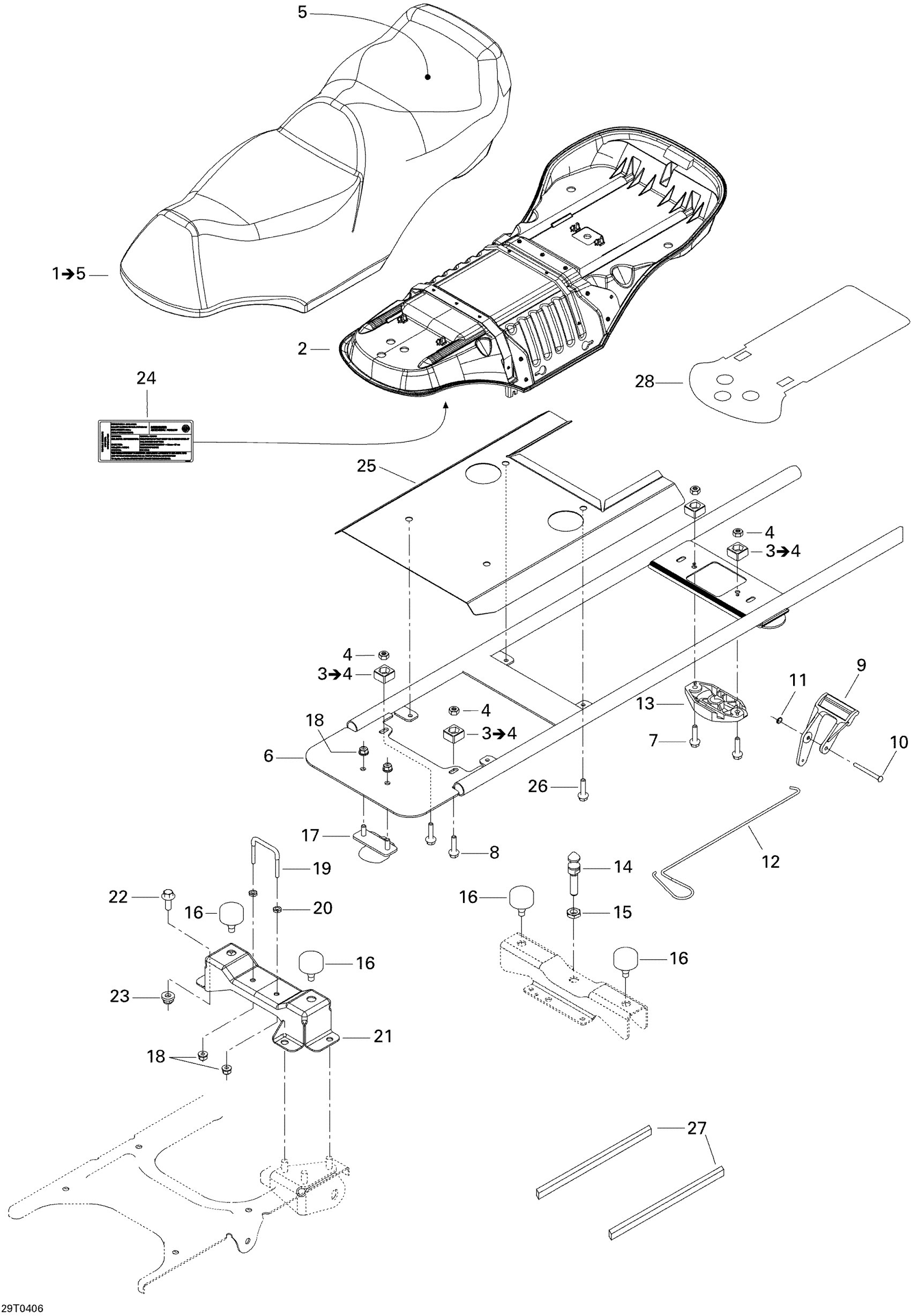

Can-Am Quest MAX, 2004 09- Seat Diagram

#

Description
Price

1

Seat Assy. | Includes Items 1 to 5

708000256

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3

708000046

Unavailable

4

Elastic Stop Nut M6

232561414

Unavailable

5

Seat Cover

708000293

Unavailable

6

Seat Support Black

708000354

Unavailable

7

Hex. Flange Screw M6 X 25

207662544

Unavailable

8

Hex. Flange Screw M6 X 16

207661644

Unavailable

9

Lever Latch

708000010

Unavailable

10

SOLID RIVET 3/16 X 1-7/8 - Call your local BRP dealership

293150062

Unavailable

11

Push Nut

389804300

Unavailable

12

SPRING - Call your local BRP dealership

708000015

Unavailable

13

Latch Base

708000034

Unavailable

14

SEAT STUD - Call your local BRP dealership

291000945

Unavailable

15

Hex. Jam Nut M10

232100600

Unavailable

16

Rubber Stopper

708000758

Unavailable

17

Seat Hook

291001479

Unavailable

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

19

SEAT HOOK - Call your local BRP dealership

291000468

Unavailable

20

Hex. Nut M6

232061600

Unavailable

21

Seat Support

708000088

Unavailable

22

Hex. Flange Screw M8 X 20

207682044

Unavailable

23

Hex. Flange Elastic Nut M8

233281414

Unavailable

24

Emission Label

704900627

Unavailable

25

Heatshield

708000326

Unavailable

26

Hex. Forming Screw M6 X 10

210261050

Unavailable

27

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

28

Reflective Sheet

708000160

Unavailable
