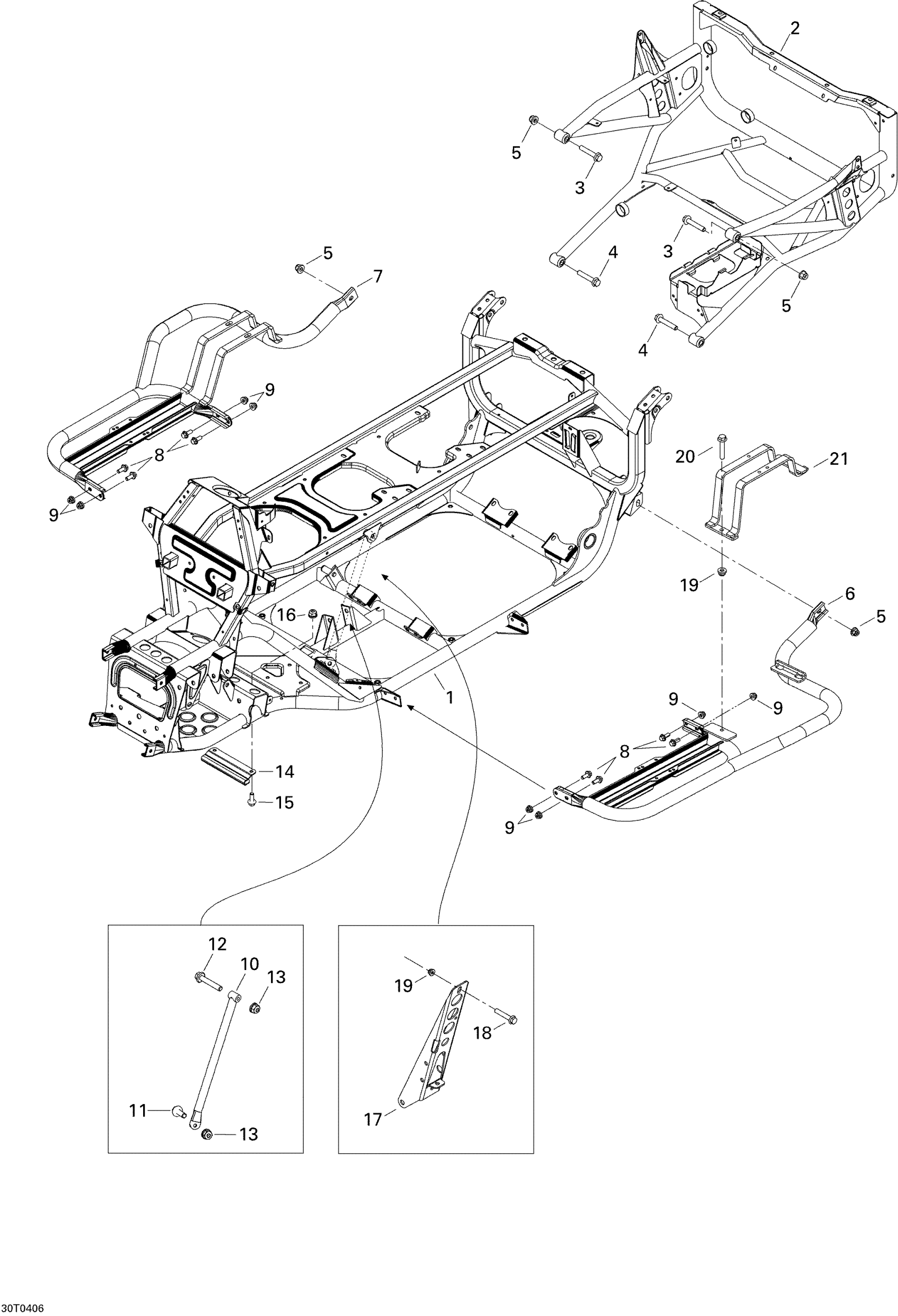

Can-Am Quest MAX, 2004 09- Frame Diagram

#

Description
Price

1

Frame (Black)

705200759

Unavailable

2

Frame Extension

705200864

Unavailable

3

Hex. Flange Screw M10 X 55

207605544

Unavailable

4

HEX. FLANGED SCREW M10 X 80 - Call your local BRP dealership

207608044

Unavailable

5

Hex. Flange Elastic Nut M10

233201414

Unavailable

7

RH Footrest, Black

705200653

Unavailable

6

LH Footrest, Black

705200847

Unavailable

8

Hex. Flange Screw M8 X 20

207682044

Unavailable

9

Hex. Flange Elastic Nut M8

233281414

Unavailable

10

RH Removable Brace

705200404

Unavailable

10

LH Removable Brace

705200405

Unavailable

11

Hex. Flange Screw M8 X 25

207682544

Unavailable

12

Hex. Flange Screw M8 X 50

207685044

Unavailable

13

Hex. Flange Elastic Nut M8

233281414

Unavailable

14

Bracket, Black

705200575

Unavailable

15

Hex. Flange Screw M6 X 16

207661644

Unavailable

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

17

Brake Cab Support

705200803

Unavailable

18

Hex. Flange Screw M8 X 20

207682044

Unavailable

19

Hex. Flange Elastic Nut M8

233281414

Unavailable

20

Hex. Flange Screw M8 X 25

207682544

Unavailable

21

Foot Rest, Black

705200852

Unavailable
