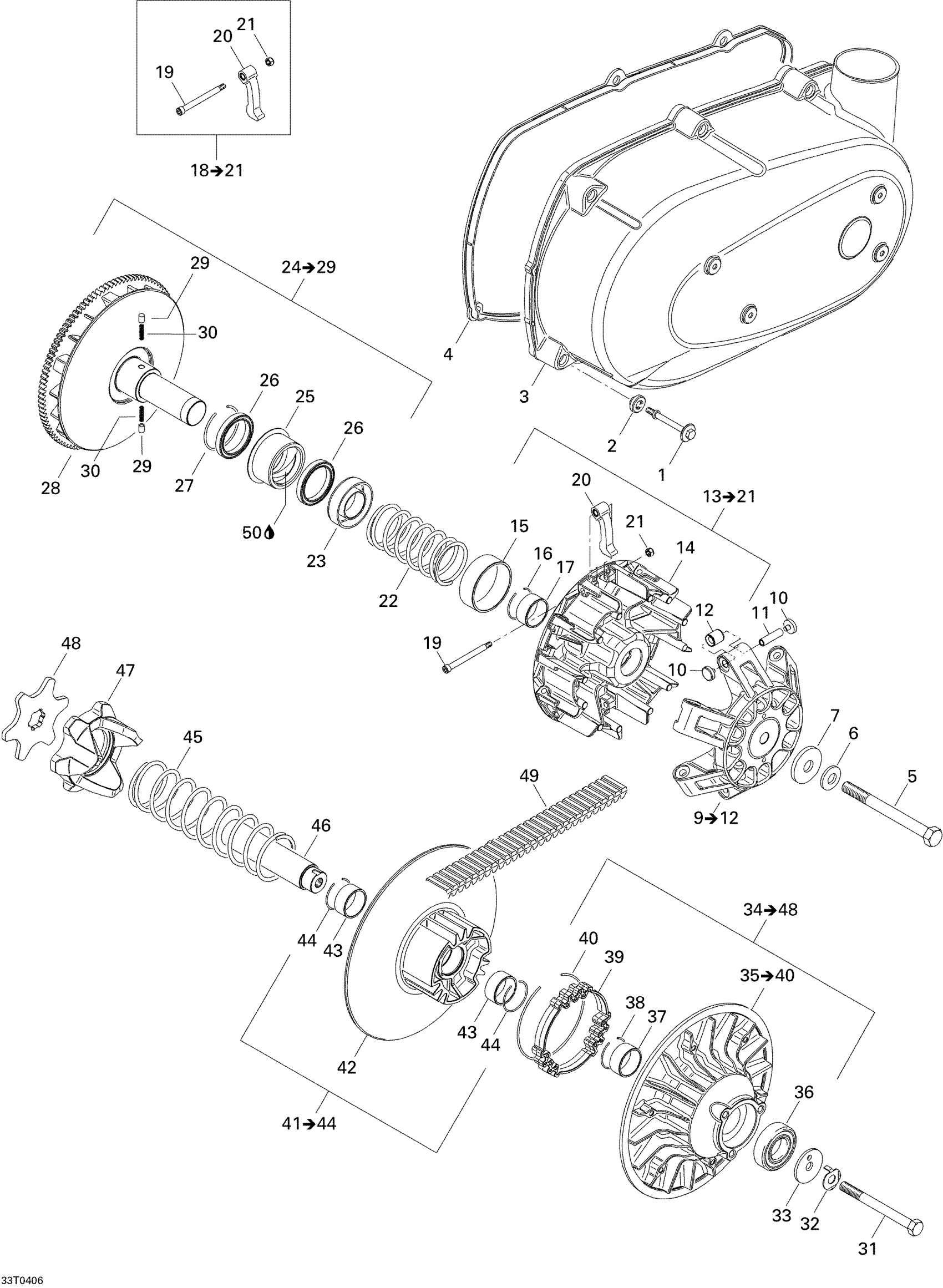

Can-Am Quest MAX, 2004 05- Pulley System Diagram

#

Description
Price

1

DISTANCE SCREW M6 X 47.9 - Call your local BRP dealership

420240906

Unavailable

2

Rubber Bushing

420260050

Unavailable

3

TRANSMISSION COVER - Call your local BRP dealership

420610350

Unavailable

4

GASKET - Call your local BRP dealership

420630110

Unavailable

5

Hex. Screw M12 X 140

420641859

Unavailable

6

Spring Washer

420627768

Unavailable

7

Thrust Washer

420627920

Unavailable

8

CVT Drive Pulley Ass'y | Traxter 650 CVT, Includes 8 To 30

420684340

Unavailable

8

CVT Drive Pulley Ass'y | Traxter 500 CVT, Includes 8 To 30

420684345

Unavailable

9

Governor Cup Ass'y | Includes 6 to 9

420280522

Unavailable

10

Slider Shoe Set

420281296

Unavailable

11

Roller Axle

417223257

Unavailable

12

Roller

417223767

Unavailable

13

Outer Half Ass'y | Traxter 500 CVT, Includes 13 To 21

420280148

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Centrifugal Lever Kit | Traxter 500 CVT, Includes 18 To 21

420248431

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Compression Spring | Traxter 650 CVT

420238164

Unavailable

23

SPRING SEAT - Call your local BRP dealership

420627573

Unavailable

24

Inner Half Ass'y | Includes 24 To 30

420281395

Unavailable

25

Drive Pulley Clutch

420257195

Unavailable

26

Ball Bearing

420632377

Unavailable

27

Retaining Ring

420245951

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Spring Sleeve

420229577

Unavailable

30

Spring

420239134

Unavailable

31

Hex. Screw M10 X 110

420441485

Unavailable

32

TAB WASHER - Call your local BRP dealership

420245925

Unavailable

33

Thrust Washer

420627590

Unavailable

34

CVT Driven Pulley Ass'y | Includes 34 To 49

420684350

Unavailable

35

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

Unavailable

36

Ball Bearing

420932421

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

TORQUE GEAR - Call your local BRP dealership

420660120

Unavailable

40

Retaining Ring

420245911

Unavailable

41

DRIVEN PULLEY INNER HALF ASS'Y - Call your local BRP dealership | Includes 42 To 45

420280186

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Not Available As Spare Part - Friction Washer

Unavailable

44

Not Available As Spare Part - Friction Washer

Unavailable

45

Compression Spring, Driven Pulley

420238173

Unavailable

46

Driven Pulley Shaft

420220913

Unavailable

47

DRIVEN PULLEY CAM - Call your local BRP dealership

420280191

Unavailable

48

Cam Plate

420627586

Unavailable

49

V-belt | Traxter 650 CVT

715900023

Unavailable

50

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
