- Quest MAX, 2004
05- Gear Shift

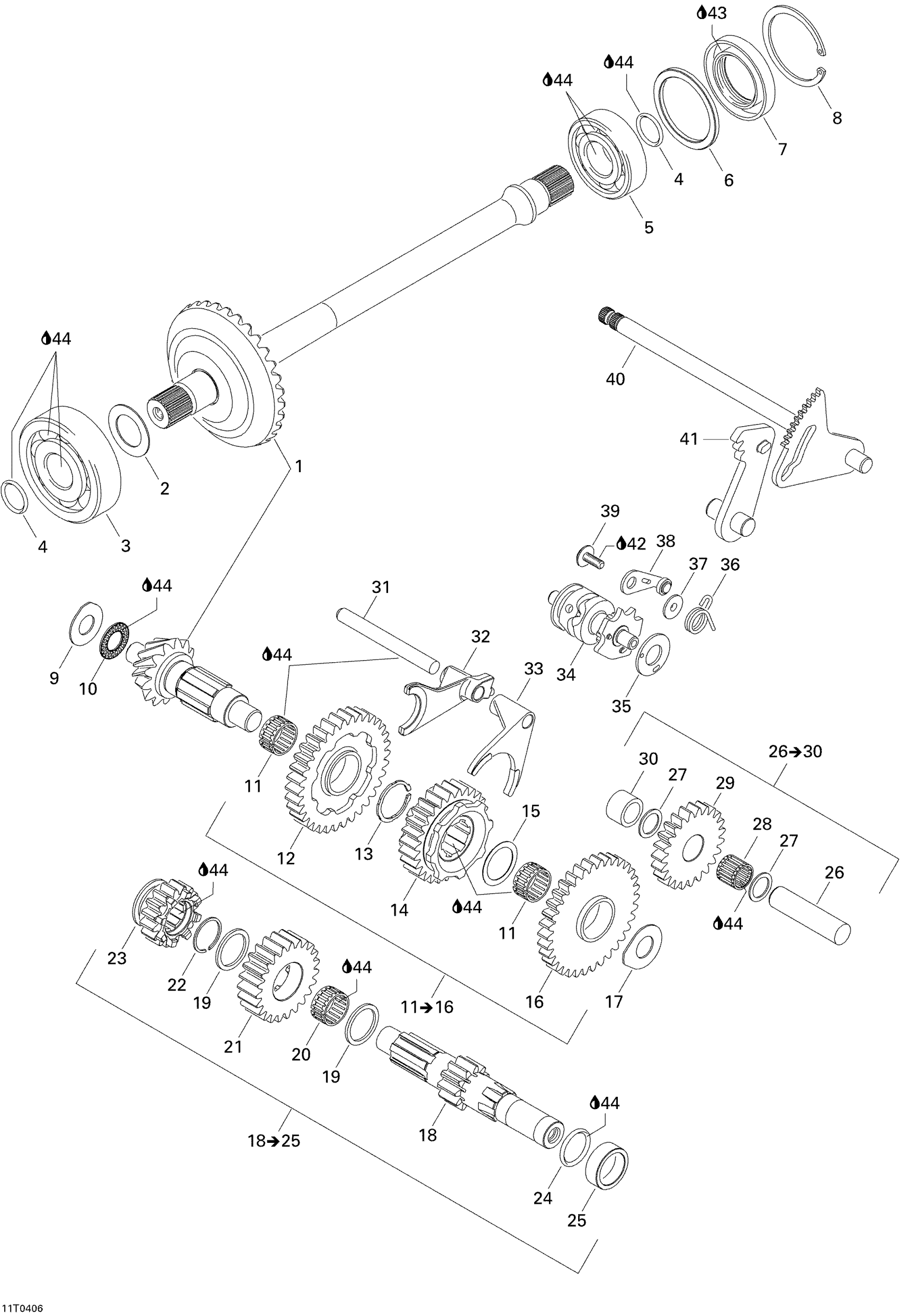

Can-Am Quest MAX, 2004 05- Gear Shift Diagram
#
1
BEVELLED GEAR ASS'Y - Call your local BRP dealership
420296530
Unavailable
2
Washer Thrust Set
420281300
Unavailable
3
Ball Bearing 6405
420632280
Unavailable
4
O-Ring
420430373
Unavailable
5
Ball Bearing
420932822
Unavailable
6
DISTANCE RING - Call your local BRP dealership
420247250
Unavailable
7
Oil Seal
420650682
Unavailable
8
RETAINING RING - Call your local BRP dealership
420445070
Unavailable
9
Thrust Washer Set, MAG Side
420281306
Unavailable
10
Axial Needle Bearing
420632300
Unavailable
11
Gearwheel Set | Traxter 500 CVT, Includes 11 To 17
420281282
Unavailable
11
Needle Bearing
420632070
Unavailable
12
Not Available As Spare Part - Friction Washer
Unavailable
13
Retaining Ring
420245850
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
17
Thrust Washer Set, CVT Side
420281302
Unavailable
18
Counter Shaft, 11 Tooth | Traxter 500 CVT, Includes 19 To 27
420220978
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
Needle Bearing
420632070
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
Circlip
420445302
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
24
O-Ring
420630040
Unavailable
25
Distance Ring
420247110
Unavailable
26
Idle Gear Shaft Ass'y | Includes 28 To 33
420229605
Unavailable
26
Needle Pin
420229600
Unavailable
27
THRUST WASHER - Call your local BRP dealership
420944190
Unavailable
28
Needle Cage
420432034
Unavailable
29
GEAR, 23 TEETH - Call your local BRP dealership
420635310
Unavailable
30
DISTANCE SLEEVE - Call your local BRP dealership
420247120
Unavailable
31
Pin
420229540
Unavailable
32
SHIFT FORK - Call your local BRP dealership
420257180
Unavailable
33
Shift Fork
420257230
Unavailable
34
SHIFT DRUM ASS'Y - Call your local BRP dealership | Includes 37 To 38
420257175
Unavailable
35
ISOLATING WASHER - Call your local BRP dealership
420227567
Unavailable
36
Index Spring
420239561
Unavailable
37
BUSHING - Call your local BRP dealership
420227710
Unavailable
38
INDEX LEVER KIT - Call your local BRP dealership
703500189
Unavailable
39
Torx Screw M6 X 16
420241529
Unavailable
40
SHIFT SHAFT ASS'Y - Call your local BRP dealership
420220806
Unavailable
41
LOCK LEVER - Call your local BRP dealership | Traxter 650 CVT
420257156
Unavailable
41
LOCK LEVER - Call your local BRP dealership | Traxter 500 CVT
420257158
Unavailable
42
Loctite 243, 10 ml
293800060
Unavailable
43
Grease, Super Lube
293550030
Unavailable
44
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
