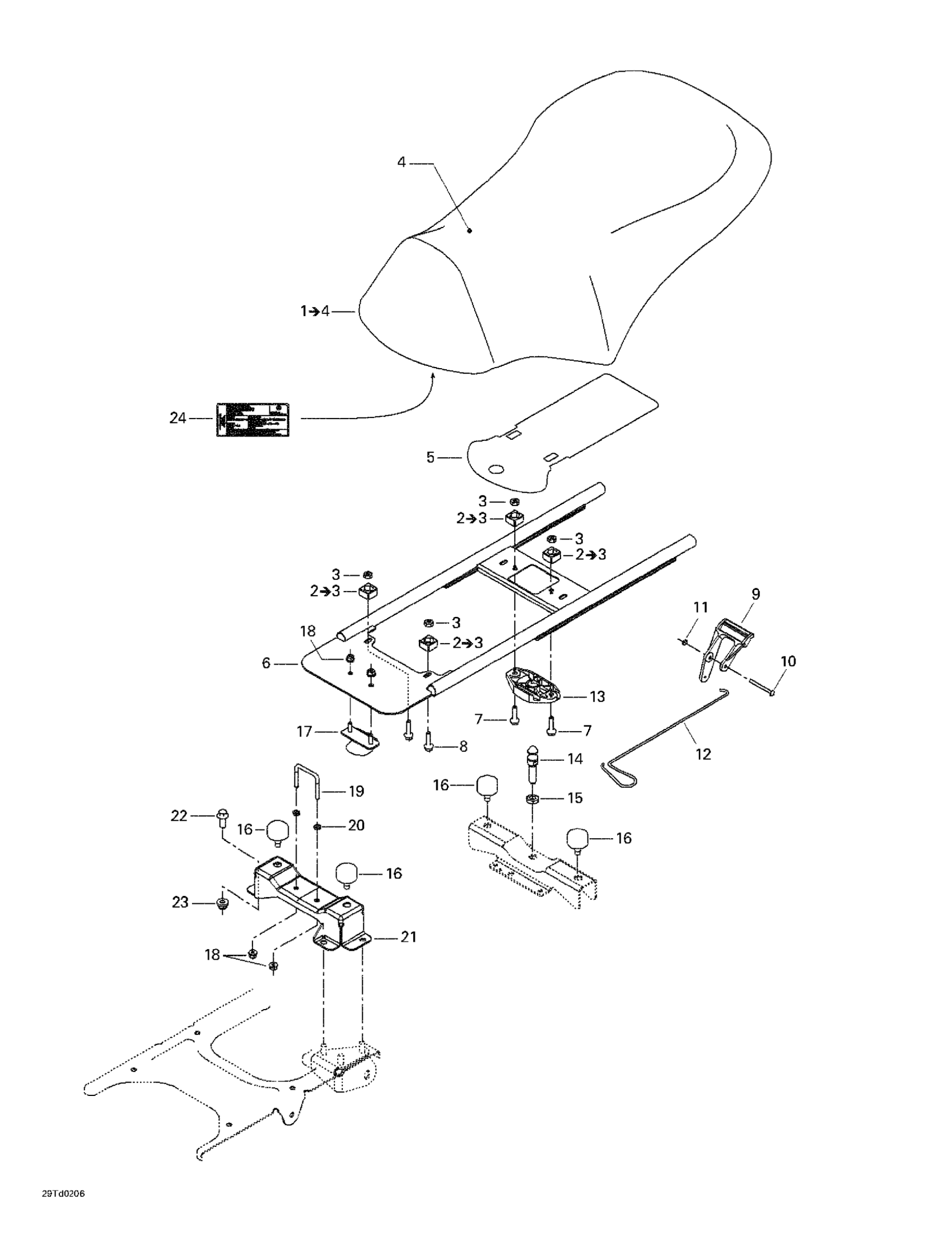

Can-Am Quest, Green/vert, 2002 09- Seat Diagram
#
Description
Price
1
Seat ass'y | Includes 1 - 4.
708000050
Unavailable
2
NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3
708000046
Unavailable
3
Elastic Stop Nut M6
232561414
Unavailable
4
Seat cover
708000095
Unavailable
5
Reflective Sheet
708000029
Unavailable
6
Seat Support
708000085
Unavailable
7
Hex. Flange Screw M6 X 25
207662544
Unavailable
8
Hex. Flange Screw M6 X 16
207661644
Unavailable
9
Lever Latch
708000010
Unavailable
10
SOLID RIVET 3/16 X 1-7/8 - Call your local BRP dealership
293150062
Unavailable
11
Push Nut
389804300
Unavailable
12
SPRING - Call your local BRP dealership
708000015
Unavailable
13
Latch Base
708000034
Unavailable
14
LATCH STUD - Call your local BRP dealership
291000689
Unavailable
15
Hex. Jam Nut M10
232100600
Unavailable
16
Rubber Stopper
708000758
Unavailable
17
Seat Hook
291001479
Unavailable
18
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
19
SEAT HOOK - Call your local BRP dealership
291000468
Unavailable
20
Hex. Nut M6
232061600
Unavailable
21
Seat Support
708000088
Unavailable
22
Hex. Flange Screw M8 X 20
207682044
Unavailable
23
Hex. Flange Elastic Nut M8
233281414
Unavailable
24
Emission Label
704900305
Unavailable
