- Partiron
- OEM Parts
- Can-Am
- Can-Am ATV
- 2002
- Quest 500
- Quest, Green/vert, 2002
09- Frame And Luggage Racks

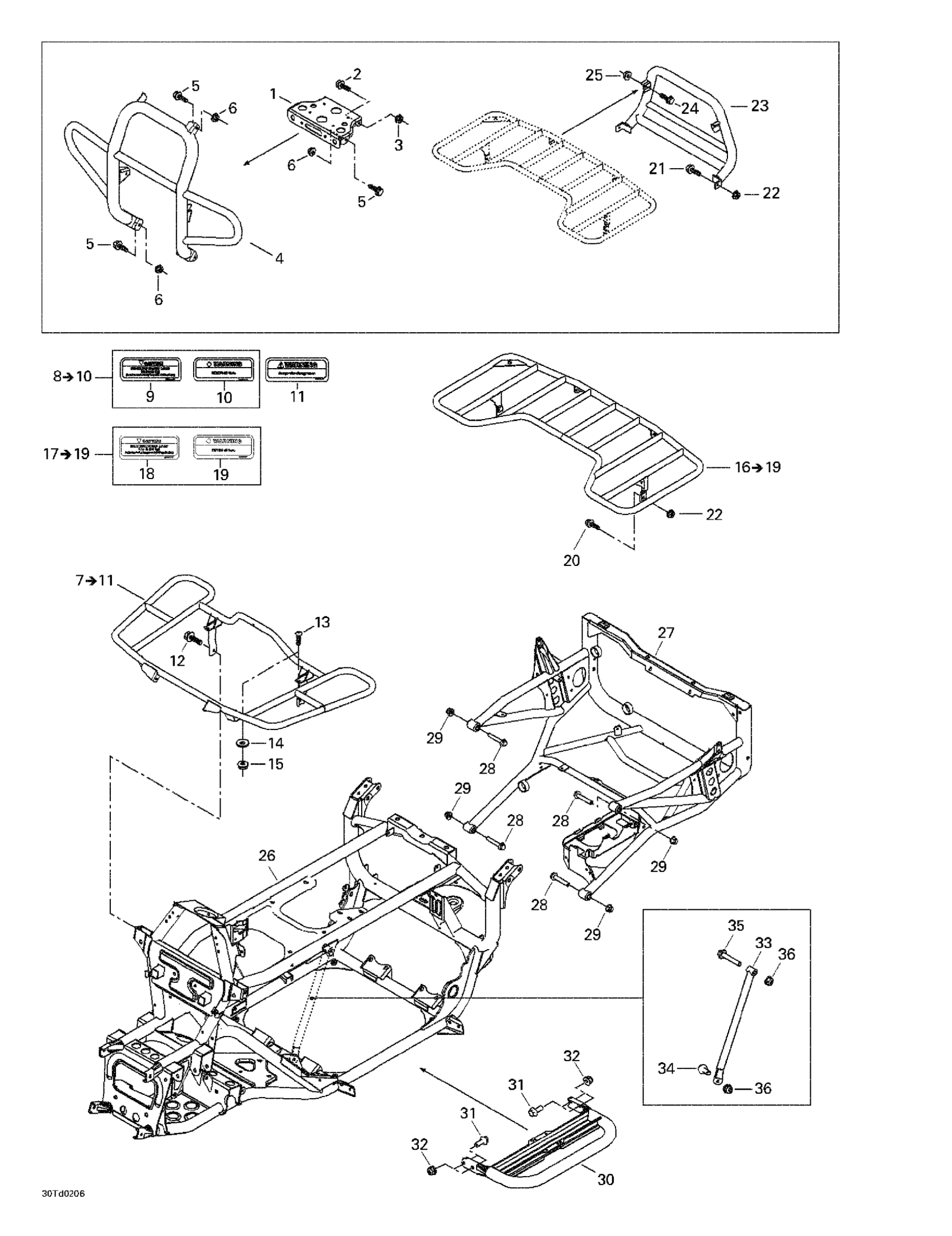

Can-Am Quest, Green/vert, 2002 09- Frame And Luggage Racks Diagram
#
1
WINCH LATCH, BLACK - Call your local BRP dealership
705200196
Unavailable
2
Hex. Flange Screw M8 X 20
207682044
Unavailable
3
Hex. Flange Elastic Nut M8
233281414
Unavailable
4
Front bumper
705000001
Unavailable
5
Hex. Flange Screw M8 X 20
207682044
Unavailable
6
Hex. Flange Elastic Nut M8
233281414
Unavailable
7
Front Luggage Rack Ass'y | 7415/7416. 7417/7418.
703500053
Unavailable
8
Warning Label, Front Load | Includes 8 - 9.
704900037
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Not Available As Spare Part - Friction Washer
Unavailable
11
Warning Label, Tray Cover
704900038
Unavailable
12
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
13
TRUSS PHILLIPS SCREW M6 X 25 - Call your local BRP dealership
250000035
Unavailable
14
Flat Washer
224060201
Unavailable
15
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
16
Rear Luggage Rack Ass'y | Includes 14 - 16.
703500059
Unavailable
17
Warning Label | Includes 6 - 7.
704900036
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
Hex. Flange Screw M8 X 20
207682044
Unavailable
21
Hex. Flange Screw M8 X 50
207685044
Unavailable
22
Hex. Flange Elastic Nut M8
233281414
Unavailable
23
Rear bumper (silver)
705000210
Unavailable
24
Hex. Flange Screw M8 X 20
207682046
Unavailable
25
Hex. Elastic Flange Nut M8
233281416
Unavailable
26
Frame (Black)
705200258
Unavailable
27
Frame Extention
705200254
Unavailable
28
Hex. Flange Screw M10 X 55
207605544
Unavailable
29
Hex. Flange Elastic Nut M10
233201414
Unavailable
30
Footrest (silver)
705000008
Unavailable
31
Hex. Flange Screw M8 X 20
207682044
Unavailable
32
Hex. Flange Elastic Nut M8
233281414
Unavailable
33
RH Removable Brace
705200404
Unavailable
LH Removable Brace
705200405
Unavailable
34
Hex. Flange Screw M8 X 25
207682544
Unavailable
35
Hex. Flange Screw M8 X 45
207684544
Unavailable
36
Hex. Flange Elastic Nut M8
233281414
Unavailable
