09- Body And Accessories, Front View

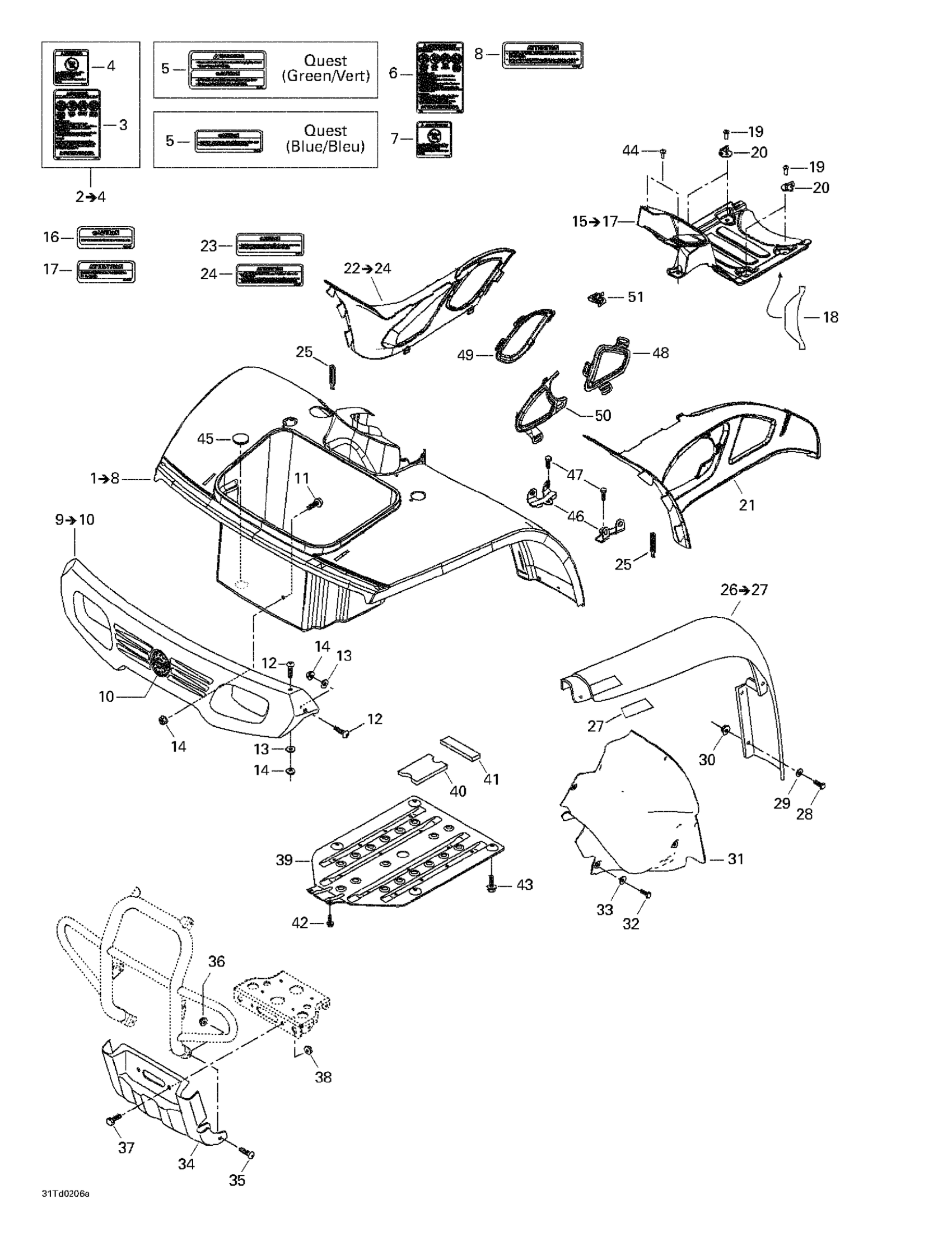

Can-Am Quest, Green/vert, 2002 09- Body And Accessories, Front View Diagram
#
1
Front Fender Kit | (Green 7460 - 7466) Traxter.
703500138
Unavailable
Front Fender Kit | Quest (Blue/Bleu).
703500144
Unavailable
2
Warning Label | Includes 9 - 10.
704900034
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
Not Available As Spare Part - Friction Washer
Unavailable
5
Caution Decal, Transmission Selector
704900135
Unavailable
Caution Decal, Lever And 4wd Switch | English Version
704900434
Unavailable
6
Warning Decal, Death And Injuries
704900002
Unavailable
7
Warning Decal, Under 16 Years Old | French Version
704900012
Unavailable
8
Not Available As Spare Part - Friction Washer
Unavailable
Caution Decal, Transmission Selector | French version
704900008
Unavailable
9
Front fascia | Includes 9 - 10.
703500152
Unavailable
10
BRP Logo 68mm
516008739
Unavailable
11
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
12
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
13
Flat Washer
224060201
Unavailable
14
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
15
Console Kit | Includes 15 - 17.
703500176
Unavailable
16
CAUTION DECAL, CONSOLE LOAD - Call your local BRP dealership | English Version
704900247
Unavailable
17
Caution Decal, Console Load | French Version
704900250
Unavailable
18
Reflective Sheet
705000541
Unavailable
19
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
20
HOOK, BLACK - Call your local BRP dealership
705000369
Unavailable
21
LH cover | Quest (Blue/Bleu).
705000203
Unavailable
LH cover | Quest (Green/Vert).
705000334
Unavailable
22
RH cover | Includes 22 - 24. Quest (Blue/Bleu).
703500154
Unavailable
RH cover | Quest (Green/Vert).
703500155
Unavailable
23
Caution Decal, Lever And 4wd Switch | English Version
704900434
Unavailable
24
Caution Decal, Transmission Selector | French version
704900008
Unavailable
25
Windshield Latch
570023800
Unavailable
26
LH front mudguard | Includes 26 - 27.
703500148
Unavailable
RH front mudguard
703500149
Unavailable
27
LH FRONT REFLECTOR - Call your local BRP dealership
705000083
Unavailable
RH FRONT REFLECTOR - Call your local BRP dealership
705000026
Unavailable
28
Hex. Screw M6 X 20 | XT Models
207162044
Unavailable
29
Flat Washer
224060201
Unavailable
30
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
31
LH TANK PROTECTOR - Call your local BRP dealership
705000133
Unavailable
RH TANK PROTECTOR - Call your local BRP dealership
705000134
Unavailable
32
Hex. Flange Screw M6 X 16
210261650
Unavailable
33
Flat Washer
224061201
Unavailable
34
Protector plate
705000340
Unavailable
35
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
36
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
37
Hex. Flange Screw M10 X 25
207602544
Unavailable
38
Hex. Flange Elastic Nut M10
233201414
Unavailable
39
Motor Protector
705000308
Unavailable
40
Rubber Protector
293830092
Unavailable
41
Rubber Strip
293830012
Unavailable
42
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
43
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
44
Tuflock Phillips Plastic Screw
414745900
Unavailable
45
Rubber Cover
570041600
Unavailable
46
Bracket, Black
705000311
Unavailable
47
Hex. Forming Screw M6 X 10
210261050
Unavailable
48
LH Rear Grill, Black
705000367
Unavailable
49
RH Rear Grill, Black
705000366
Unavailable
50
LH Front Grill
705000368
Unavailable
51
Edge Clip
517302785
Unavailable
