07- Steering System

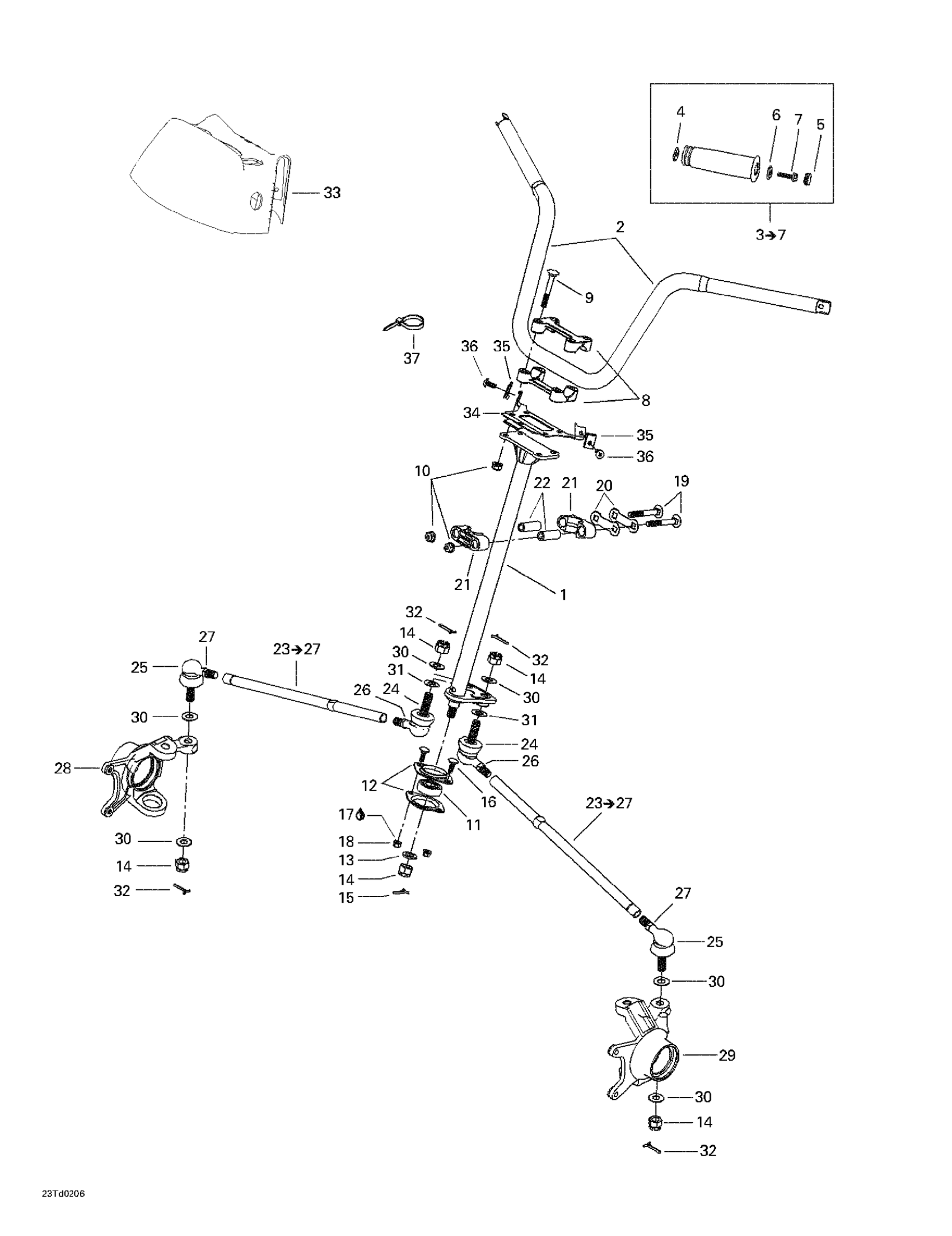

Can-Am Quest, Green/vert, 2002 07- Steering System Diagram
#
1
Main Tube, Black
709400089
Unavailable
2
Handlebar
709400005
Unavailable
3
HANDLE GRIP KIT, BLACK - Call your local BRP dealership
295500691
Unavailable
4
Not Available As Spare Part - Friction Washer
Unavailable
5
Black, Cap
277000203
Unavailable
6
Flat Washer M6, Stainless
234062600
Unavailable
7
Hex. Screw M6 X 30, Scotch Grip
250000002
Unavailable
8
Steering Clamp
709400028
Unavailable
9
CARRIAGE BOLT M8 X 65 - Call your local BRP dealership
207786544
Unavailable
10
Hex. Flange Elastic Nut M8
233281414
Unavailable
11
Ball Bearing
709400439
Unavailable
12
FLANGE, BEARING - Call your local BRP dealership
709400152
Unavailable
13
Flat Washer 12 mm
234021410
Unavailable
14
Hex. Castellated Nut M12
232221414
Unavailable
15
Cotter Pin
211400017
Unavailable
16
Carriage Bolt M6 X 25
207762544
Unavailable
17
Loctite 243, 10 ml
293800060
Unavailable
18
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
19
Carriage Bolt M8 X 70
207787044
Unavailable
20
Stopper Plate
506150600
Unavailable
21
HALF-HOUSING - Call your local BRP dealership
709400034
Unavailable
22
Housing Bushing
506150500
Unavailable
23
ROD-TIE ASS'Y - Call your local BRP dealership
709400489
Unavailable
24
RH Ball Joint
709402302
Unavailable
25
LH Ball Joint
709402303
Unavailable
26
Nut Hexagonal RH.
232026414
Unavailable
27
LH HEX. JAM NUT M12 - Call your local BRP dealership
732610020
Unavailable
28
RH Knuckle
709400095
Unavailable
29
LH KNUCKLE - Call your local BRP dealership
709400097
Unavailable
30
Hardened Washer
706200281
Unavailable
31
Washer
503189276
Unavailable
32
Cotter Pin
211400013
Unavailable
33
Steering Cover
709400134
Unavailable
34
Cover Support, Black | 7415/7416. 7417/7418.
709400077
Unavailable
35
Speednut M6
211100050
Unavailable
36
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
37
Tie-Rap 180 mm
414115200
Unavailable
