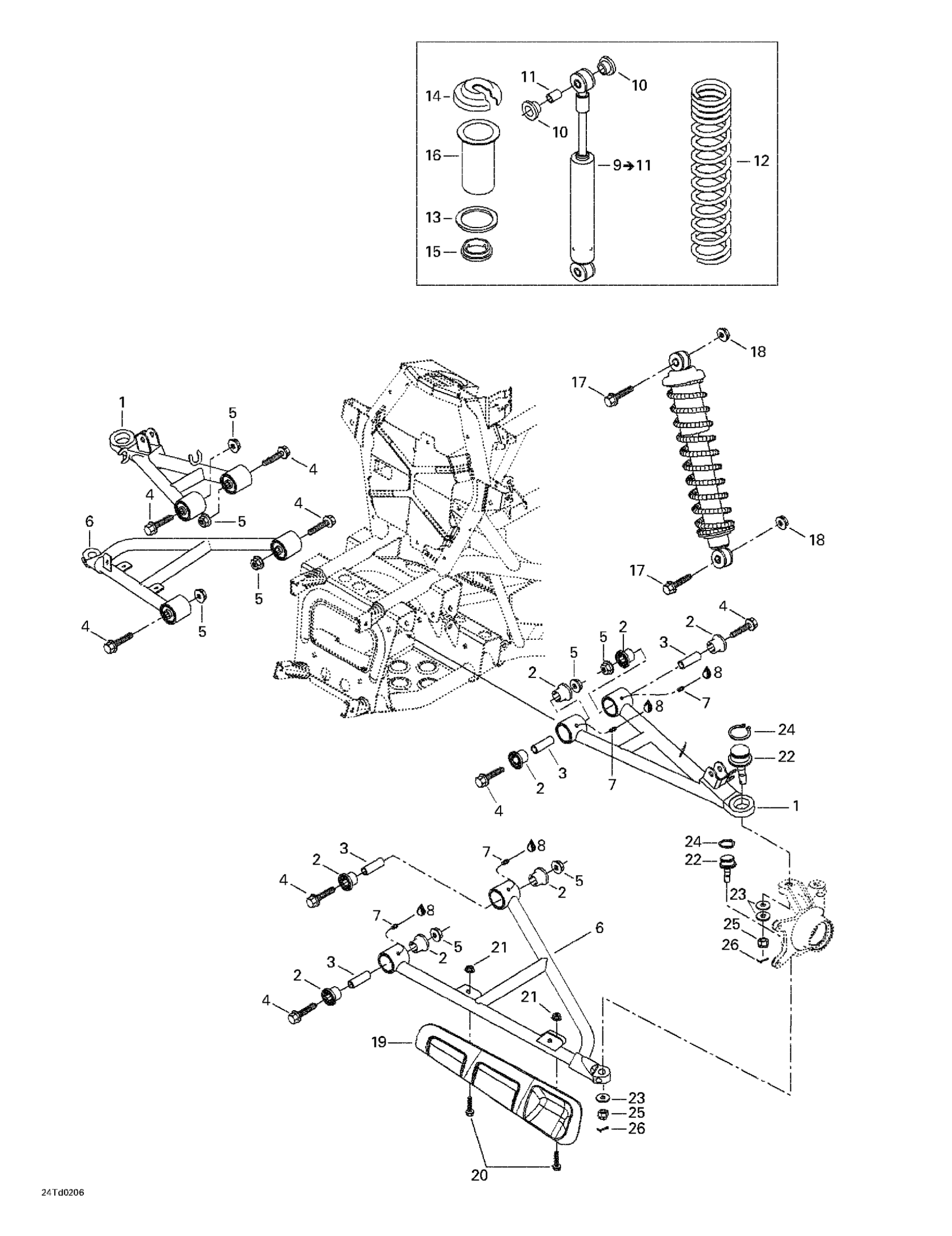

Can-Am Quest, Green/vert, 2002 07- Front Suspension Diagram

#

Description
Price

1

RH UPPER ARM - Call your local BRP dealership

706200187

Unavailable

LH upper arm

706200193

Unavailable

2

Bushing

706200181

Unavailable

3

Sleeve

706201587

Unavailable

4

Hex. Flange Screw M10 X 70

207607046

Unavailable

5

Hex. Flange Elastic Nut M10

233201436

Unavailable

6

RH LOWER ARM - Call your local BRP dealership | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

706200196

Unavailable

LH LOWER ARM - Call your local BRP dealership | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)

706200200

Unavailable

7

Grease Fitting

408200700

Unavailable

8

Synthetic Grease, 400 G

293550010

Unavailable

9

Front shock | Includes 9 - 11.

706200221

Unavailable

10

CUSHION - Call your local BRP dealership

706200185

Unavailable

11

BUSHING - Call your local BRP dealership

706200186

Unavailable

12

FRONT SPRING - Call your local BRP dealership

706200006

Unavailable

13

SPRING SEAT - Call your local BRP dealership

706000533

Unavailable

14

Spring Stopper

706200881

Unavailable

15

Spring seat

706000007

Unavailable

16

PROTECTOR - Call your local BRP dealership

503139800

Unavailable

17

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

207604544

Unavailable

18

Hex. Flange Elastic Nut M10

233201414

Unavailable

19

RH ARM PROTECTOR - Call your local BRP dealership

706200179

Unavailable

LH ARM PROTECTOR - Call your local BRP dealership

706200180

Unavailable

20

Hex. Flange Screw M6 X 16

207661644

Unavailable

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

22

Ball Joint

706200653

Unavailable

23

Hardened Washer

706200281

Unavailable

24

Circlip 32 mm

293370009

Unavailable

25

Hex. Castellated Nut M12

232221414

Unavailable

26

Cotter Pin

211400017

Unavailable
