- Quest, Green/vert, 2002
06- Hydraulic Front Brake

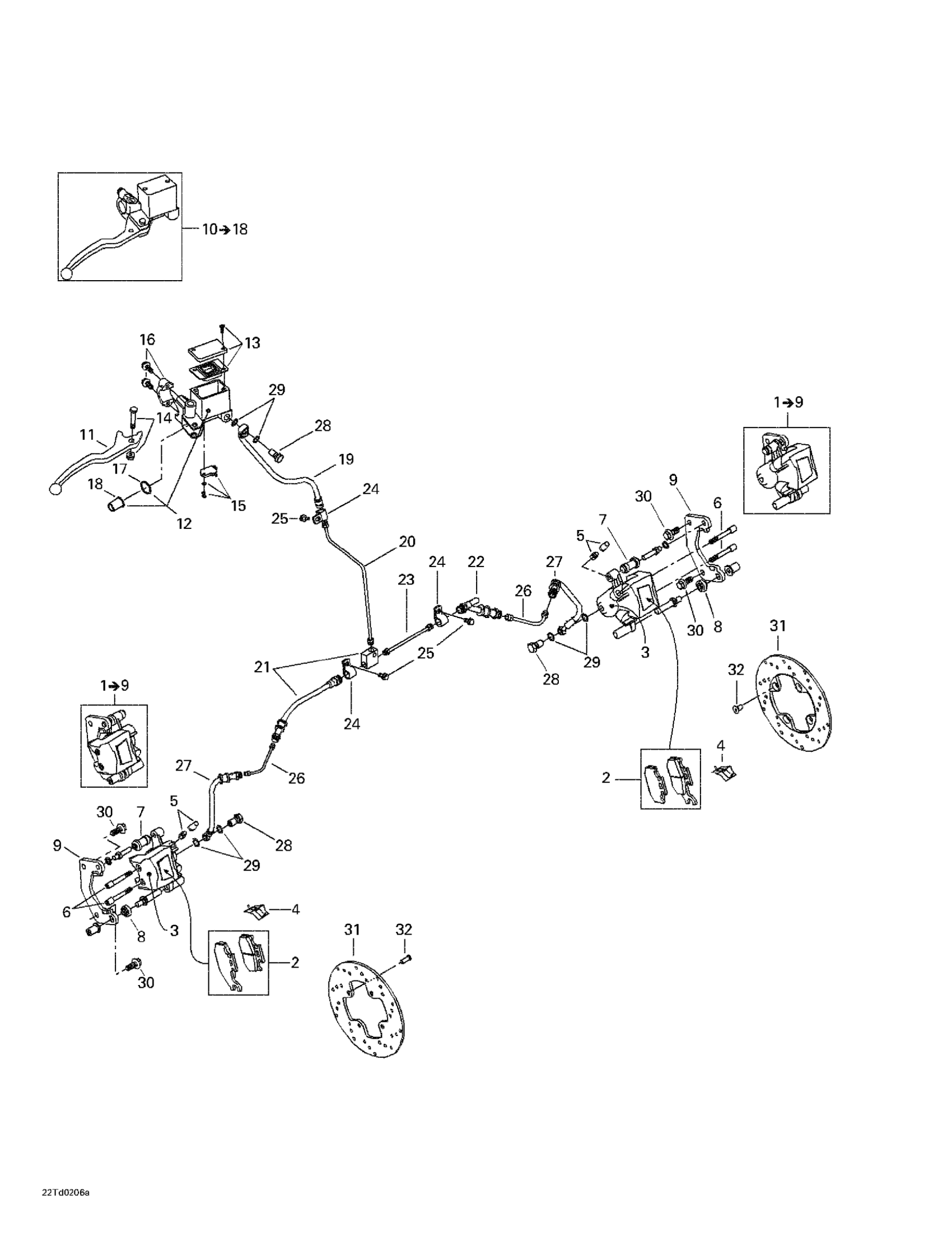

Can-Am Quest, Green/vert, 2002 06- Hydraulic Front Brake Diagram
#
1
RH Caliper | Includes 1 To 9
705600118
Unavailable
LH Caliper | Includes 10 To 18
705600119
Unavailable
2
Brake Pad Kit
705600004
Unavailable
Brake Pad Kit
705600014
Unavailable
3
Piston Set
705600078
Unavailable
4
Spring
705600079
Unavailable
5
Bleeding Screw
705600080
Unavailable
6
Pin Set (2)
705600081
Unavailable
7
Compression Boot
705600082
Unavailable
8
Compression Boot
705600083
Unavailable
9
Lining Support
705600149
Unavailable
10
FRONT MASTER CYLINDER - Call your local BRP dealership | Includes 19 To 27
705600120
Unavailable
11
LEVER ARM - Call your local BRP dealership
705600164
Unavailable
12
PISTON KIT - Call your local BRP dealership
705600152
Unavailable
13
Cap Set
705600084
Unavailable
14
BOLT KIT - Call your local BRP dealership
705600085
Unavailable
15
SWITCH KIT - Call your local BRP dealership
705600148
Unavailable
16
BRACKET KIT - Call your local BRP dealership
705600087
Unavailable
17
CIRCLIP - Call your local BRP dealership
705600088
Unavailable
18
COMPRESSION BOOT - Call your local BRP dealership
705600089
Unavailable
19
HANDLE BRAKE HOSE - Call your local BRP dealership
705600165
Unavailable
20
Vertical tube
705600036
Unavailable
21
RH flexible hose
705600174
Unavailable
22
LH flexible hose
705600175
Unavailable
23
Horizontal tube
705600038
Unavailable
24
Hose Retainer 13 mm
705600232
Unavailable
25
Hex. Flange Screw M6 X 16
210261650
Unavailable
26
Rigid tube
705600176
Unavailable
27
BRAKE LINE - Call your local BRP dealership
705601394
Unavailable
28
Banjo Bolt (M10 x 1.25 thread)
705600609
Unavailable
29
Washer
414920600
Unavailable
30
Hex. Screw M10 X 20, Scotch Grip
250000057
Unavailable
31
Brake disc 205 mm
705600168
Unavailable
32
Torx Screw M8 X 16, Scotch Grip
235381646
Unavailable
