- Quest, Green/vert, 2002
02- Fuel Tank

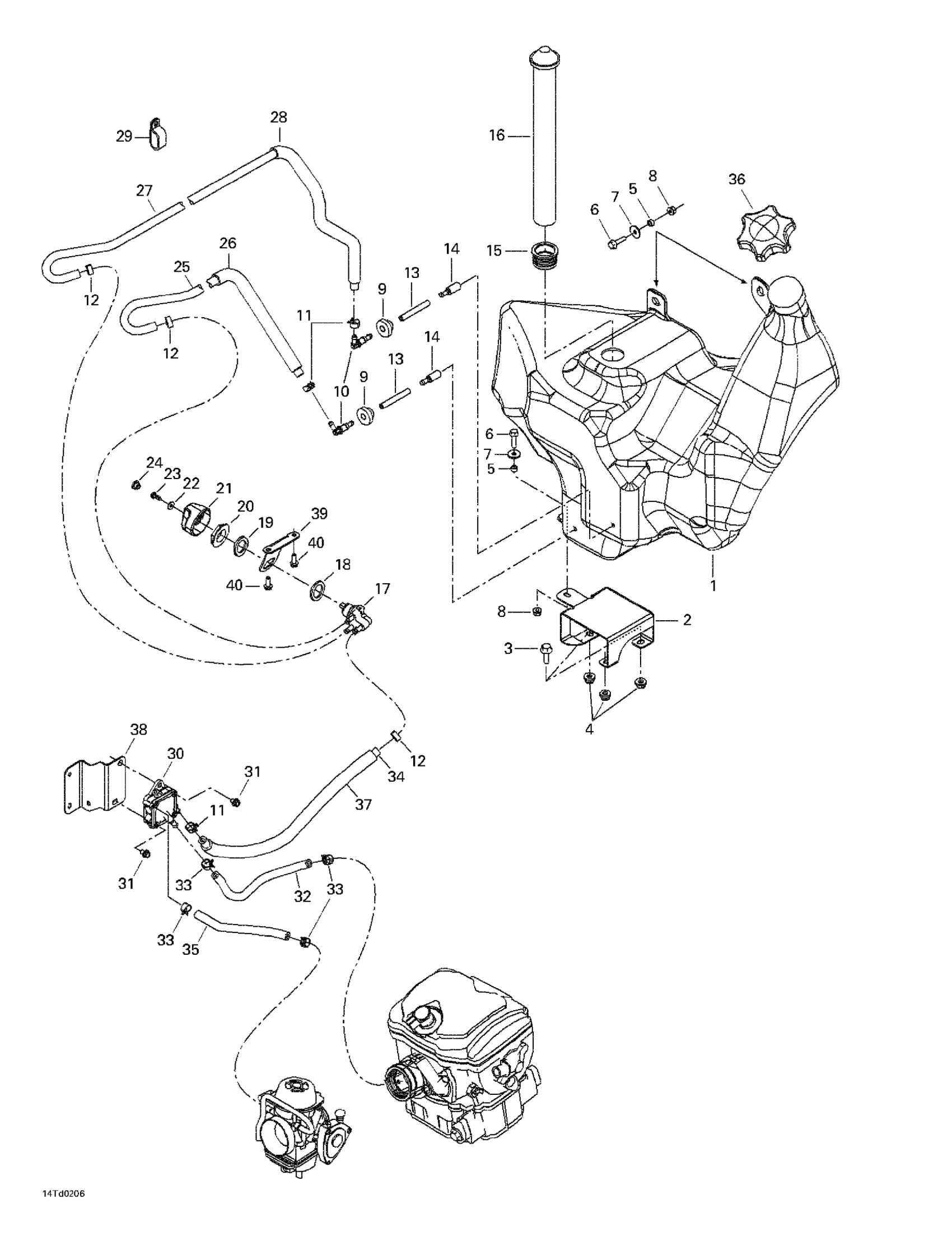

Can-Am Quest, Green/vert, 2002 02- Fuel Tank Diagram
#
1
Fuel Tank
709000035
Unavailable
2
Fuel Tank Support, Black
709000039
Unavailable
3
Hex. Flange Screw M8 X 20
207682044
Unavailable
4
Hex. Flange Elastic Nut M8
233281414
Unavailable
5
Bushing | DS 650 X
293900104
Unavailable
6
Hex. Flange Screw M6 X 25
207662544
Unavailable
7
Flat Washer
224061201
Unavailable
8
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
9
Grommet
570045500
Unavailable
10
Elbow Male Connector
414580600
Unavailable
11
Spring Clamp
414415200
Unavailable
12
Oetiker Clamp
293650042
Unavailable
13
Polyurethane Hose 10000Mm Long
219704410
Unavailable
14
Fuel Filter
414865700
Unavailable
15
Grommet
293720058
Unavailable
16
Fuel gauge
709000033
Unavailable
17
Fuel Valve
275500098
Unavailable
18
GASKET - Call your local BRP dealership
293250004
Unavailable
19
Washer
250200015
Unavailable
20
HEX. PLASTIC NUT - Call your local BRP dealership
212100009
Unavailable
21
FUEL VALVE KNOB, BLACK - Call your local BRP dealership
275500263
Unavailable
22
Flat Washer 4 mm
234040600
Unavailable
23
PHILLIPS SCREW M4 X 8 - Call your local BRP dealership
208640860
Unavailable
24
Black, Cap
275500241
Unavailable
25
Formed Hose
709000055
Unavailable
26
Was 409901800 Tubing (13 mm)
219704400
Unavailable
27
Formed Hose
709000056
Unavailable
28
Was 409901800 Tubing (13 mm)
219704400
Unavailable
29
Open Clamp
709000057
Unavailable
30
FUEL PUMP - Call your local BRP dealership
707200000
Unavailable
31
Hex. Flange Screw M6 X 10
210261040
Unavailable
32
FORMED HOSE - Call your local BRP dealership
709000047
Unavailable
33
Spring Clamp
414415200
Unavailable
34
Hose
219704549
Unavailable
35
Hose
219704549
Unavailable
36
FUEL CAP - Call your local BRP dealership
709000059
Unavailable
37
Was 409901800 Tubing (13 mm)
219704400
Unavailable
38
Pump Support
709000040
Unavailable
39
Valve Support
709000042
Unavailable
40
Hex. Flange Screw M6 X 16
210261650
Unavailable
