Description

Price

1

TUNED PIPE - Call your local BRP dealership

707600084

Unavailable

2

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

Unavailable

3

Exhaust Support

707600131

Unavailable

4

Heat Shield Black

707600167

Unavailable

5

Heat Shield Black

707600168

Unavailable

6

HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership

250000073

Unavailable

7

Pipe Gasket

707600164

Unavailable

8

Exhaust Clamp

707600165

Unavailable

9

Tuned Pipe

707600130

Unavailable

10

Anti-Vibration Rubber

707600702

Unavailable

11

Heat Shield

707600076

Unavailable

12

Hex. Flange Screw M6 X 10

210261040

Unavailable

13

SPRING - Call your local BRP dealership

707600177

Unavailable

14

Hex. Flange Screw M6 X 16

207661646

Unavailable

15

Hex. Flange Nut M6

233061414

Unavailable

16

Flat Washer

224060201

Unavailable

17

Flat Washer 8 mm

234082410

Unavailable

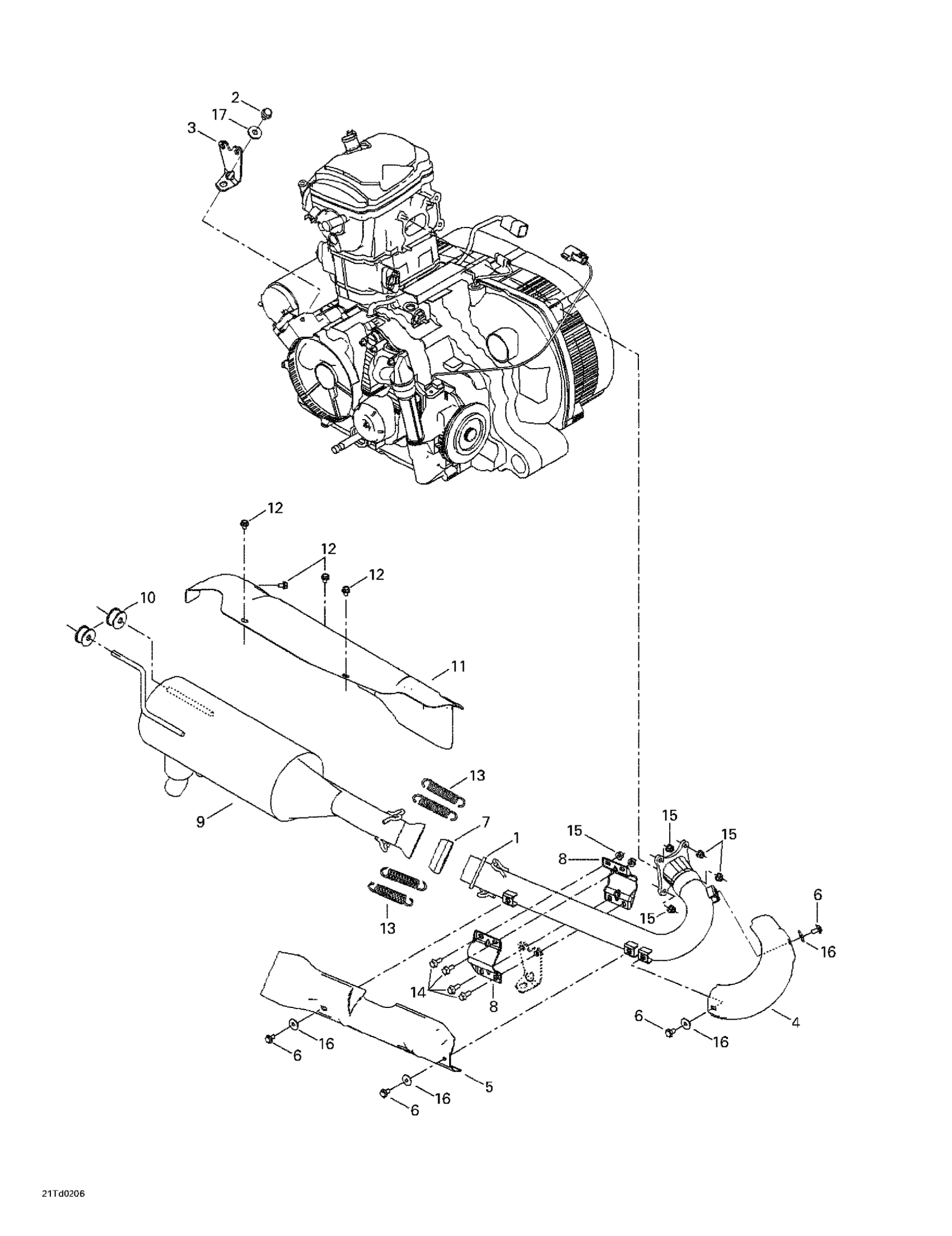

Can-Am Quest, Green/vert, 2002 01- Exhaust System Diagram

TUNED PIPE - Call your local BRP dealership

Hex. Flange Screw M8 X 16, Scotch Grip

Exhaust Support

Heat Shield Black

Heat Shield Black

HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership

Pipe Gasket

Exhaust Clamp

Tuned Pipe

Anti-Vibration Rubber

Heat Shield

Hex. Flange Screw M6 X 10

SPRING - Call your local BRP dealership

Hex. Flange Screw M6 X 16

Hex. Flange Nut M6

Flat Washer

Flat Washer 8 mm
