09- Body And Accessories, Front View

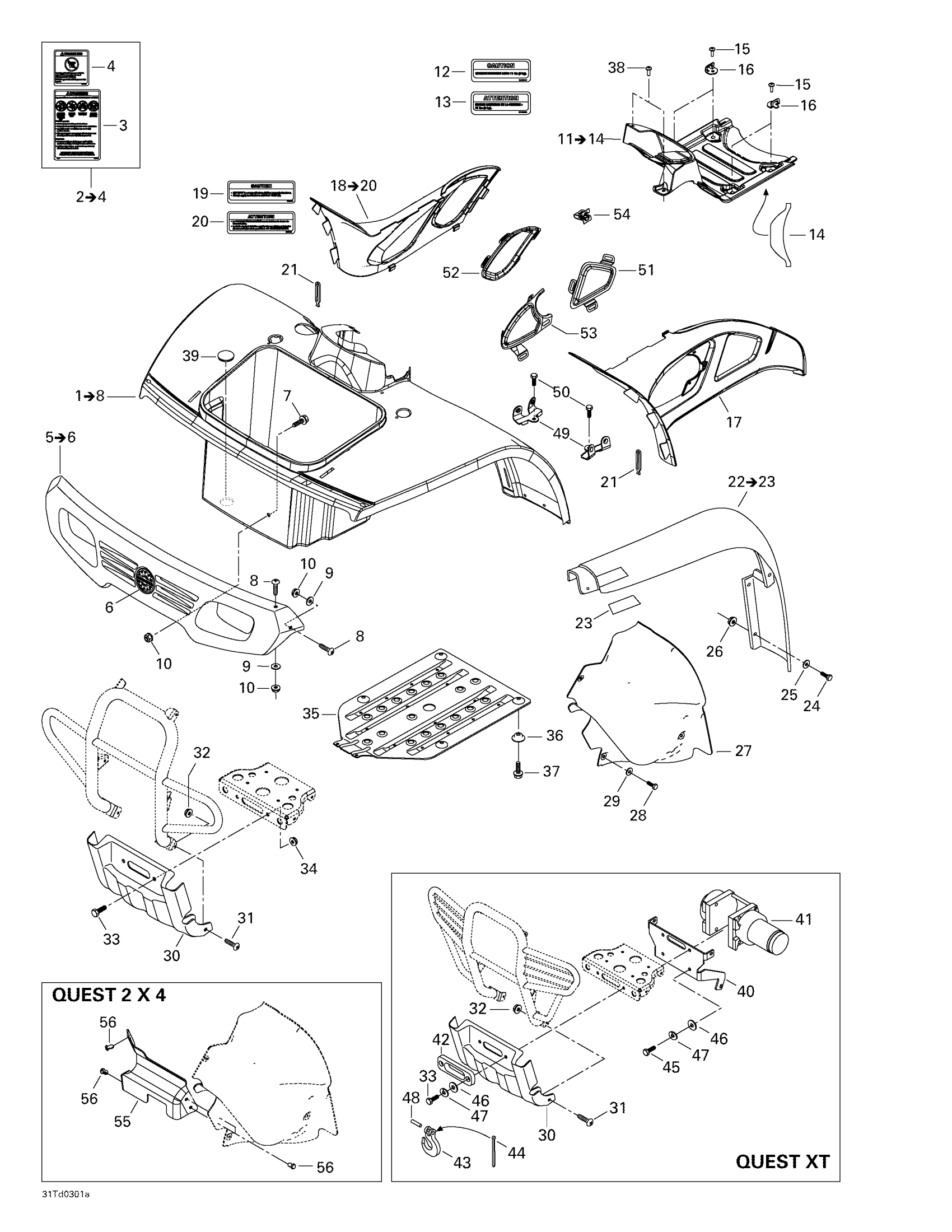

Can-Am Quest 650, 2003 09- Body And Accessories, Front View Diagram
#
1
Front fender kit | Includes 1 - 8. XT YELLOW Quest XT 650.
703500235
Unavailable
Front fender kit | STD GREEN Quest STD 500. Quest STD 650.
703500239
Unavailable
Front fender kit | BLUE Quest STD 500. Quest STD 650.
703500247
Unavailable
Front fender kit | RED Quest STD 500. Quest STD 650.
703500229
Unavailable
Front fender kit | STD CAMO Quest STD 500. Quest STD 650.
703500233
Unavailable
Front fender kit | XT CAMO Quest XT 650.
703500231
Unavailable
Front fender kit | STD YELLOW Quest STD 500. Quest STD 650.
703500237
Unavailable
Front fender kit | XT GREEN Quest XT 650.
703500245
Unavailable
2
Warning Label | Includes 9 - 10.
704900034
Unavailable
3
Warning Decal, Death And Injuries
704900002
Unavailable
4
Warning Decal, Under 16 Years Old | French Version
704900012
Unavailable
5
Front fascia | Includes 9 - 10.
703500152
Unavailable
Front fascia | CAMO
705000594
Unavailable
6
BRP Logo 68mm
516008739
Unavailable
7
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
8
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
8
Flat Washer
224060201
Unavailable
10
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
11
Dash-board ass'y | Includes 11 - 14. BLUE Quest STD 500. Quest STD 650.
703500182
Unavailable
Dash-board ass'y | GREEN
703500183
Unavailable
Dash-board ass'y | RED Quest STD 500. Quest STD 650.
703500184
Unavailable
Dash-board ass'y | YELLOW
703500185
Unavailable
Dash-board ass'y | CAMO
703500209
Unavailable
12
CAUTION DECAL, CONSOLE LOAD - Call your local BRP dealership | English Version
704900247
Unavailable
13
Caution Decal, Console Load | French Version
704900250
Unavailable
14
Reflective Sheet
705000541
Unavailable
15
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
16
HOOK, BLACK - Call your local BRP dealership
705000369
Unavailable
17
LH cover | Quest (Blue/Bleu).
705000203
Unavailable
LH cover | Quest (Green/Vert).
705000334
Unavailable
LH Panel, yellow | Yellow
705000405
Unavailable
LH Panel, red | Viper Red
705000570
Unavailable
LH cover | CAMO
705000625
Unavailable
18
RH cover | Quest (Green/Vert).
703500155
Unavailable
RH Panel, Red | RED Quest STD 500. Quest STD 650.
703500223
Unavailable
RH panel | (English Warn Labels Installed) Quest XT.
703500156
Unavailable
RH cover | CAMO
703500225
Unavailable
RH cover | Includes 22 - 24. Quest (Blue/Bleu).
703500154
Unavailable
19
Caution Decal, Lever And 4wd Switch | English Version
704900434
Unavailable
20
Caution Decal, Transmission Selector | French version
704900008
Unavailable
21
Windshield Latch
570023800
Unavailable
22
LH front mudguard | Includes 26 - 27.
703500148
Unavailable
LH front mudguard | CAMO
703500211
Unavailable
RH front mudguard
703500149
Unavailable
RH front mudguard | CAMO
703500212
Unavailable
23
LH FRONT REFLECTOR - Call your local BRP dealership
705000083
Unavailable
RH FRONT REFLECTOR - Call your local BRP dealership
705000026
Unavailable
24
Hex. Screw M6 X 20 | XT Models
207162044
Unavailable
25
Flat Washer
224060201
Unavailable
26
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
27
LH TANK PROTECTOR - Call your local BRP dealership
705000133
Unavailable
LH protector | 2 X 4 Quest STD 500. Quest STD 650.
705000533
Unavailable
RH TANK PROTECTOR - Call your local BRP dealership
705000134
Unavailable
RH protector | 2 X 4 Quest STD 500. Quest STD 650.
705000534
Unavailable
28
Hex. Flange Screw M6 X 16
210261650
Unavailable
29
Flat Washer
224061201
Unavailable
30
Protector plate
705000340
Unavailable
Protector plate | CAMO
705000601
Unavailable
31
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650
250000080
Unavailable
32
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
33
Hex. Flange Screw M10 X 25
207602544
Unavailable
Socket Screw 5/16-18 X 1 1/2" | Traxter 5 Speed XT
250000042
Unavailable
34
Hex. Flange Elastic Nut M10
233201414
Unavailable
35
SKID PLATE - Call your local BRP dealership
705200536
Unavailable
36
CUP - Call your local BRP dealership
705200533
Unavailable
37
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
38
Tuflock Phillips Plastic Screw
414745900
Unavailable
39
Rubber Cover
570041600
Unavailable
40
Mouting plate | 7423/7424 (XT-Yellow/Jaune).
705000184
Unavailable
41
WINCH - Call your local BRP dealership | 7423/7424 (XT-Yellow/Jaune).
705000185
Unavailable
42
CABLE GUIDE - Call your local BRP dealership
705000194
Unavailable
43
Winch Hook Kit
705014949
Unavailable
44
Cotter Pin
250400022
Unavailable
45
SOCKET SCREW 5/16-18 X 1 - Call your local BRP dealership
250000041
Unavailable
46
Flat Washer 8 mm
234081410
Unavailable
47
Lock Washer 8 mm
234181401
Unavailable
48
Clevis Pin
250400021
Unavailable
49
Bracket, Black
705000311
Unavailable
50
Hex. Forming Screw M6 X 10
210261050
Unavailable
51
LH Rear Grill, Black
705000367
Unavailable
52
RH Rear Grill, Black
705000366
Unavailable
53
LH Front Grill
705000368
Unavailable
54
Edge Clip
517302785
Unavailable
55
Protector | 2 X 4 Quest STD 500. Quest STD 650.
705000408
Unavailable
56
Tuflok Plastic Rivet
293150230
Unavailable
