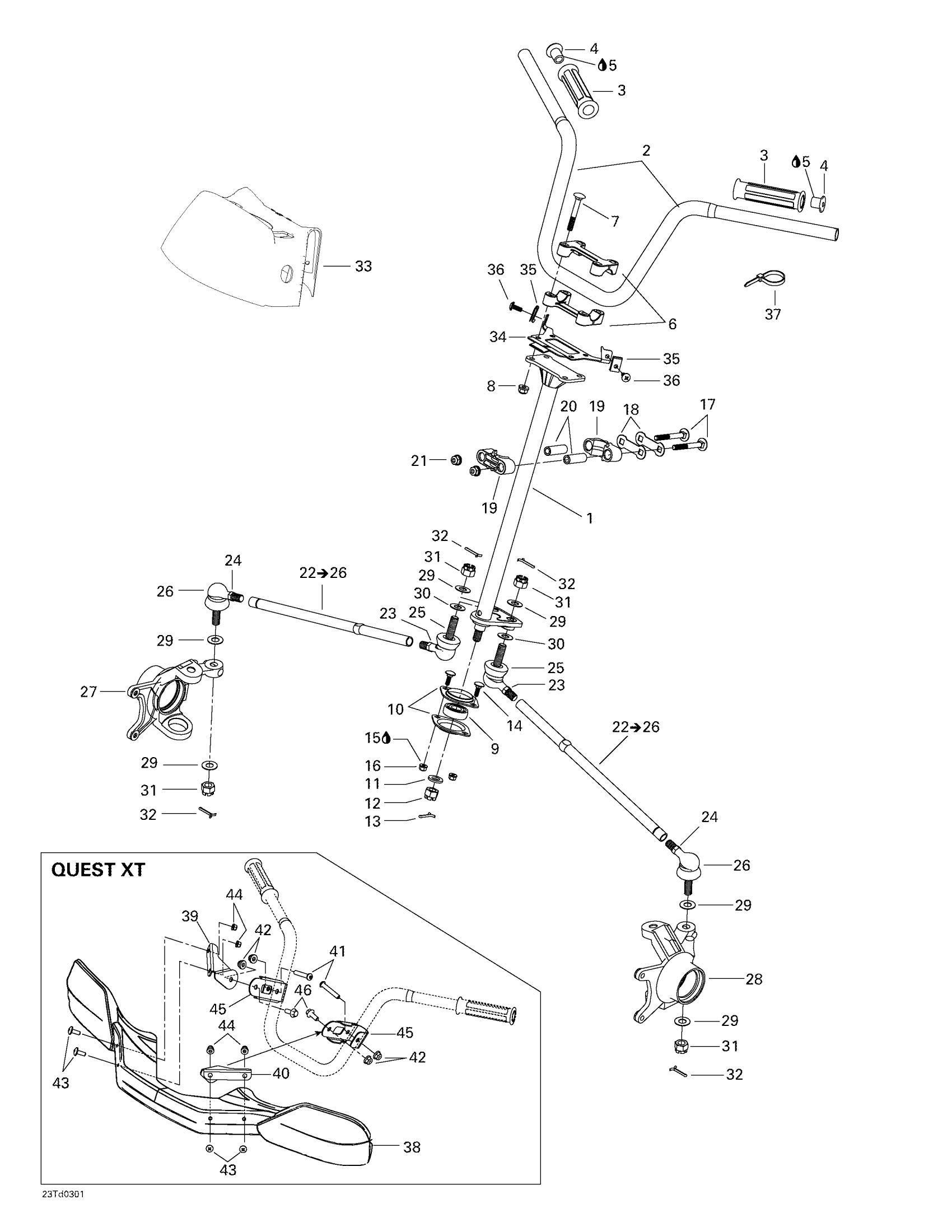

Can-Am Quest 650, 2003 07- Steering System Diagram

#

Description
Price

1

Main Tube, Black

709400089

Unavailable

2

HANDLE BAR - Call your local BRP dealership

709400199

Unavailable

3

Handle Grip

709400493

Unavailable

4

END-PIECE - Call your local BRP dealership | DS 650

709400189

Unavailable

5

Loctite 406, 7 Oz

293800100

Unavailable

6

Steering Clamp

709400028

Unavailable

7

CARRIAGE BOLT M8 X 65 - Call your local BRP dealership

207786544

Unavailable

8

Hex. Flange Elastic Nut M8

233281414

Unavailable

9

Ball Bearing

709400439

Unavailable

10

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

11

Flat Washer 12 mm

234021410

Unavailable

12

Hex. Castellated Nut M12

232221414

Unavailable

13

Cotter Pin

211400017

Unavailable

14

Carriage Bolt M6 X 25

207762544

Unavailable

15

Loctite 243, 10 ml

293800060

Unavailable

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

17

Carriage Bolt M8 X 70

207787044

Unavailable

18

Stopper Plate

506150600

Unavailable

19

HALF-HOUSING - Call your local BRP dealership

709400034

Unavailable

20

Housing Bushing

506150500

Unavailable

21

Hex. Flange Elastic Nut M8

233281414

Unavailable

22

ROD-TIE ASS'Y - Call your local BRP dealership

709400489

Unavailable

23

Nut Hexagonal RH.

232026414

Unavailable

24

LH HEX. JAM NUT M12 - Call your local BRP dealership

732610020

Unavailable

25

RH Ball Joint

709402302

Unavailable

26

LH Ball Joint

709402303

Unavailable

27

RH Knuckle

709400095

Unavailable

28

LH KNUCKLE - Call your local BRP dealership

709400097

Unavailable

29

Hardened Washer

706200281

Unavailable

30

Washer

503189276

Unavailable

31

Hex. Castellated Nut M12

232221414

Unavailable

32

Cotter Pin

211400013

Unavailable

33

Steering cover (black) | Includes 28 - 9.

703500019

Unavailable

Steering cover (grey) | CAMO

703500205

Unavailable

34

Cover Support, Black | 7415/7416. 7417/7418.

709400077

Unavailable

35

Speednut M6

211100050

Unavailable

36

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

37

Tie-Rap 180 mm

414115200

Unavailable

38

Hand Protector | 7423/7424 (XT-Yellow/Jaune).

705000183

Unavailable

39

RH Support | Traxter XT.

709400116

Unavailable

40

LH Support | Traxter XT.

709400117

Unavailable

41

Socket Head Screw M8 X 45 | Traxter XT.

205484546

Unavailable

42

Hex. Flange Elastic Nut M8

233281414

Unavailable

43

PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership | DS 650

250000080

Unavailable

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

45

U Shaped Bracket

709400118

Unavailable

46

Hex. Flange Screw M8 X 20

207682044

Unavailable
