05- Gear Shift

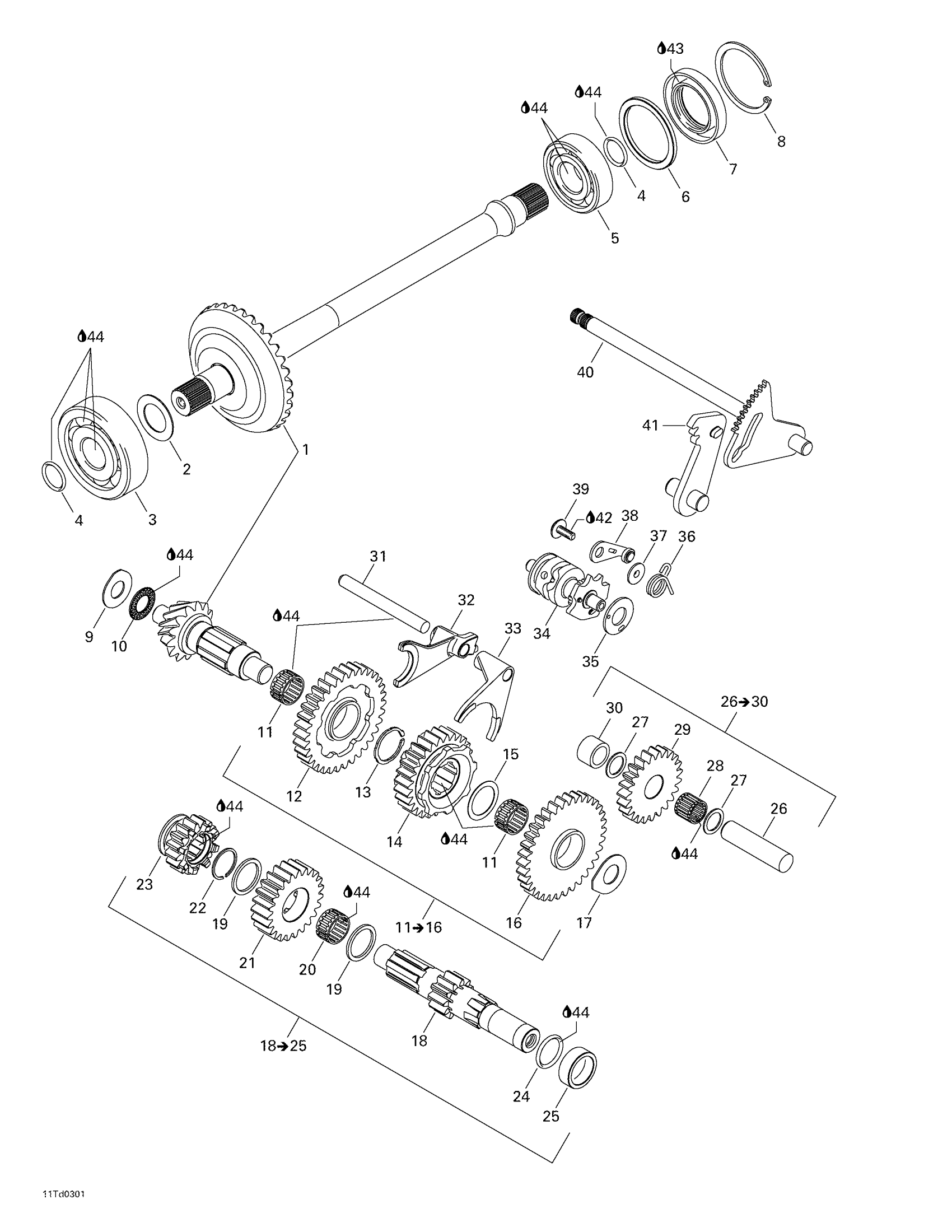

Can-Am Quest 650, 2003 05- Gear Shift Diagram
#
1
Bevel Gear Ass'y
711296530
Unavailable
2
Washer Thrust Set
420281300
Unavailable
3
Ball Bearing 6405
420632280
Unavailable
4
O-Ring
420430373
Unavailable
5
Ball Bearing
420932822
Unavailable
6
Distance Ring
711247090
Unavailable
7
Oil Seal
420650682
Unavailable
8
RETAINING RING - Call your local BRP dealership
711445070
Unavailable
9
Thrust Washer Set, MAG Side
420281306
Unavailable
10
Axial Needle Bearing
420632300
Unavailable
11
Gearwheel Set | Includes 11 - 16.
711281282
Unavailable
Gearwheel Set | Includes 11 - 17.
711281280
Unavailable
11
Needle Bearing
420632070
Unavailable
12
Not Available As Spare Part - Friction Washer
Unavailable
13
Retaining Ring
420245850
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
17
Thrust Washer Set, CVT Side
420281302
Unavailable
18
Countershaft Ass'y (11 Teeth) | Includes 18 - 25.
711220978
Unavailable
Countershaft Ass'y (11 Teeth) | Includes 19 - 27.
711220976
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
Needle Bearing
420632070
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
Circlip
420445302
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
24
O-Ring
420630040
Unavailable
25
Distance Ring
711247110
Unavailable
26
Idle Gear Shaft | Includes 26 - 30.
711229605
Unavailable
26
Needle Pin
420229600
Unavailable
27
Thrust Washer
711944190
Unavailable
28
Needle Cage
420432034
Unavailable
29
Internal Gear (23 teeth)
711635310
Unavailable
30
Distance Sleeve
711247120
Unavailable
31
Pin
420229540
Unavailable
32
Shift Fork
711257180
Unavailable
33
Shift Fork
711257230
Unavailable
34
Shift Drum
711257175
Unavailable
35
Isolating Washer
711227567
Unavailable
36
Index Spring
420239561
Unavailable
37
BUSHING - Call your local BRP dealership
420227710
Unavailable
38
INDEX LEVER KIT - Call your local BRP dealership
703500189
Unavailable
39
Torx Screw M6 X 16
420241529
Unavailable
40
Shift Shaft
711220806
Unavailable
41
Lock Lever | Quest 500.
711257158
Unavailable
Lock Lever
711257156
Unavailable
42
Loctite 243, 10 ml
293800060
Unavailable
43
Grease, Super Lube
293550030
Unavailable
44
Not Available As Spare Part - Friction Washer
Unavailable
