05- Belt And Engine Pulley

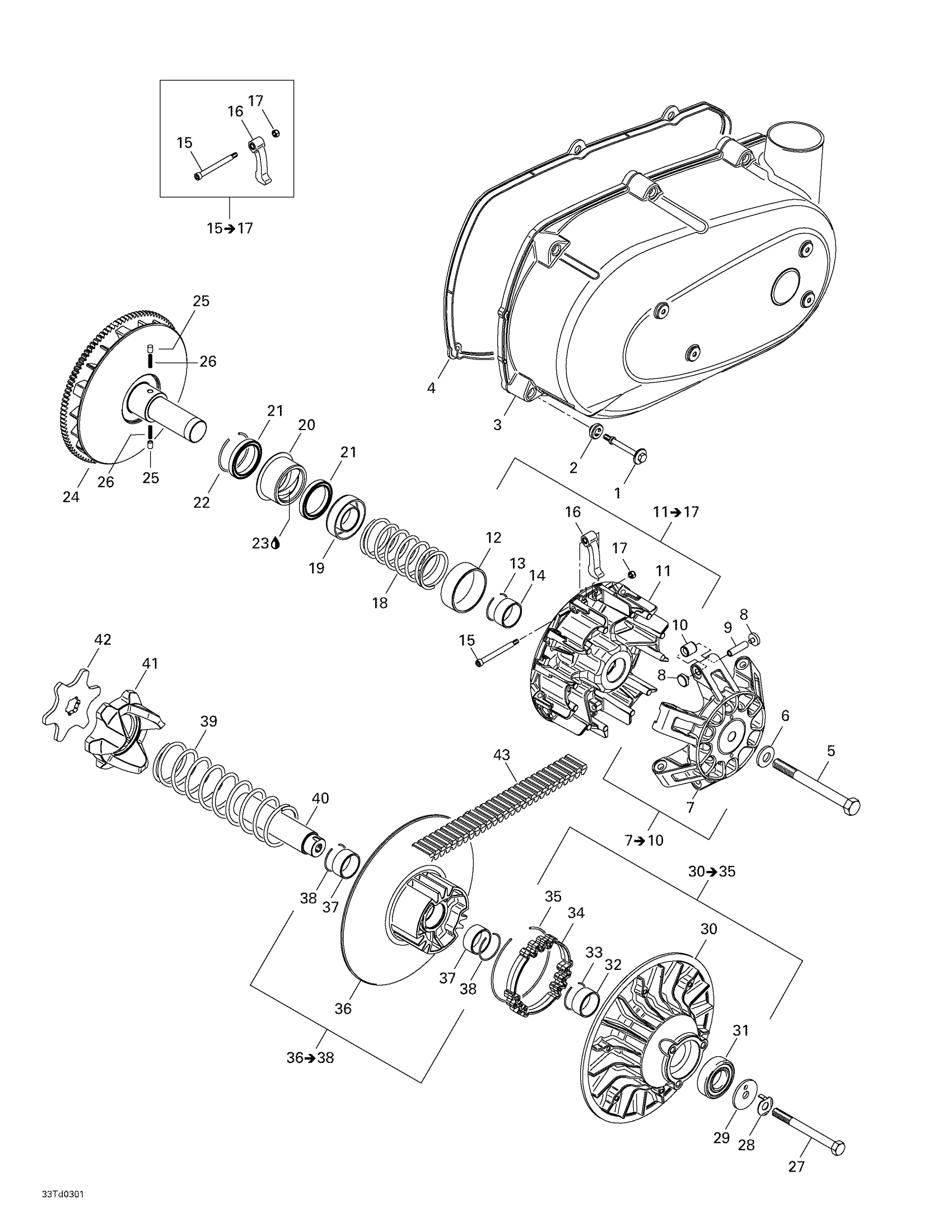

Can-Am Quest 650, 2003 05- Belt And Engine Pulley Diagram
#
1
DISTANCE SCREW M6 X 47.9 - Call your local BRP dealership
420240906
Unavailable
2
Rubber Bushing
711260050
Unavailable
3
Transmission Cover
711610350
Unavailable
4
Gasket
711630110
Unavailable
5
Hex. Screw M12 X 140
420641859
Unavailable
6
Spring Washer
420627760
Unavailable
7
Governor Cup Ass'y | Includes 6 to 9
420280522
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
Slider Shoe Set
420281296
Unavailable
9
Roller Axle
417223257
Unavailable
10
Roller
417223767
Unavailable
11
Outher Half Ass'y | Includes 11 - 17.
711280148
Unavailable
Outher Half Ass'y | Includes 12 - 17.
711280147
Unavailable
11
Not Available As Spare Part - Friction Washer
Unavailable
12
Not Available As Spare Part - Friction Washer
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
15
Centrifugal Lever Set | Includes 15 - 17.
711248431
Unavailable
Centrifugal Lever Set
711248408
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Compression Spring
420238166
Unavailable
19
Spring Seat
711627573
Unavailable
20
Drive Pulley Clutch
420257195
Unavailable
21
Ball Bearing
420632377
Unavailable
22
Retaining Ring
420245951
Unavailable
23
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
24
Inner Half Ass'y
420280163
Unavailable
25
Spring Sleeve
420229577
Unavailable
26
Spring
420239134
Unavailable
27
Hex. Screw M10 X 110
420441485
Unavailable
28
TAB WASHER - Call your local BRP dealership
420245925
Unavailable
29
Thrust Washer
420627590
Unavailable
30
Outer Half Pulley Ass'y | Includes 27 to 32
420280178
Unavailable
30
Not Available As Spare Part - Friction Washer
Unavailable
31
Ball Bearing
420932421
Unavailable
32
Not Available As Spare Part - Friction Washer
Unavailable
33
Not Available As Spare Part - Friction Washer
Unavailable
34
Torque Gear
711660120
Unavailable
35
Retaining Ring
420245911
Unavailable
36
Inner Half Ass'y | Includes 36 - 38.
711280186
Unavailable
36
Not Available As Spare Part - Friction Washer
Unavailable
37
Not Available As Spare Part - Friction Washer
Unavailable
38
Not Available As Spare Part - Friction Washer
Unavailable
39
Compression Spring, Driven Pulley
420238173
Unavailable
40
Driven Pulley Shaft
420220913
Unavailable
41
RAMP - Call your local BRP dealership
711280191
Unavailable
42
Cam Plate
420627586
Unavailable
43
V-belt | Traxter 650 CVT
715900023
Unavailable
44
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
