01- Engine

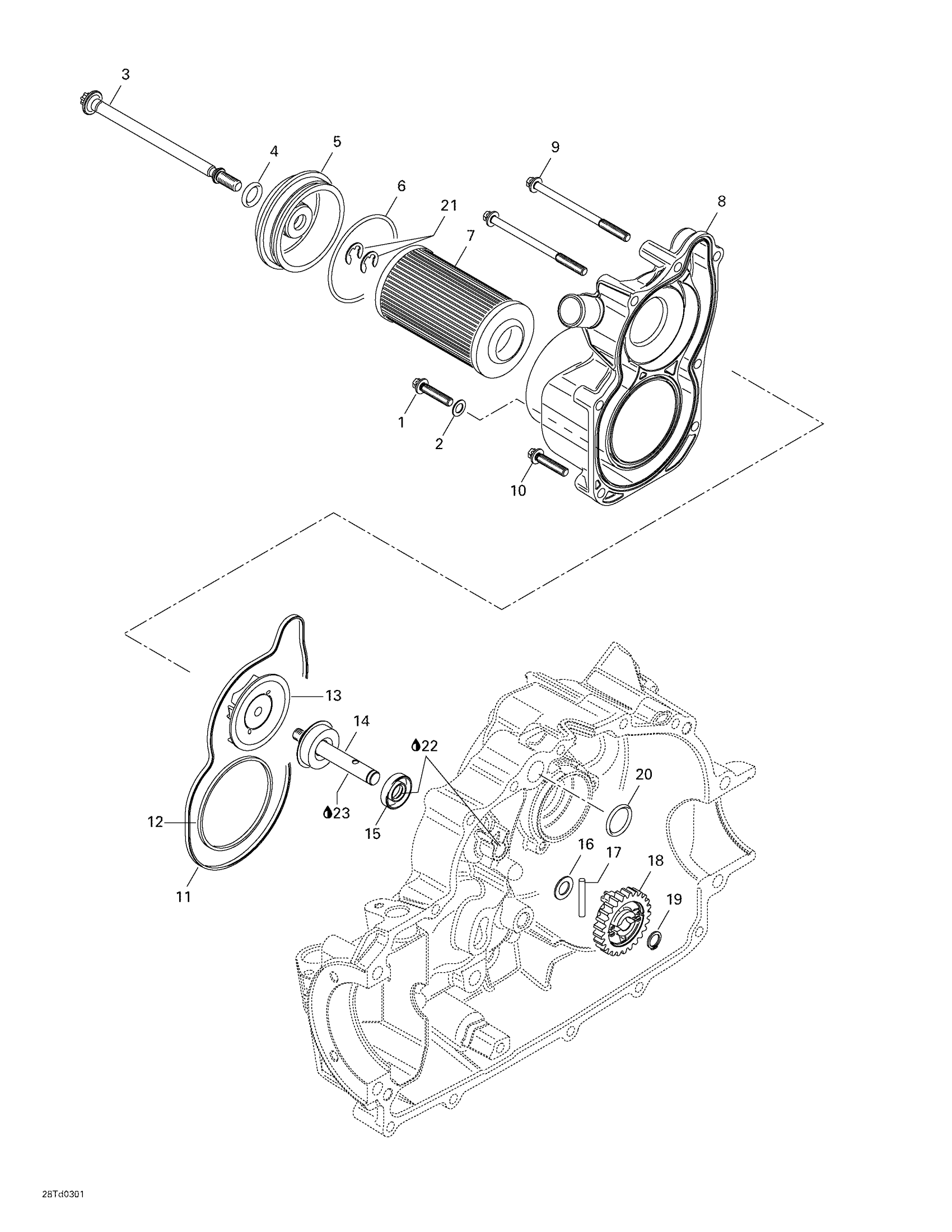

Can-Am Quest 650, 2003 01- Engine Diagram
#
Description
Price
1
Torx Flange Screw M6 X 35
420641258
Unavailable
2
Sealing Washer
404146600
Unavailable
3
Oil Filter Screw Kit
295501207
Unavailable
4
O-Ring
420950860
Unavailable
5
Oil Filter Cover
711610325
Unavailable
6
O-Ring
420230923
Unavailable
7
Oil Filter
420956741
Unavailable
8
Water Pump Housing
711222651
Unavailable
9
Torx Flange Screw M6 X 85
420641228
Unavailable
10
Torx Flange Screw M6 X 35
420641258
Unavailable
11
Gasket
711630100
Unavailable
12
Gasket
711630170
Unavailable
13
Water Impeller
711222540
Unavailable
14
Waterpump Shaft
711220827
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
Thrust Washer
420827590
Unavailable
17
Needle Pin
420232431
Unavailable
18
Idle Gear, 25 Teeth
420635191
Unavailable
19
Snap Ring
420245330
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
21
Retaining Ring
711845240
Unavailable
22
Grease, Super Lube
293550030
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
