01- Cylinder Head

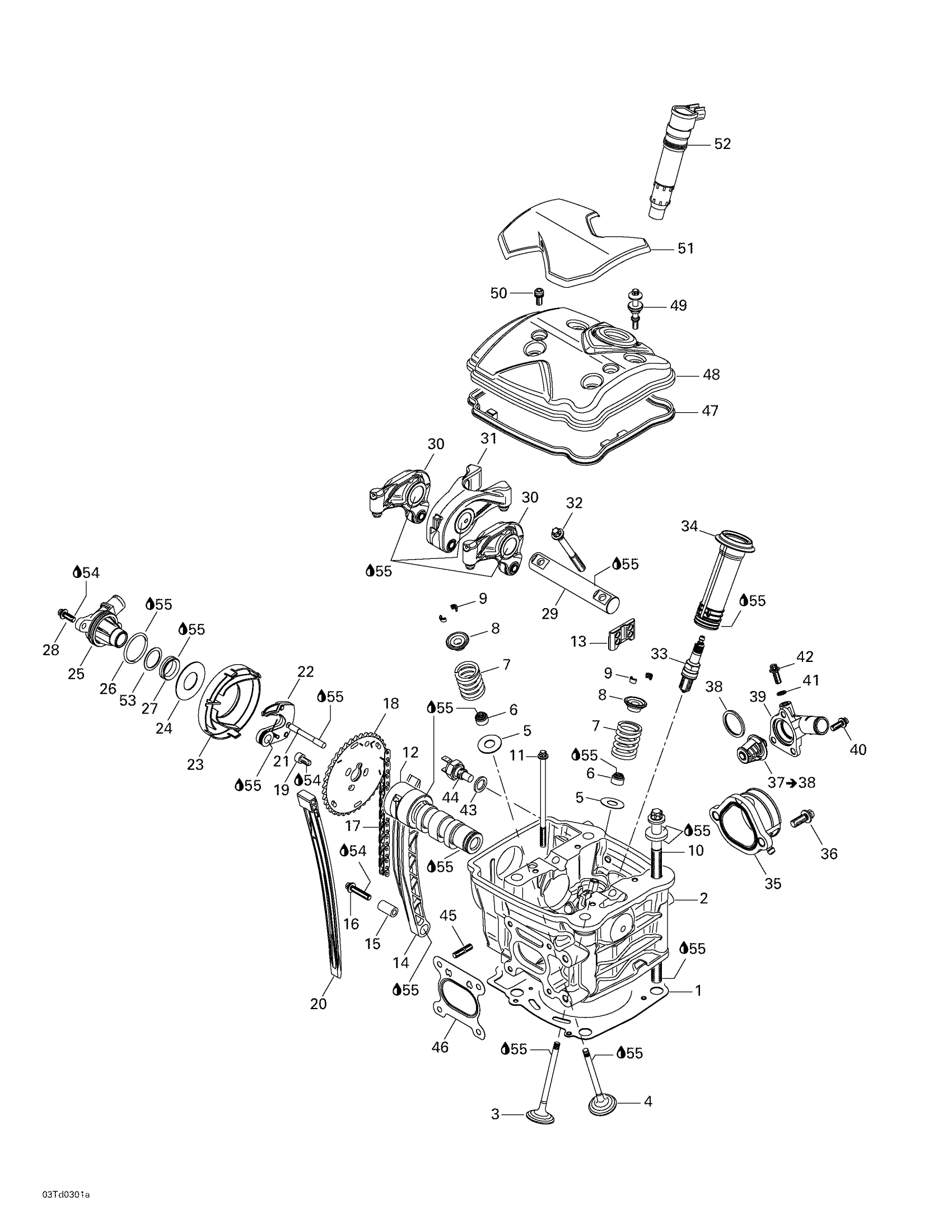

Can-Am Quest 650, 2003 01- Cylinder Head Diagram
#
1
GASKET - Call your local BRP dealership
711950660
Unavailable
2
Cylinder Head
711613476
Unavailable
3
Intake Valve 38MM
420253163
Unavailable
4
Exhaust Valve 31 mm
420254027
Unavailable
5
Thrust Washer
420627525
Unavailable
6
Seal
420230510
Unavailable
7
Valve Spring
420238180
Unavailable
8
Valve Spring Retainer
420254283
Unavailable
9
Valve Cotter
420253645
Unavailable
10
TORX SCREW M11 X 215 - Call your local BRP dealership
420641020
Unavailable
11
Torx Screw M6 x 105
711641333
Unavailable
12
Camshaft
711220770
Unavailable
Camshaft
711220772
Unavailable
13
Camshaft Guide
420851694
Unavailable
14
Chain Tension Guide
420236541
Unavailable
15
Distance Sleeve
711247100
Unavailable
16
Torx Flange Screw M6 X 35
420641258
Unavailable
17
Camshaft Chain
420297957
Unavailable
18
Timing Gear, 38 Teeth
420254309
Unavailable
19
Allen Screw M6 X 12
420840032
Unavailable
20
Chain Guide
420236501
Unavailable
21
Deko Shaft
711220792
Unavailable
22
Centrifugal Weight
711231061
Unavailable
23
Cover
711660032
Unavailable
24
Thrust Washer
711627490
Unavailable
25
CAMSHAFT COVER - Call your local BRP dealership
711610270
Unavailable
26
O-Ring
711950872
Unavailable
27
V-Ring 20S FPM Blow By Valve
420630125
Unavailable
28
Hex. Flange Screw M6 x 16
711241751
Unavailable
29
Rocker Arm Shaft
711854599
Unavailable
30
Rocker Arm, Exhaust
420254329
Unavailable
31
Rocker Arm, Inner
420254316
Unavailable
32
Torx Screw M8 X 72
420641080
Unavailable
33
Spark Plug, NGK DCP-R8E
715900637
Unavailable
34
Spark Plug Pipe
420851754
Unavailable
35
Rubber Flange
420267270
Unavailable
36
TORX FLANGE SCREW M8 X 25 - Call your local BRP dealership
711641243
Unavailable
37
Thermostat | Includes 53 to 54
420222495
Unavailable
38
Thermostat Gasket
420650300
Unavailable
39
Thermostat Cover
711222660
Unavailable
40
Torx Flange Screw M6 x 16
711641043
Unavailable
41
Sealing Washer
404146600
Unavailable
42
Torx Flange Screw M6 x 16
711641043
Unavailable
43
Copper Washer
420250640
Unavailable
44
Temperature Switch
420897938
Unavailable
45
Stud M6 x 16
711240010
Unavailable
46
Gasket
711950680
Unavailable
47
Sealing Ring
420630071
Unavailable
48
Valve Cover
711610185
Unavailable
49
Allen Screw M6 x 30,5
420440561
Unavailable
50
TORX SCREW M6 X 8 - Call your local BRP dealership
420641488
Unavailable
51
Valve Cover
711660200
Unavailable
52
Ignition Coil
711664025
Unavailable
53
THRUST WASHER - Call your local BRP dealership
420227440
Unavailable
54
Loctite 243, 10 ml
293800060
Unavailable
55
Not Available As Spare Part - Friction Washer
Unavailable
