01- Crankshaft And Cylinder

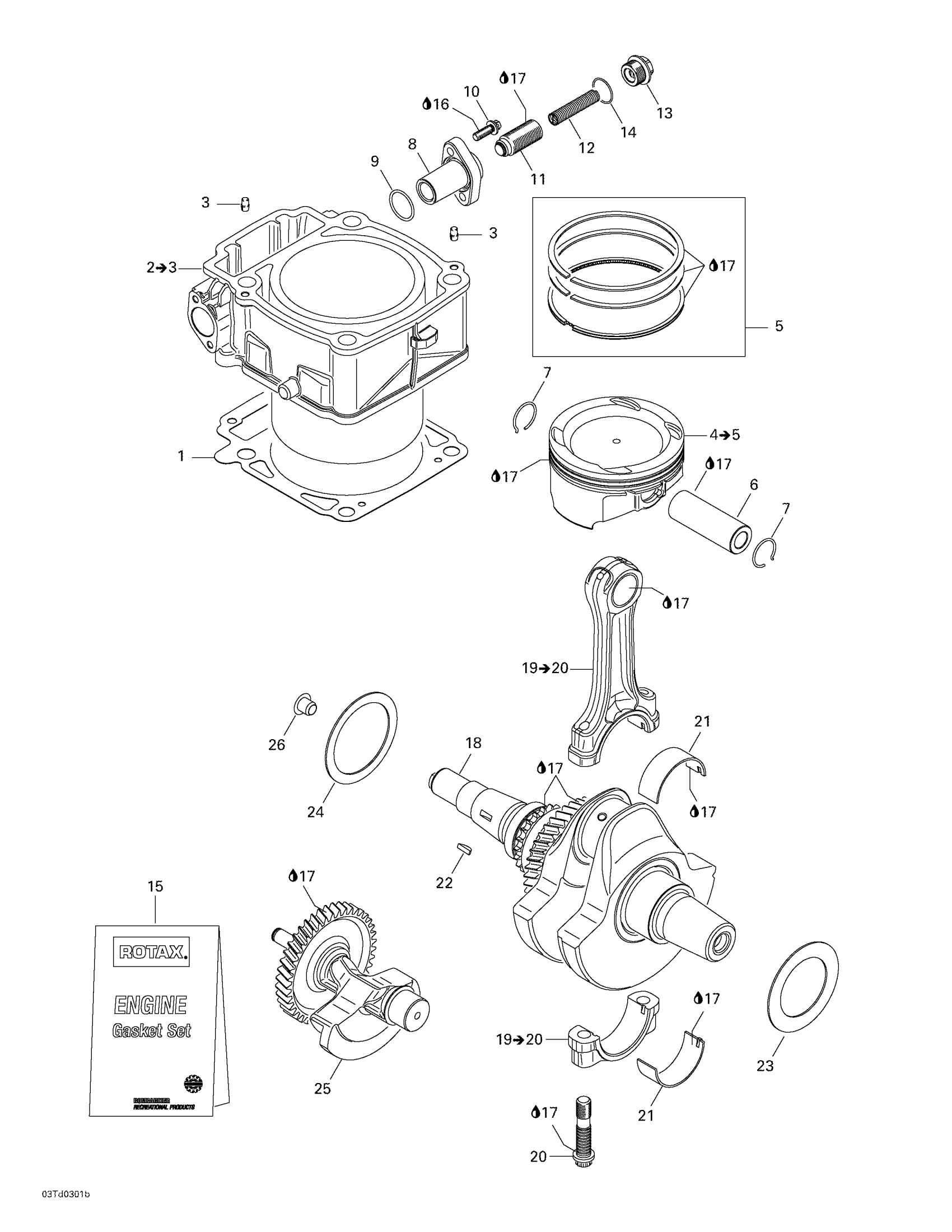

Can-Am Quest 650, 2003 01- Crankshaft And Cylinder Diagram
#
Description
Price
1
GASKET - Call your local BRP dealership
711630080
Unavailable
2
Cylinder Ass'y | Includes 2 - 3.
711923947
Unavailable
3
Drive Pin 5 X 10
420929650
Unavailable
4
Piston Ass'y, Standard, 99.96 mm | Traxter 500 CVT, Includes 4 To 5
420296565
Unavailable
Piston Ass'y | Includes 4 - 5.
711888860
Unavailable
5
Piston Set Ring, Standard | Traxter 500 CVT
420890380
Unavailable
6
Piston Pin
420216250
Unavailable
7
Circlip
420845580
Unavailable
8
Chain Tensioner Housing
420236510
Unavailable
9
O-Ring
420430373
Unavailable
10
Torx Flange Screw M6 X 25
420641238
Unavailable
11
Chain Tensioner Plunger
420236521
Unavailable
12
Spring
420238120
Unavailable
13
Plug Screw
420641150
Unavailable
14
O-Ring
420250890
Unavailable
15
Engine Gasket Set
711684120
Unavailable
16
Loctite 243, 10 ml
293800060
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Crankshaft Ass'y
711296861
Unavailable
Crankshaft Ass'y
711296641
Unavailable
19
Connecting Rod | Includes 19 - 20.
711917545
Unavailable
Connecting Rod | Includes 19 and 21.
711917525
Unavailable
20
Connecting rod Screw M10 X 1
420640991
Unavailable
21
Half-Bearing
420933523
Unavailable
22
Woodruff Key 4 X 5
420246570
Unavailable
23
SHIM - Call your local BRP dealership
420627363
Unavailable
24
Shim
711627502
Unavailable
25
Balancing Shaft
711220785
Unavailable
26
PLUG - Call your local BRP dealership
420660300
Unavailable
