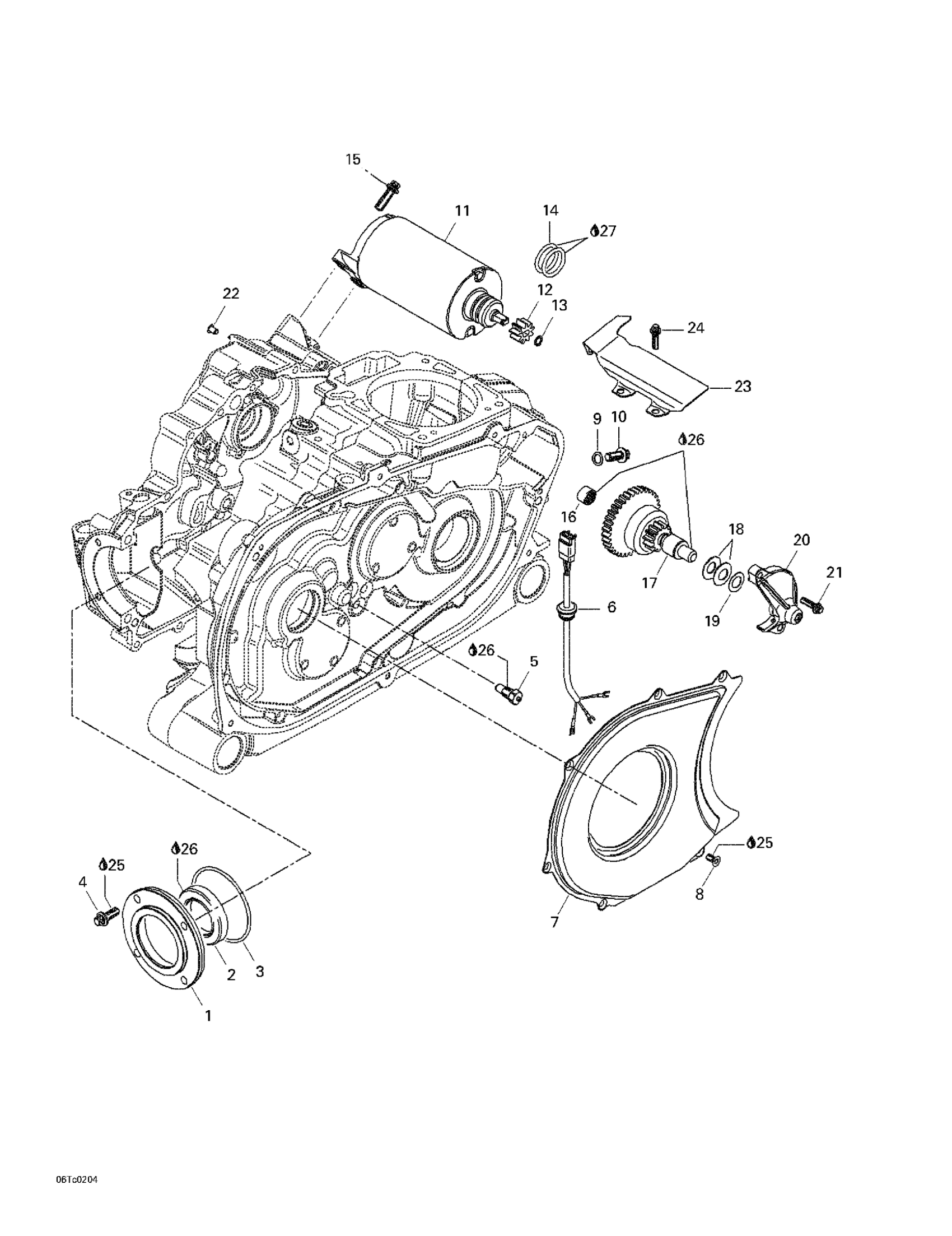

Can-Am Quest, 2002 Electric Starter Diagram

#

Description
Price

1

Bearing Cover (4 x 4)

711610240

Unavailable

2

Oil Seal

420650682

$17.88

3

Bearing Cover

420610243

$52.96

4

TORX FLANGE SCREW M8 X 25 - Call your local BRP dealership

711641243

Unavailable

5

Position Switch

420241856

$34.30

6

Wiring Harness

420265831

$47.73

7

Air Guide

711610262

Unavailable

8

Torx Taptite Screw M6 x 12

711241465

Unavailable

9

Sealing Ring

420950141

$1.88

10

TORX FLANGE SCREW M8 X 25 - Call your local BRP dealership

711641243

Unavailable

11

Electric Starter Ass'y | Includes 11 - 14.

711888991

Unavailable

11

CARBON BRUSH SET - Call your local BRP dealership

420664710

Unavailable

12

Starter Gear, 9 Teeth

420834522

$68.63

13

Retaining Ring

420845601

$4.28

14

O-Ring

711250300

Unavailable

15

Torx Flange Screw M6 X 25

420641238

$3.07

16

Needle Bushing

420232482

$17.88

17

STARTER DRIVE - Call your local BRP dealership

711888987

Unavailable

18

Spring Washer

420238300

$7.01

19

Thrust Washer

420827261

$7.09

20

Gear Cover

711610375

Unavailable

21

Torx Flange Screw M6 X 25

420641238

$3.07

22

Plug

711860245

Unavailable

23

Heat Deflector

711251240

Unavailable

24

Torx Flange Screw M6 x 16

711641043

Unavailable

25

Loctite 243, 10 ml

293800060

$21.49

26

Dow Corning 111, 150 g

413707000

$59.99

27

Engine Oil, Mineral, Api Sj Sae 10W40

293600023

Unavailable
