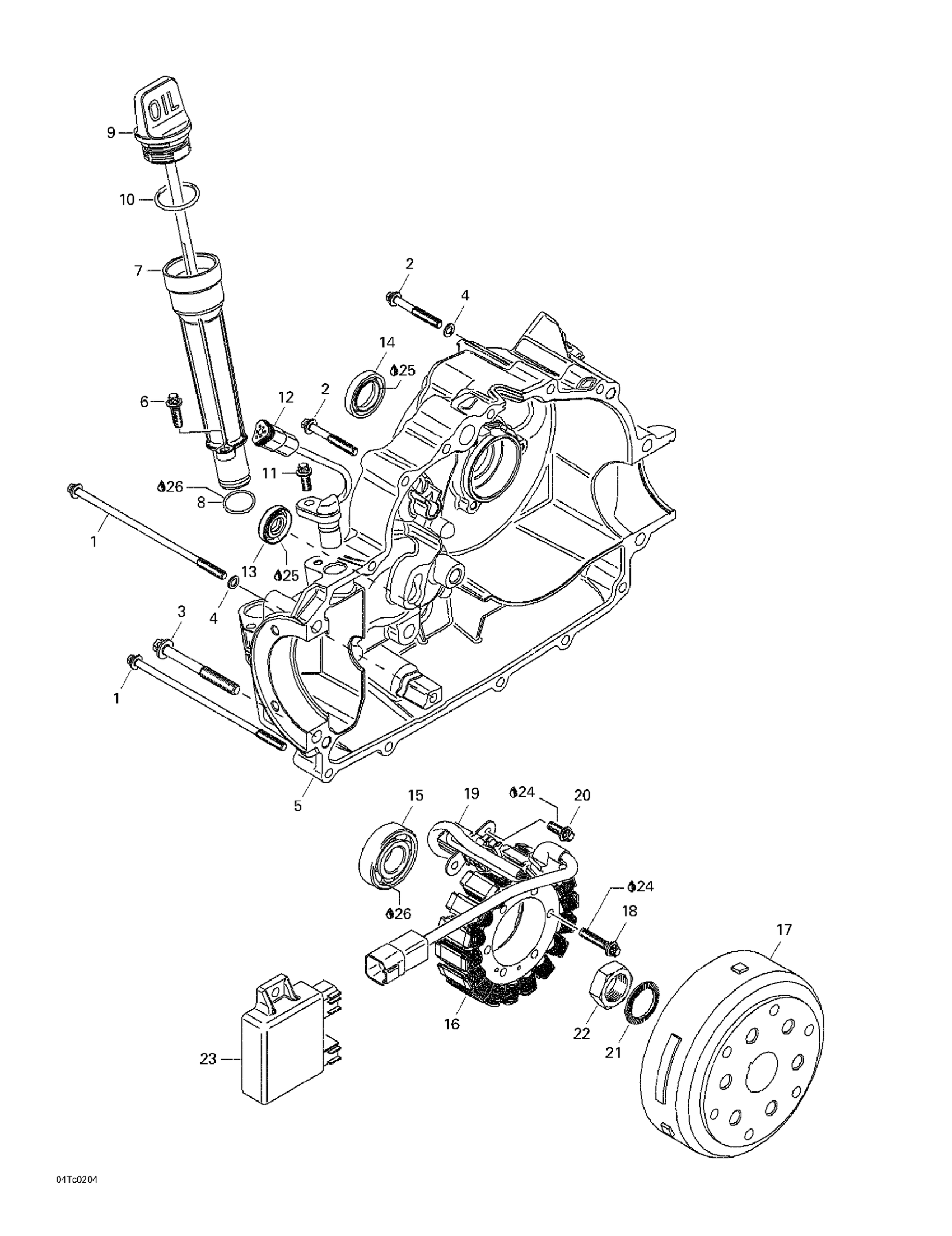

Can-Am Quest, 2002 Magneto Diagram

#

Description
Price

1

Torx Flange Screw M6 x 130

711641423

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Torx Flange Screw M8 x 65

711640333

Unavailable

4

Sealing Washer

404146600

$0.72

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Torx Flange Screw M6 X 25

420641238

$3.07

7

Dipstick Tube

711956980

Unavailable

8

O-RING - Call your local BRP dealership

711630430

Unavailable

9

Dipstick

711956895

Unavailable

10

O-ring

420430590

$6.07

11

Torx Flange Screw M6 x 16

711641043

Unavailable

12

Camshft Position Sensor Ass'y

420265727

$104.45

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Generator

711296630

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Torx Flange Screw M6 X 35

420641258

$3.19

19

Cable Cover

711260870

Unavailable

20

Torx Flange Screw M6 x 16

711641043

Unavailable

21

Washer

711845510

Unavailable

22

Hex. Nut M24

420242012

$14.90

23

Amplifier box

711265820

Unavailable

24

Loctite 243, 10 ml

293800060

$21.49

25

Dow Corning 111, 150 g

413707000

$59.99

26

Engine Oil, Mineral, Api Sj Sae 10W40

293600023

Unavailable
