Description

Price

1

Torx Flange Screw M6 X 35

420641258

$3.19

2

Sealing Washer

404146600

$0.72

3

Oil Filter Screw Kit

295501207

$37.28

4

O-Ring

420950860

$3.67

5

Oil Filter Cover

711610327

Unavailable

6

O-Ring

420230923

$2.97

7

Oil Filter

420956741

$12.79

8

Water Pump Housing

711222651

Unavailable

9

Torx Flange Screw M6 X 85

420641228

$7.01

10

Torx Flange Screw M6 X 35

420641258

$3.19

11

Gasket

711630100

Unavailable

12

Gasket

711630170

Unavailable

13

Water Impeller

711222540

Unavailable

14

Waterpump Shaft

711220827

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Thrust Washer

420827590

$3.75

17

Needle Pin

420232431

$4.21

18

Idle Gear, 25 Teeth

420635191

$15.64

19

Snap Ring

420245330

$1.64

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Retaining Ring

711845240

Unavailable

22

Dow Corning 111, 150 g

413707000

$59.99

23

Engine Oil, Mineral, Api Sj Sae 10W40

293600023

Unavailable

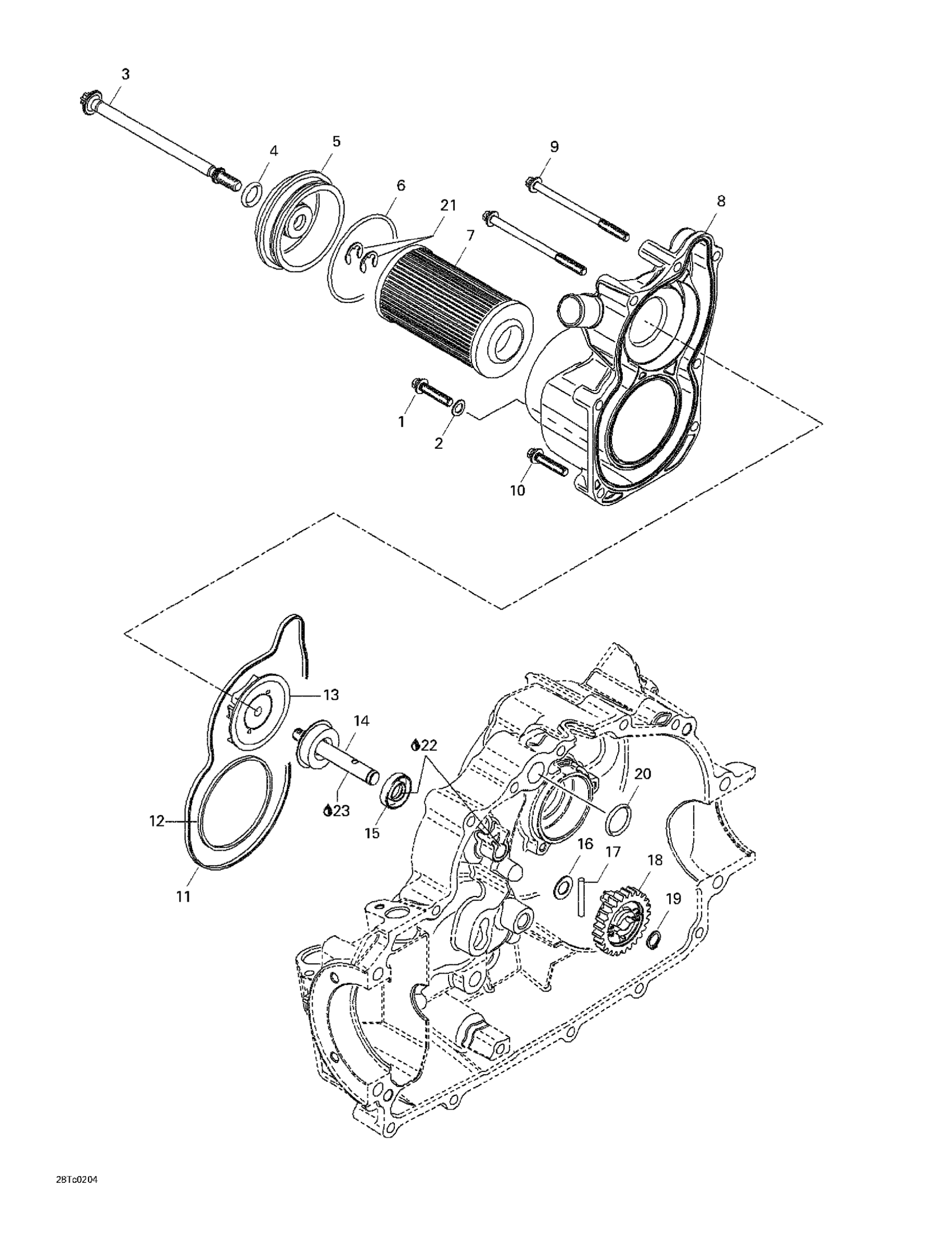

Can-Am Quest, 2002 Engine Cooling Diagram

Torx Flange Screw M6 X 35

Sealing Washer

Oil Filter Screw Kit

O-Ring

Oil Filter Cover

O-Ring

Oil Filter

Water Pump Housing

Torx Flange Screw M6 X 85

Torx Flange Screw M6 X 35

Gasket

Gasket

Water Impeller

Waterpump Shaft

Not Available As Spare Part - Friction Washer

Thrust Washer

Needle Pin

Idle Gear, 25 Teeth

Snap Ring

Not Available As Spare Part - Friction Washer

Retaining Ring

Dow Corning 111, 150 g

Engine Oil, Mineral, Api Sj Sae 10W40
