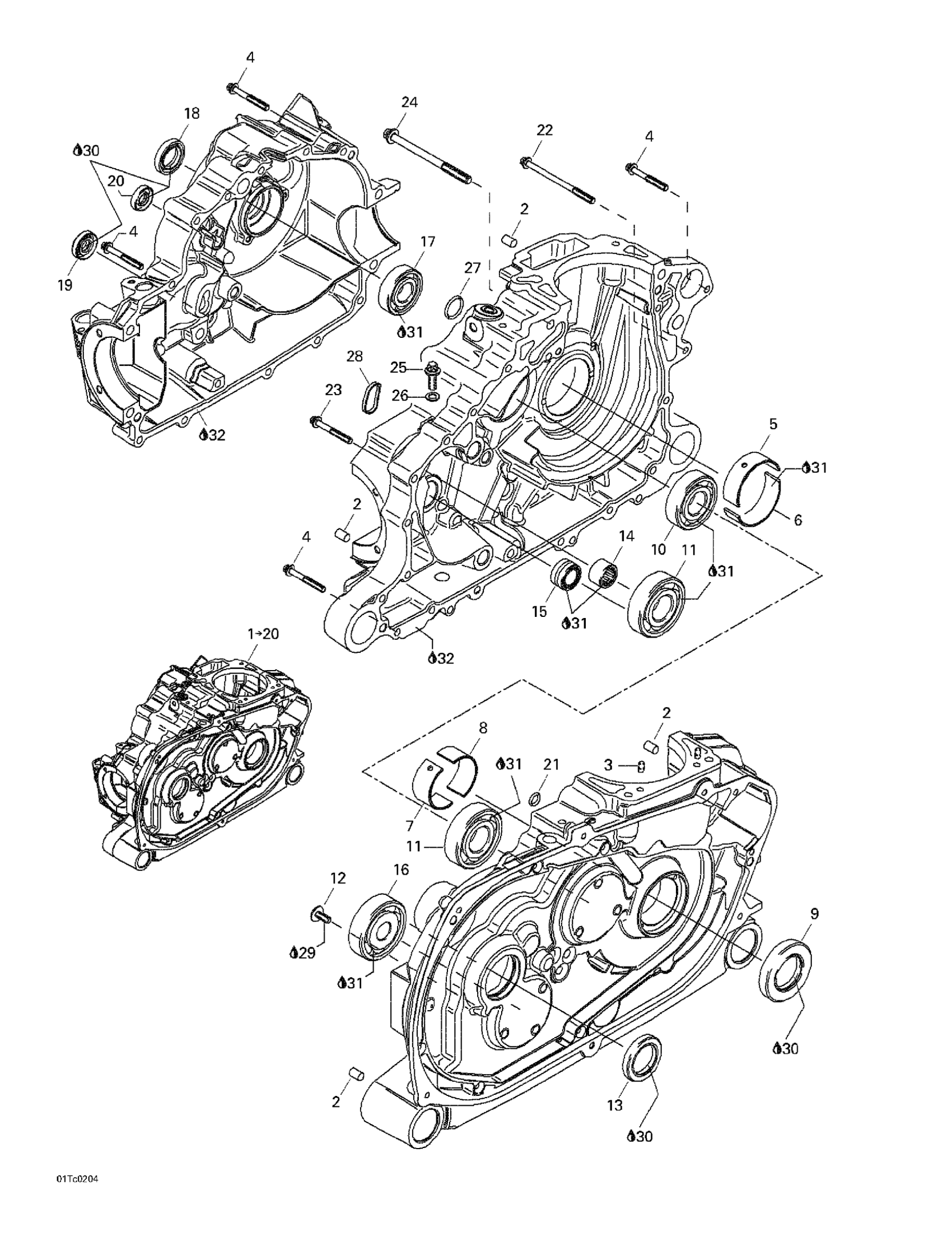

Can-Am Quest, 2002 Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 - 20.

711296652

Unavailable

2

Center Pin 8 X 12

420632010

$3.07

3

Drive Pin 5 X 10

420929650

$1.34

4

Torx Flange Screw M6 x 45

711641193

Unavailable

5

Plain Bearing

711933492

Unavailable

6

Bushing_Half - Call your local BRP dealership

420933495

Unavailable

7

Bushing_Half - Call your local BRP dealership

420233740

Unavailable

8

Bushing_Half - Call your local BRP dealership

420233745

Unavailable

9

Oil Seal

420630152

$16.12

10

Ball Bearing

711632200

Unavailable

11

Ball Bearing

420932822

$28.97

12

Torx Screw M6 X 16

420241529

$1.56

13

Oil Seal

420950089

$18.43

14

Needle Bushing

420832240

$19.94

15

Needle Bushing

420232085

$36.09

16

Ball Bearing

420632295

$45.12

17

Ball Bearing 6204

420932433

$22.28

18

Oil Seal

420930392

$11.77

19

Oil Seal

420650315

$9.62

20

Oil Seal

420250450

$16.89

21

O-Ring

711850900

Unavailable

22

Torx Flange Screw M6 X 85

420641228

$6.11

23

Torx Flange Screw M6 x 45

711641193

Unavailable

24

Torx Flange Screw M8 x 90

711640938

Unavailable

25

TORX FLANGE SCREW M8 X 25 - Call your local BRP dealership

711641243

Unavailable

26

Sealing Ring

420950141

$1.64

27

O-Ring

711950180

Unavailable

28

Gasket

711630180

Unavailable

29

Loctite 243, 10 ml

293800060

$20.77

30

Dow Corning 111, 150 g

413707000

$57.82

31

Engine Oil, Mineral, Api Sj Sae 10W40

293600023

Unavailable

32

Loctite 5910, 300 ml

293800081

$57.99
