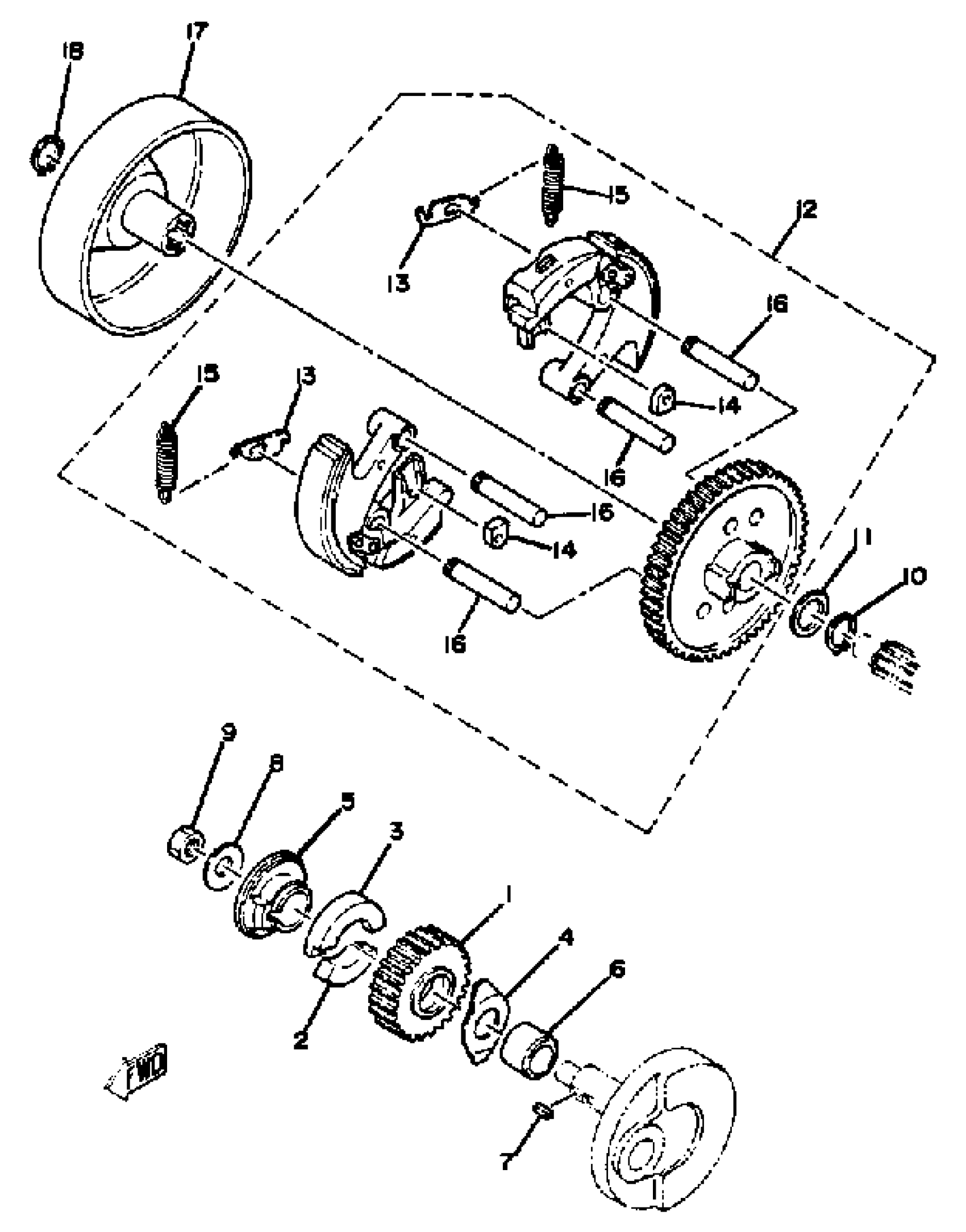

Yamaha QT50S (YAMAHOPPER) 1986 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

3L5-16111-00-00

$116.91

2

ABSORBER

3L5-16115-00-00

$4.09

3

ABSORBER

3L5-16125-00-00

$7.23

4

PLATE

3L5-16114-00-00

$6.29

5

SPACER 1

3L5-16181-01-00

$26.10

6

COLLAR (3L5)

90387-16730-00

$16.18

7

KEY, STRAIGHT (3L5)

90282-05034-00

$7.93

8

WASHER 823214910000

90208-10012-00

$12.58

9

NUT, FLANGE(3BM)

95704-10500-00

$1.68

10

CIRCLIP(13T)

99009-16400-00

$5.27

11

WASHER, PLATE (384)

90201-16383-00

$6.61

12

CLUTCH CARRIER ASSY

3L5-16620-04-00

Unavailable

13

WASHER

3L5-16628-02-00

$8.92

14

DAMPER, CLUTCH WEIGHT

2T4-16629-01-00

Unavailable

15

SPRING, CLUTCH WEIGHT

3L5-16627-02-00

$10.99

16

. SHAFT, CLUTCH WEIGHT

36R-16633-00-00

Unavailable

17

CLUTCH HOUSING COMP

3L5-16611-02-00

Unavailable

18

CIRCLIP(13T)

99009-16400-00

$5.27
