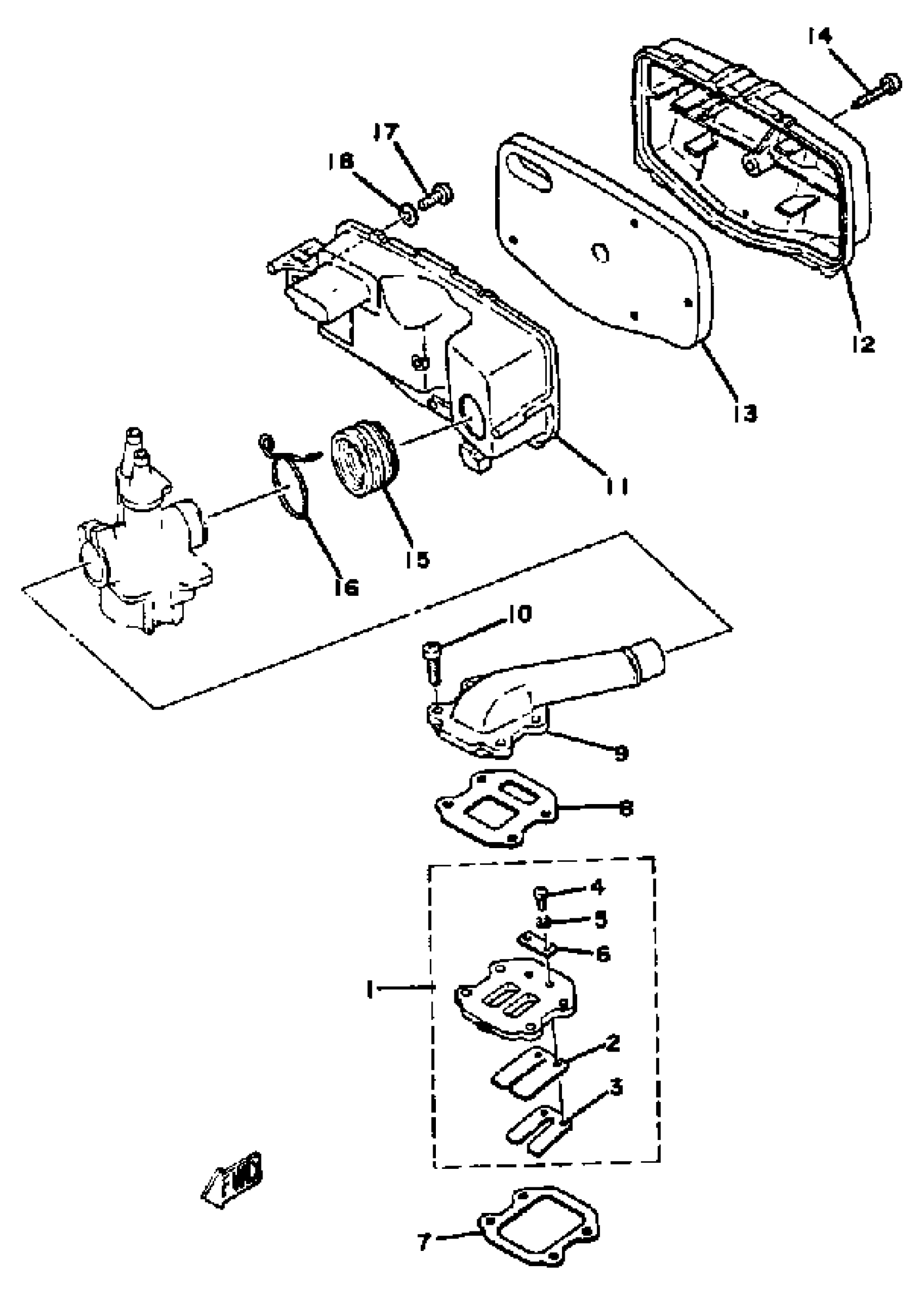

Yamaha QT50S (YAMAHOPPER) 1986 AIR FILTER Diagram

#

Description
Price

1

REED VALVE ASSY

3L5-13610-00-00

$67.33

2

REED VALVE

3L5-13613-00-00

$36.95

3

STOPPER, REED VALVE

3L5-13616-00-00

$8.65

4

SCREW PAN HEAD

98580-03010-00

$6.58

5

WASHER, SPRING

92990-03100-00

$5.87

6

PLATE, REED VALVE

3L5-13624-00-00

Unavailable

7

GASKET, VALVE SEAT

3HK-13621-00-00

$16.70

8

GASKET, VALVE SEAT

3L5-13622-10-00

$23.67

9

MANIFOLD

3L5-13555-00-00

$55.26

10

SCREW PAN HEAD

98580-06020-00

$6.08

11

AIR FILT CASE ASSEMBLY (3L5-14412-00)

3L5-W1441-00-00

Unavailable

12

AIR FILT CASE ASSEMBLY (3L5-14412-00)

3L5-W1441-00-00

Unavailable

13

ELEMENT, AIR CLEANER

3L5-14451-00-00

$10.96

14

YBS83-530 SCREW,PANH.TAPPING

97780-50130-00

Unavailable

15

JOINT, AIR CLEANER

3L5-14453-01-00

$38.58

16

CLIP 296144550000

90467-20023-00

Unavailable

17

SCREW, PAN

98507-06014-00

Unavailable

18

. WASHER, PLATE

90201-06050-00

Unavailable
