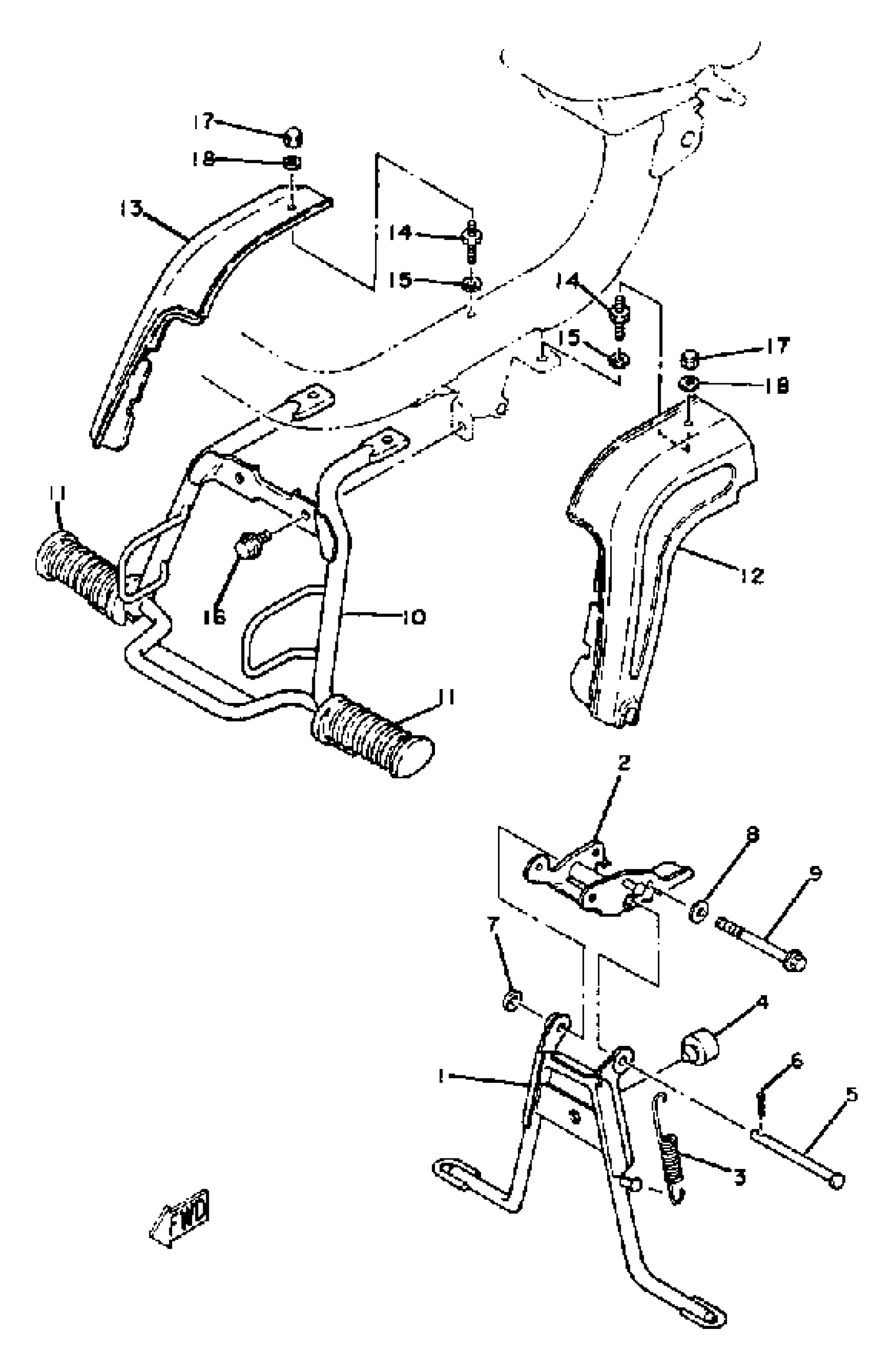

Yamaha QT50L (YAMAHOPPER) 1984 STAND - FOOTREST Diagram

#

Description
Price

1

STAND, MAIN

4K6-27111-00-33

Unavailable

2

BRACKET, MAIN STAND

4K6-27151-00-00

Unavailable

3

SPRING TENSION 146273160000

90506-29052-00

$11.49

4

STOPPER MAIN STAND

278-27114-00-00

$8.99

5

PIN, CLEVIS

91701-08080-00

Unavailable

6

CLIP 136253750000

90468-12006-00

$8.49

7

.. WASHER, PLATE

92990-08600-00

Unavailable

8

WASHER, PLATE

90201-08104-00

Unavailable

9

BOLT, WASHER BASED

90105-06809-00

$2.17

10

FOOTREST 1

3L5-27411-01-33

Unavailable

11

COVER, FOOT REST

441-27413-01-00

$17.49

12

COVER, FOOTREST 1

3L5-27453-00-00

Unavailable

13

COVER, FOOTREST 2

3L5-27463-00-00

Unavailable

14

BOLT

90109-08528-00

Unavailable

15

.. WASHER, PLATE

92990-08600-00

Unavailable

16

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

17

NUT (J17)

95380-06800-00

Unavailable

18

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable
