Description

Price

1

SINGLE SEAT ASSEMBLY

3L8-W2471-00-00

Unavailable

2

COVER, SINGLE SEAT

3L8-24711-00-00

Unavailable

3

DAMPER, SEAT

3L8-24724-00-00

Unavailable

4

STOPPER MAIN STAND

278-27114-00-00

$8.99

5

HINGE, SEAT

3L5-24726-00-00

Unavailable

6

NUT, FLANGE(7NB)

95780-06500-00

$2.60

7

PIN (3L5)

91701-08035-00

$7.49

8

CLIP 136253750000

90468-12006-00

$8.49

9

SPRING, CUSHION

3L5-24783-00-00

Unavailable

10

SUPPORT, SPRING 1

3L5-24781-00-00

Unavailable

11

STOPPER, CUSHION

3L5-24714-00-00

Unavailable

12

NUT, FLANGE(7NB)

95780-06500-00

$2.60

13

CARRIER, REAR

3L8-24842-00-00

Unavailable

14

BOLT, FLANGE

95817-08012-00

$5.49

15

BOX, AIR CLEANER

3L8-21240-00-00

Unavailable

16

. WASHER, PLATE

90201-06050-00

Unavailable

17

BOLT (661)

97013-06012-00

Unavailable

18

COVER, SIDE 3

3L8-21731-00-00

Unavailable

18

COVER SIDE 3

3L8-21731-30-00

Unavailable

19

LABEL, TIRE (MAJOLICA BLUE) (SUNSHINE RED)

3L8-21668-10-00

Unavailable

20

LABEL, CAUTION (MAJOLICA BLUE) (SUNSHINE RED)

5U9-2415E-00-00

Unavailable

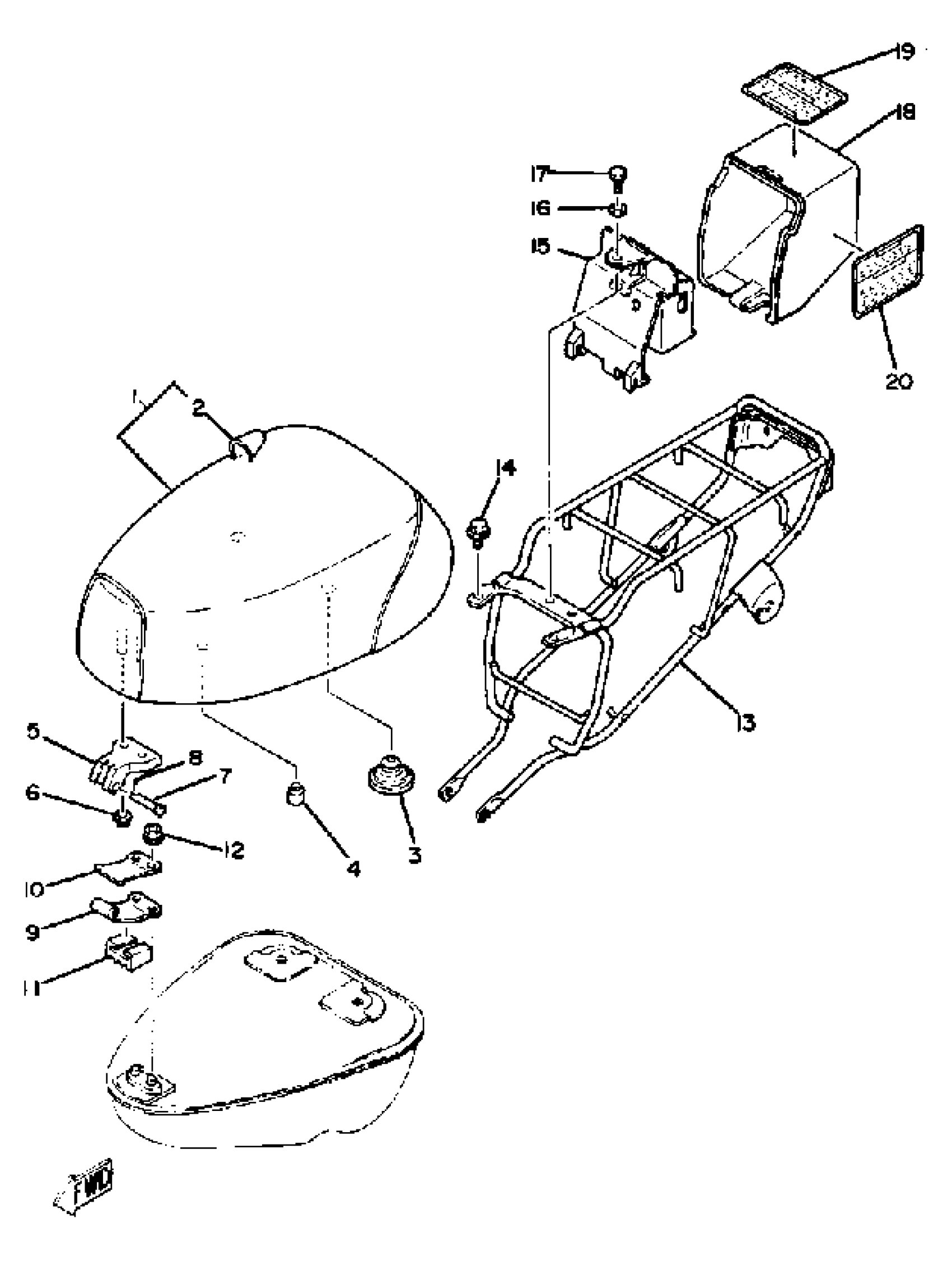

Yamaha QT50L (YAMAHOPPER) 1984 SEAT Diagram

SINGLE SEAT ASSEMBLY

COVER, SINGLE SEAT

DAMPER, SEAT

STOPPER MAIN STAND

HINGE, SEAT

NUT, FLANGE(7NB)

PIN (3L5)

CLIP 136253750000

SPRING, CUSHION

SUPPORT, SPRING 1

STOPPER, CUSHION

NUT, FLANGE(7NB)

CARRIER, REAR

BOLT, FLANGE

BOX, AIR CLEANER

. WASHER, PLATE

BOLT (661)

COVER, SIDE 3

COVER SIDE 3

LABEL, TIRE (MAJOLICA BLUE) (SUNSHINE RED)

LABEL, CAUTION (MAJOLICA BLUE) (SUNSHINE RED)
