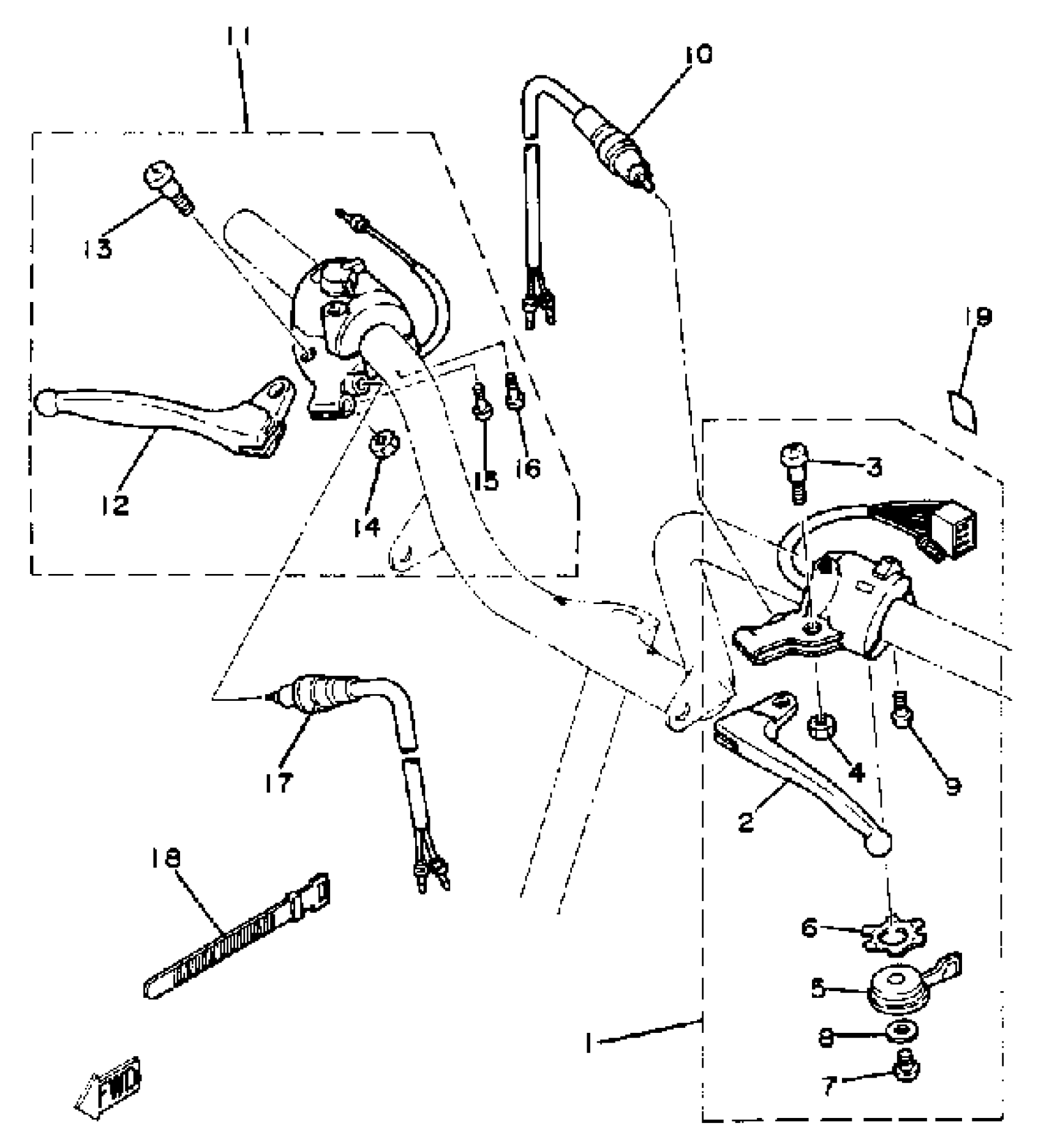

Yamaha QT50L (YAMAHOPPER) 1984 HANDLE SWITCH - LEVER Diagram

#

Description
Price

1

LEVER HOLDER ASSEMBLY.L (3L8-W8271-00)

3L8-W8271-01-00

Unavailable

2

LEVER (L.H)

137-83912-02-38

Unavailable

3

SCREW (1E2)

90149-05120-00

$9.49

4

NUT, U

95617-05100-00

$9.49

5

LEVER, STARTER

3LA-83941-00-00

Unavailable

6

WASHER (357)

90209-10131-00

$9.49

7

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

8

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

9

SCREW, PAN HEAD

98580-05020-00

Unavailable

10

FRONT STOP SWITCH ASSY

3E1-83980-09-00

$36.99

11

LEVER HOLDER ASSEMBLY R

3L8-W8292-31-00

Unavailable

12

LEVER (R.H)

2N3-83922-00-00

$30.99

13

SCREW (1E2)

90149-05120-00

$9.49

14

NUT, U

95617-05100-00

$9.49

15

SCREW, PAN HEAD

98580-05020-00

Unavailable

16

SCREW, PAN HEAD

98517-05030-00

Unavailable

17

FRONT STOP SWITCH ASSY

3E1-83980-09-00

$36.99

18

BAND, SWITCH CORD

437-83936-01-00

Unavailable

19

LABEL, CHOKE

3L8-26139-00-00

Unavailable
