Description

Price

1

HUB, FRONT

3L5-25111-01-35

Unavailable

2

SPACER

90560-10173-00

$14.99

3

FLANGE, SPACER 2

2E9-25116-00-00

$7.99

4

OIL SEAL (2E9)

93106-17015-00

$11.49

5

PLATE, BRAKE SHOE

2E9-25121-01-35

Unavailable

6

OIL SEAL(2JA)

93109-34057-00

$5.60

7

BRAKESHOE SET-2PCS

2E9-W2535-00-00

Unavailable

8

SPRING, SHOE RETURN

2E9-25133-00-00

$7.99

9

RING, STOP

2T4-25137-00-00

Unavailable

10

GEAR, METER

3L5-25138-00-00

Unavailable

11

GEAR, DRIVE

3L5-25135-00-00

Unavailable

12

LEVER, CAMSHAFT 1

2E9-25155-01-00

Unavailable

13

CAMSHAFT

25K-25151-00-00

Unavailable

14

BOLT(3JK)

97027-05020-00

$3.29

15

NUT, HEXAGON (663)

95380-05600-00

$8.49

16

INDICATOR

3L8-2513A-00-00

Unavailable

17

WASHER,PLATE (2JA)

90201-064L6-00

Unavailable

18

BEARING (3R0)

93306-20009-00

Unavailable

19

RIM 1.20X14

94412-14261-00

Unavailable

20

SPOKE SET,REAR

4J2-25304-00-00

Unavailable

21

225X14 IRC REAR

94122-14461-00

Unavailable

22

TUBE (3L8)

94220-14143-00

Unavailable

23

BAND, RIM (1K8)

94327-14076-00

Unavailable

24

RING (STOP)

2E9-25137-01-00

Unavailable

25

AXLE,WHEEL

99999-02824-00

Unavailable

26

COLLAR (2E9)

90387-10620-00

Unavailable

27

NUT 3532518200

90171-10004-00

Unavailable

28

PIN, COTTER

91490-20025-00

Unavailable

29

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

30

RING 1

3L5-25185-00-00

Unavailable

31

O-RING (611)

93210-10096-00

Unavailable

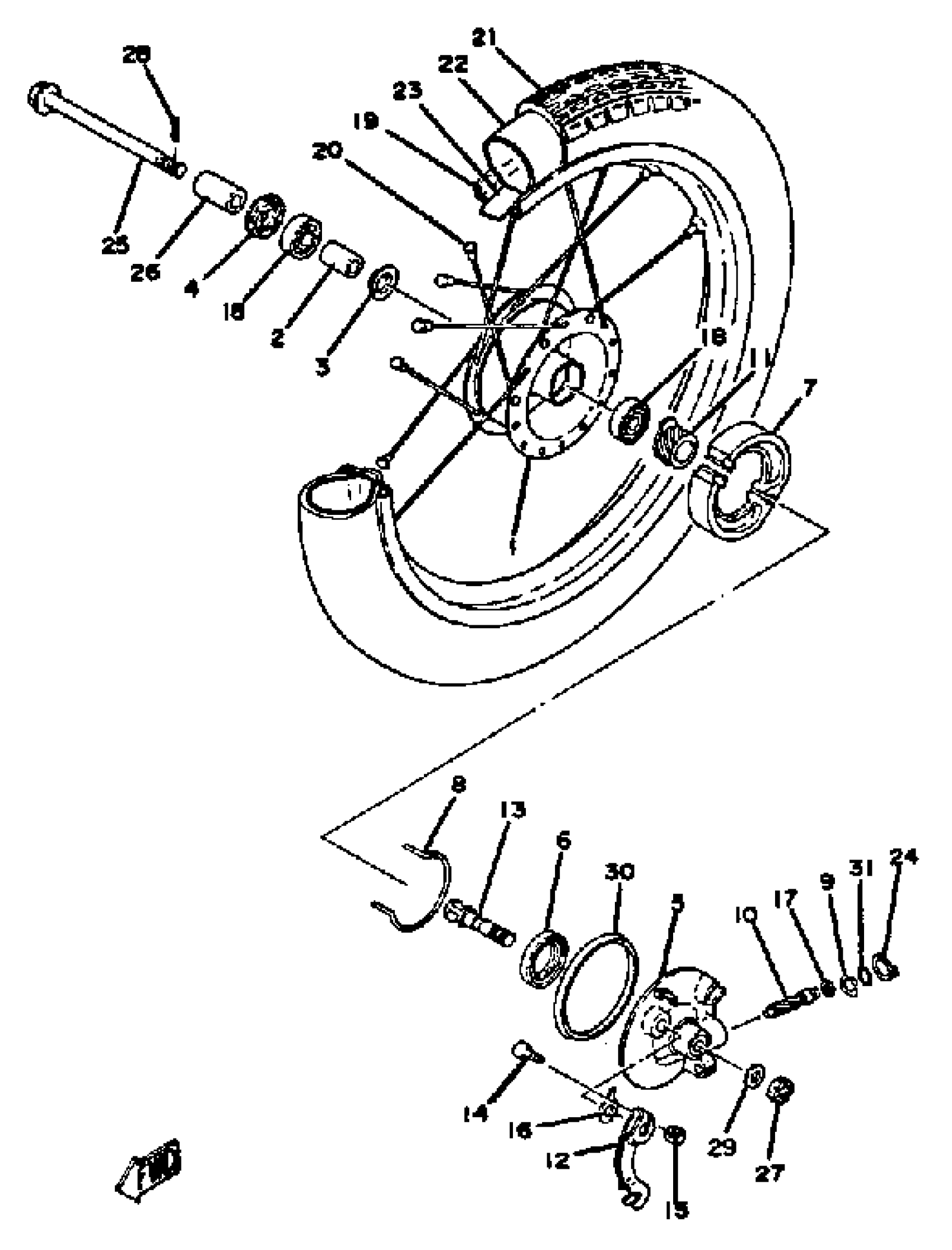

Yamaha QT50L (YAMAHOPPER) 1984 FRONT WHEEL Diagram

HUB, FRONT

SPACER

FLANGE, SPACER 2

OIL SEAL (2E9)

PLATE, BRAKE SHOE

OIL SEAL(2JA)

BRAKESHOE SET-2PCS

SPRING, SHOE RETURN

RING, STOP

GEAR, METER

GEAR, DRIVE

LEVER, CAMSHAFT 1

CAMSHAFT

BOLT(3JK)

NUT, HEXAGON (663)

INDICATOR

WASHER,PLATE (2JA)

BEARING (3R0)

RIM 1.20X14

SPOKE SET,REAR

225X14 IRC REAR

TUBE (3L8)

BAND, RIM (1K8)

RING (STOP)

AXLE,WHEEL

COLLAR (2E9)

NUT 3532518200

PIN, COTTER

958-69527-00 WASHER, PLAIN

RING 1

O-RING (611)
