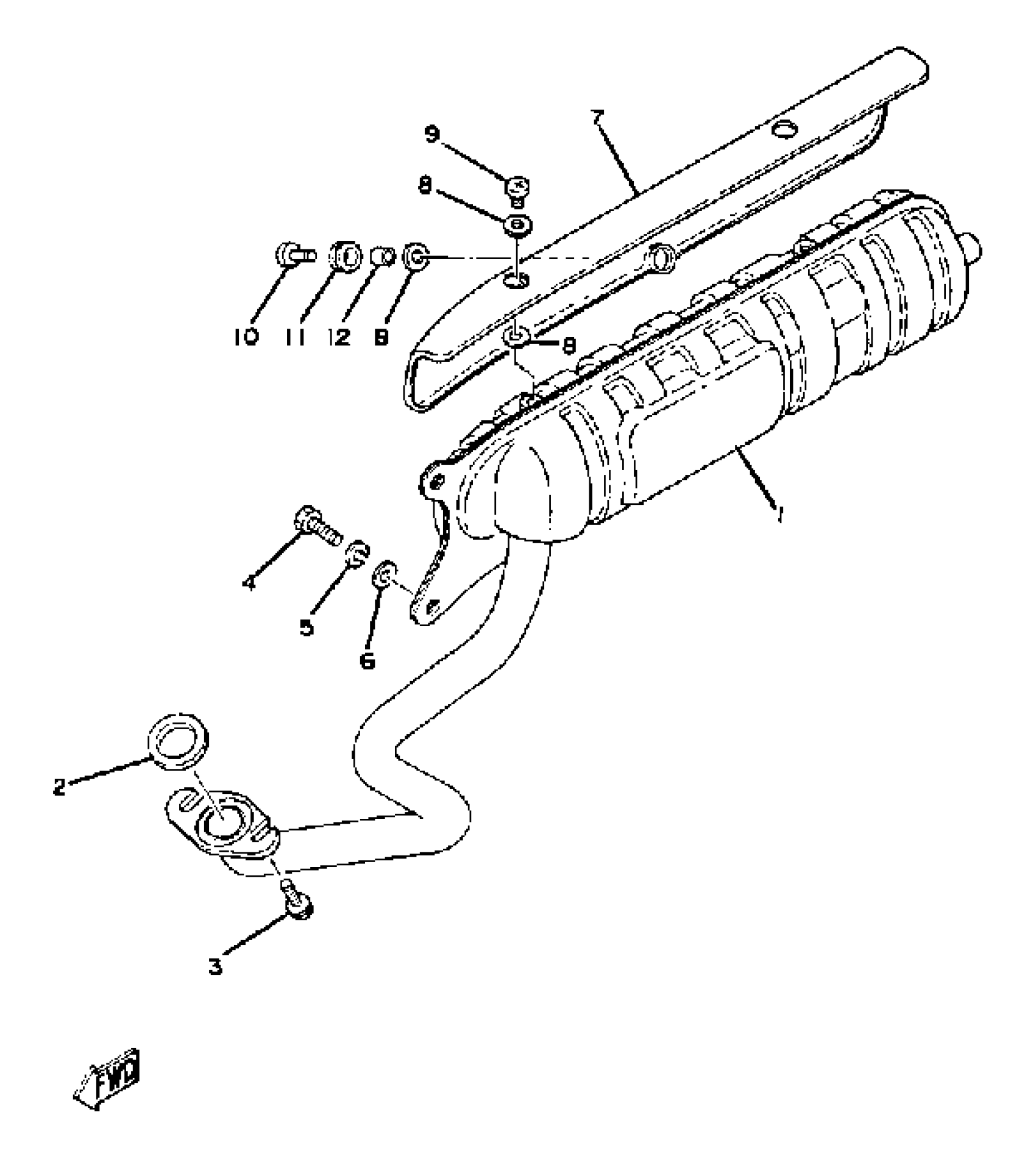

Yamaha QT50L (YAMAHOPPER) 1984 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

4L4-14610-00-00

Unavailable

2

GASKET, EXHAUST PIPE

2E9-14613-10-00

$6.84

3

SCREW, HEXAGON(1YU)

90153-06061-00

$5.76

4

BOLT, HEXAGON

97013-08020-00

$1.43

5

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

6

.. WASHER, PLATE

92990-08600-00

$2.17

7

PROTECTOR, MUFF 1

3L5-14718-00-35

Unavailable

8

WASHER, PLATE(3AJ)

90202-05191-00

$5.77

9

SCREW PAN HEAD

98580-06010-00

$5.75

10

SCREW, BIND(J45)

98980-06012-00

$5.75

11

GROMMET (2T4)

90480-12237-00

$1.82

12

COLLAR 8121444900

90387-06023-00

$7.15
