1982 Yamaha QT50 (QT50J) Starter Diagram

← All diagrams

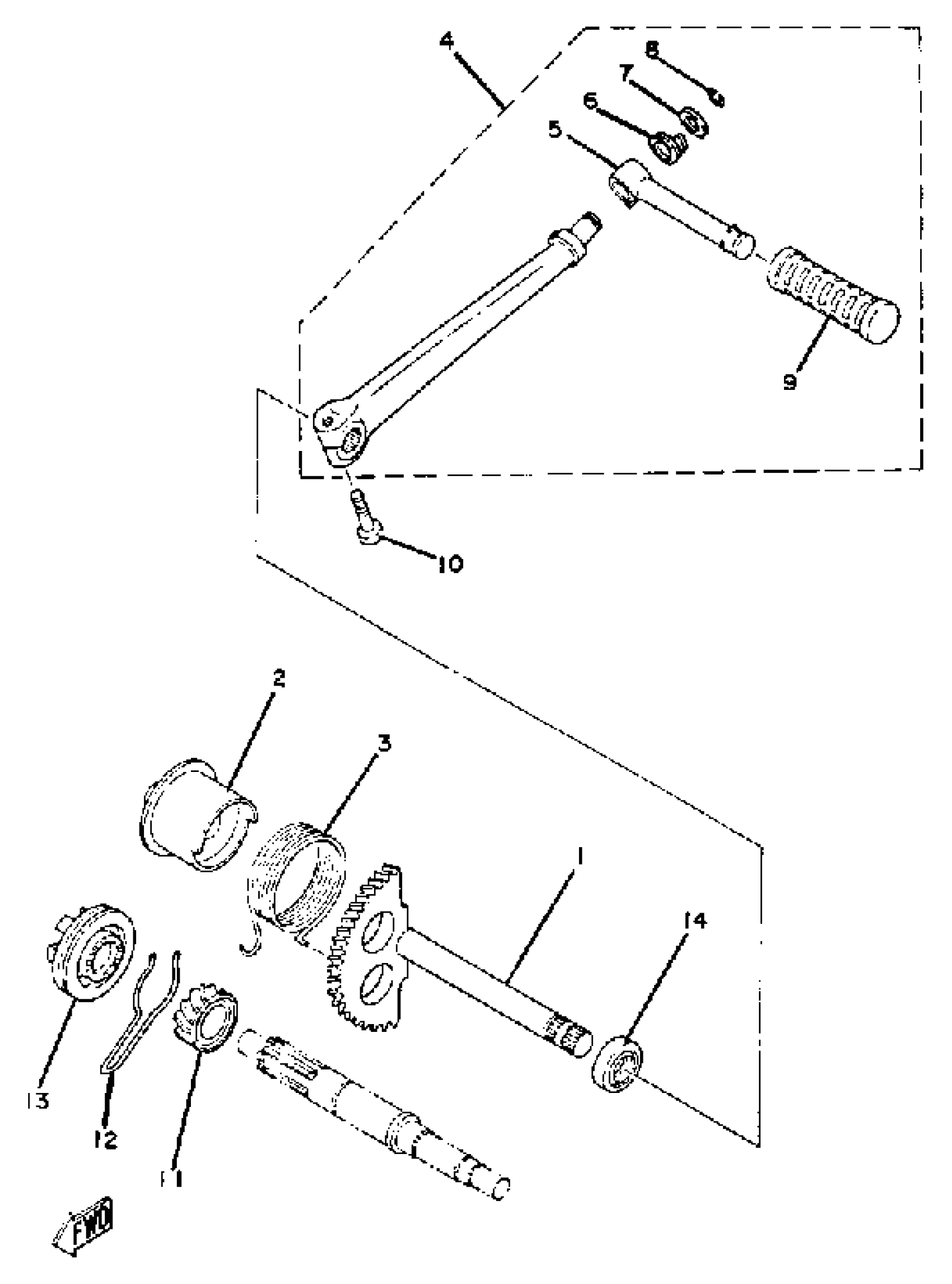

Find the part on the Starter diagram for your 1982 Yamaha QT50 (QT50J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1982 Yamaha QT50 (QT50J) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK SHAFT ASSY

3L5-15601-01-00

1
Out of stock

2

GUIDE, SPRING

3L5-15664-00-00

1

$18.21

In stock

3

SPRING, TORSION (3L5)

90508-28399-00

1

$10.68

In stock

4

KICK CRANK ASSEMBLY

34M-15620-00-00

1
Out of stock

5

LEVER, KICK

(4K5-15612-00-00)

1
Out of stock

6

SPRING, COMPRESSION (5L1)

90504-18031-00

1

$7.66

In stock

7

WASHER,SPEC'L SHAPE

90209-10210-00

1
Out of stock

8

. CIRCLIP, OUTER

93440-10028-00

1
Out of stock

9

COVER, KICK LEVER

156-15618-01-00

1

$6.43

In stock

10

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

11

GEAR, KICK PINION (13T)

3L5-15631-00-00

1

$68.89

In stock

12

CLIP

3L5-15673-00-00

1

$6.83

In stock

13

GEAR, DRIVE

3L5-13178-00-00

1

$124.15

In stock

14

OIL SEAL (15X26X6-102)

93109-15001-00

1

$7.42

In stock
