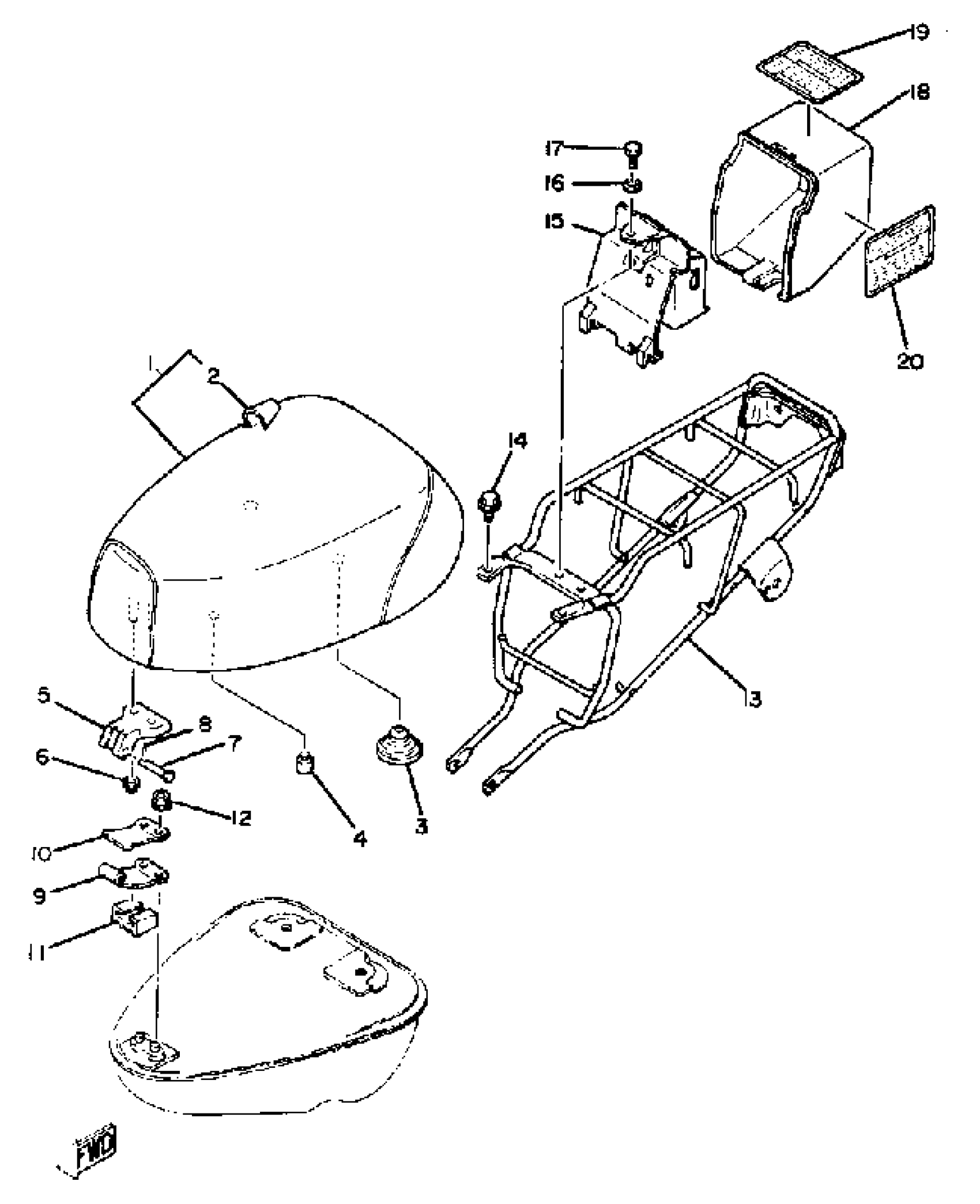

Yamaha QT50J (QT50) 1982 SEAT Diagram
#
Description
Price
1
SINGLE SEAT ASSEMBLY
3L8-W2471-00-00
Unavailable
2
COVER, SINGLE SEAT
3L8-24711-00-00
Unavailable
3
DAMPER, SEAT
3L8-24724-00-00
Unavailable
5
HINGE, SEAT
3L5-24726-00-00
Unavailable
9
SPRING, CUSHION
3L5-24783-00-00
Unavailable
10
SUPPORT, SPRING 1
3L5-24781-00-00
Unavailable
11
STOPPER, CUSHION
3L5-24714-00-00
Unavailable
13
CARRIER, REAR
3L8-24842-00-00
Unavailable
15
BOX, AIR CLEANER
3L8-21240-00-00
Unavailable
16
. WASHER, PLATE
90201-06050-00
Unavailable
17
BOLT (661)
97013-06012-00
Unavailable
18
COVER, SIDE 3
3L8-21731-00-00
Unavailable
18
COVER, SIDE 3
3L8-21731-10-00
Unavailable
18
COVER, SIDE 3
3L8-21731-40-00
Unavailable
19
LABEL, TIRE (MAJOLICA BLUE) (SUNSHINE RED)
3L8-21668-10-00
Unavailable
19
LABEL, TIRE
(3L8-21668-20-00)
Unavailable
20
LABEL, CAUTION (MAJOLICA BLUE) (SUNSHINE RED)
5U9-2415E-00-00
Unavailable
20
LABEL, CAUTION
5U9-2415E-10-00
Unavailable
