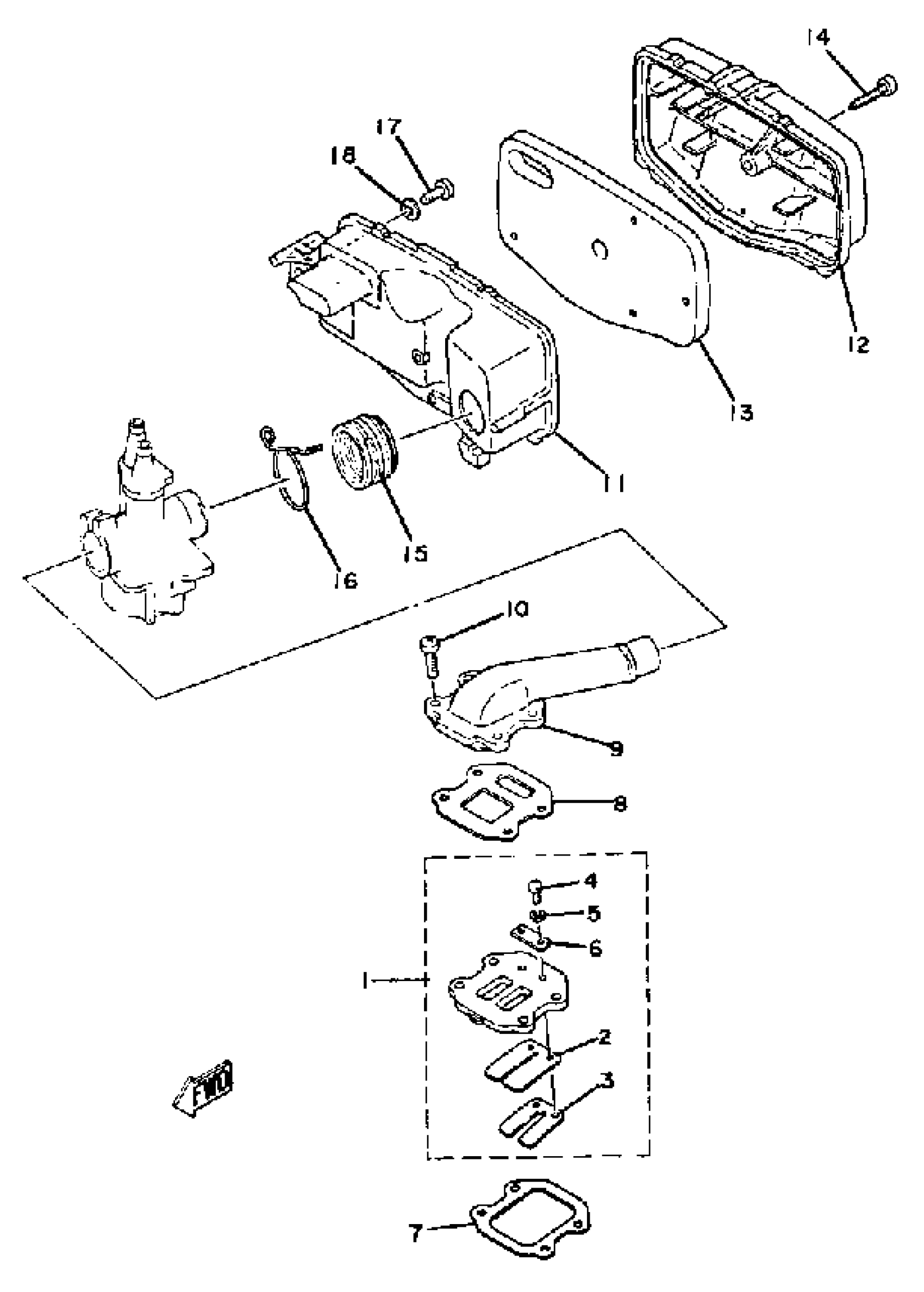

Yamaha QT50J (QT50) 1982 INTAKE Diagram

#

Description
Price

1

REED VALVE ASSY

3L5-13610-00-00

$81.99

2

REED VALVE

3L5-13613-00-00

$42.99

3

STOPPER, REED VALVE

3L5-13616-00-00

$9.99

4

SCREW PAN HEAD

98580-03010-00

$8.49

5

WASHER, SPRING

92990-03100-00

$8.49

6

PLATE, REED VALVE

3L5-13624-00-00

Unavailable

7

GASKET, VALVE SEAT

3HK-13621-00-00

$20.99

8

GASKET, VALVE SEAT

3L5-13622-10-00

$28.99

9

MANIFOLD

3L5-13555-00-00

$65.99

10

SCREW PAN HEAD

98580-06020-00

$8.49

11

AIR FILT CASE ASSEMBLY (3L5-14412-00)

3L5-W1441-00-00

Unavailable

12

AIR FILT CASE ASSEMBLY (3L5-14412-00)

3L5-W1441-00-00

Unavailable

13

ELEMENT, AIR CLEANER

3L5-14451-00-00

$13.49

14

YBS83-530 SCREW,PANH.TAPPING

97780-50130-00

Unavailable

15

JOINT, AIR CLEANER

3L5-14453-01-00

$46.99

16

CLIP 296144550000

90467-20023-00

Unavailable

17

SCREW, PAN

98507-06014-00

Unavailable

18

. WASHER, PLATE

90201-06050-00

Unavailable
