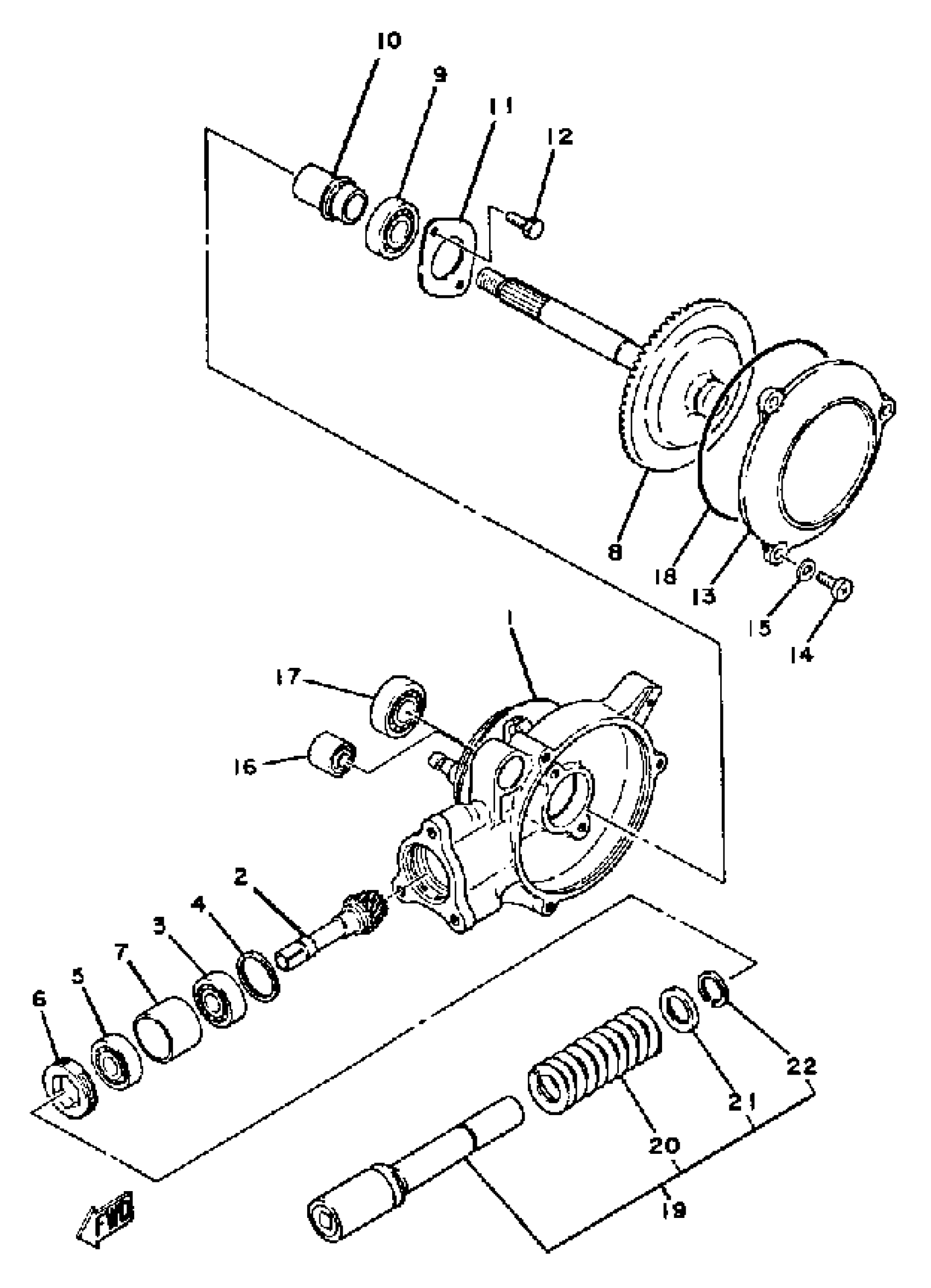

Yamaha QT50J (QT50) 1982 DRIVE SHAFT Diagram

#

Description
Price

1

HOUSING, DR SHAFT

3L5-46151-00-00

Unavailable

2

GEAR, DRIVE PINIONPINION (10T) 000

15L-46121-00-00

Unavailable

3

BEARING(3WF)

93306-20119-00

$33.99

4

SHIM, DRIVE PINION

3L5-46127-00-00

$6.99

5

BEARING(3WF)

93306-20119-00

$33.99

5

BEARING(3WF)

93306-20119-00

$33.99

6

SCREW (3L5)

90149-35133-00

$12.49

7

SPACER (3L5)

90560-25185-00

$7.49

8

RING GEAR ASSEMBLY

3L5-46110-00-00

Unavailable

9

BEARING

93306-20205-00

$38.99

9

BEARING

93306-20205-00

$38.99

10

SPACER

90560-15315-00

$18.99

11

PLATE, COVER

3L5-46114-00-00

Unavailable

12

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

13

COVER, HOUSING (3L5-46154-02) 000

15L-46154-00-00

Unavailable

14

SCREW, PAN

98507-06014-00

Unavailable

15

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

16

BUSHING, REAR CUSHION

164-22216-00-00

Unavailable

17

BEARING(3DL)

93306-20226-00

Unavailable

18

O-RING

93211-066A9-00

Unavailable

19

SHAFT DRIVE ASSEMBLY (3L5-46171-00)

15L-46171-00-00

Unavailable

19

SHAFT DRIVE ASSEMBLY (3L5-46171-00)

15L-46171-00-00

Unavailable

20

SPRING, COMPRESSION (3L5)

90501-60556-00

Unavailable

21

RETAINER, SPRING

15L-18473-00-00

Unavailable

21

RETAINER, SPRING

15L-18473-00-00

Unavailable

22

CIRCLIP(18U)

93440-17138-00

Unavailable

22

CIRCLIP(18U)

93440-17138-00

Unavailable
