Description

Price

1

CRANKSHAFT ASSY

3L5-11400-03-00

$186.99

2

CRANK (L.H)

3L5-11412-00-00

$102.99

3

CRANK 2

3L5-11422-02-00

Unavailable

4

PIN, CRANK 1

1YU-11681-00-00

Unavailable

5

ROD, CONNECTING

2E9-11651-00-00

Unavailable

6

BRG,NEEDLE

93310-416N7-00

$36.99

7

KEY WOODRUFF 146115450000

90280-03017-00

$7.49

8

WASHER, PLATE(663)

92990-12600-00

$8.49

9

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

10

NUT, HEXAGON SMALL

95317-12700-00

$8.49

11

BEARING(37F)

93306-20335-00

$35.99

12

OIL SEAL (17X35X7-257)

93102-17067-00

$11.49

13

OIL SEAL (2E9)

93102-23174-00

$14.99

14

PISTON (STD)

18U-11631-00-A0

$88.99

14

PISTON (STD)

18U-11631-00-A0

$88.99

14

PISTON (1ST O/S)

18U-11635-00-00

Unavailable

14

PISTON (1ST O/S)

18U-11635-00-00

Unavailable

14

PISTON (2ND O/S)

18U-11636-00-00

Unavailable

14

PISTON (2ND O/S)

18U-11636-00-00

Unavailable

15

PIN, PISTON

3L5-11633-00-00

Unavailable

16

PISTON RING SET (STD)

260-11601-03-00

Unavailable

16

PISTON RING SET (1ST O/S)

260-11601-13-00

Unavailable

16

PISTON RING SET (2ND O/S)

260-11601-23-00

Unavailable

17

CIRCLIP 101116340000

93450-11021-00

Unavailable

18

BEARING (27V)

93310-210M0-00

Unavailable

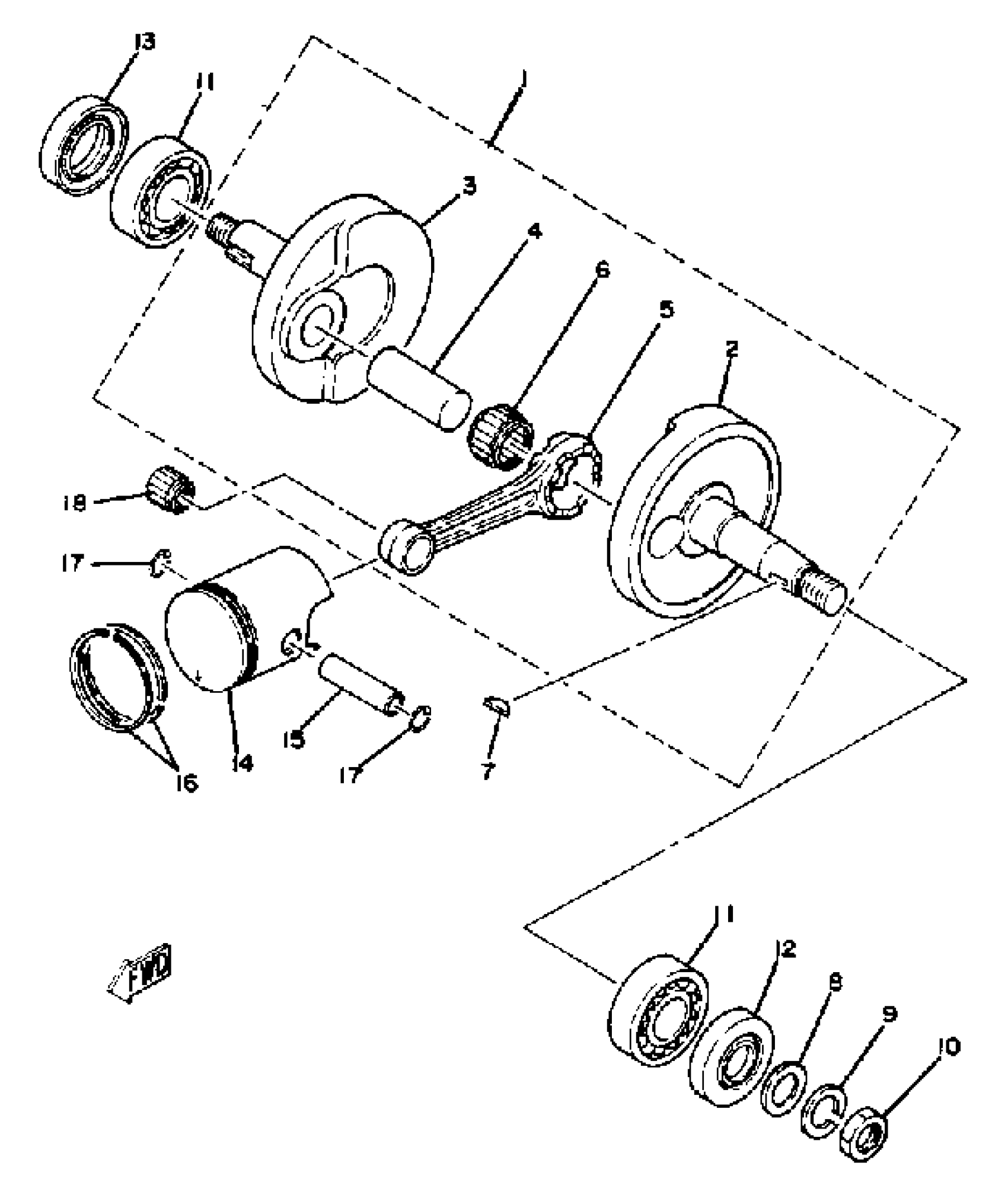

Yamaha QT50J (QT50) 1982 CRANKSHAFT - PISTON Diagram

CRANKSHAFT ASSY

CRANK (L.H)

CRANK 2

PIN, CRANK 1

ROD, CONNECTING

BRG,NEEDLE

KEY WOODRUFF 146115450000

WASHER, PLATE(663)

YBS67-12 WASHER,SPRING

NUT, HEXAGON SMALL

BEARING(37F)

OIL SEAL (17X35X7-257)

OIL SEAL (2E9)

PISTON (STD)

PISTON (STD)

PISTON (1ST O/S)

PISTON (1ST O/S)

PISTON (2ND O/S)

PISTON (2ND O/S)

PIN, PISTON

PISTON RING SET (STD)

PISTON RING SET (1ST O/S)

PISTON RING SET (2ND O/S)

CIRCLIP 101116340000

BEARING (27V)
