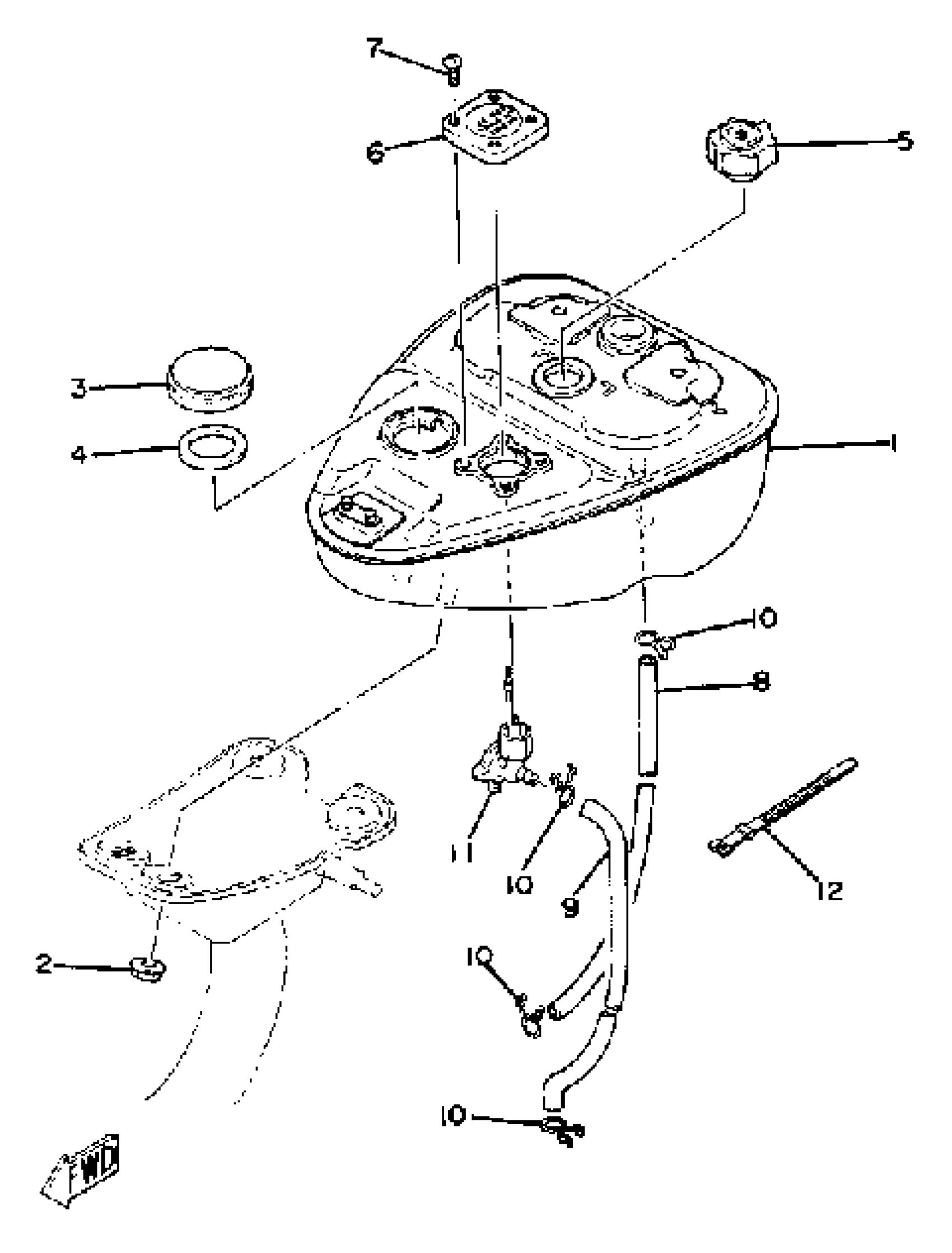

Yamaha QT50F (QT50) 1979 FUEL TANK-OIL TANK Diagram

#

Description
Price

1

FUEL TANK

3L5-24110-01-4G

Unavailable

1

FUEL TANK COMP.

3L5-24110-01-EY

Unavailable

2

NUT, FLANGE

95704-08500-00

$5.76

3

CAP ASSY

22F-24610-10-00

Unavailable

4

PACKING, CAP

3T5-24612-20-00

$6.29

5

. OIL TANK CAP ASSY

52W-21770-00-00

Unavailable

6

CAP ASSEMBLY

3L8-24610-00-00

Unavailable

7

BOLT, WITH WASHER

90119-05071-00

$6.09

8

HOSE (L420)

90445-092K1-00

$10.47

9

PIPE 2

3YR-24312-00-00

$15.51

10

CLIP 101235600

90467-08003-00

$5.88

11

FUEL COCK ASSY

4L4-24500-00-00

Unavailable

12

BAND, SWITCH CORD

437-83936-01-00

$4.56
