1979 Yamaha QT50 (QT50F) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1979 Yamaha QT50 (QT50F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

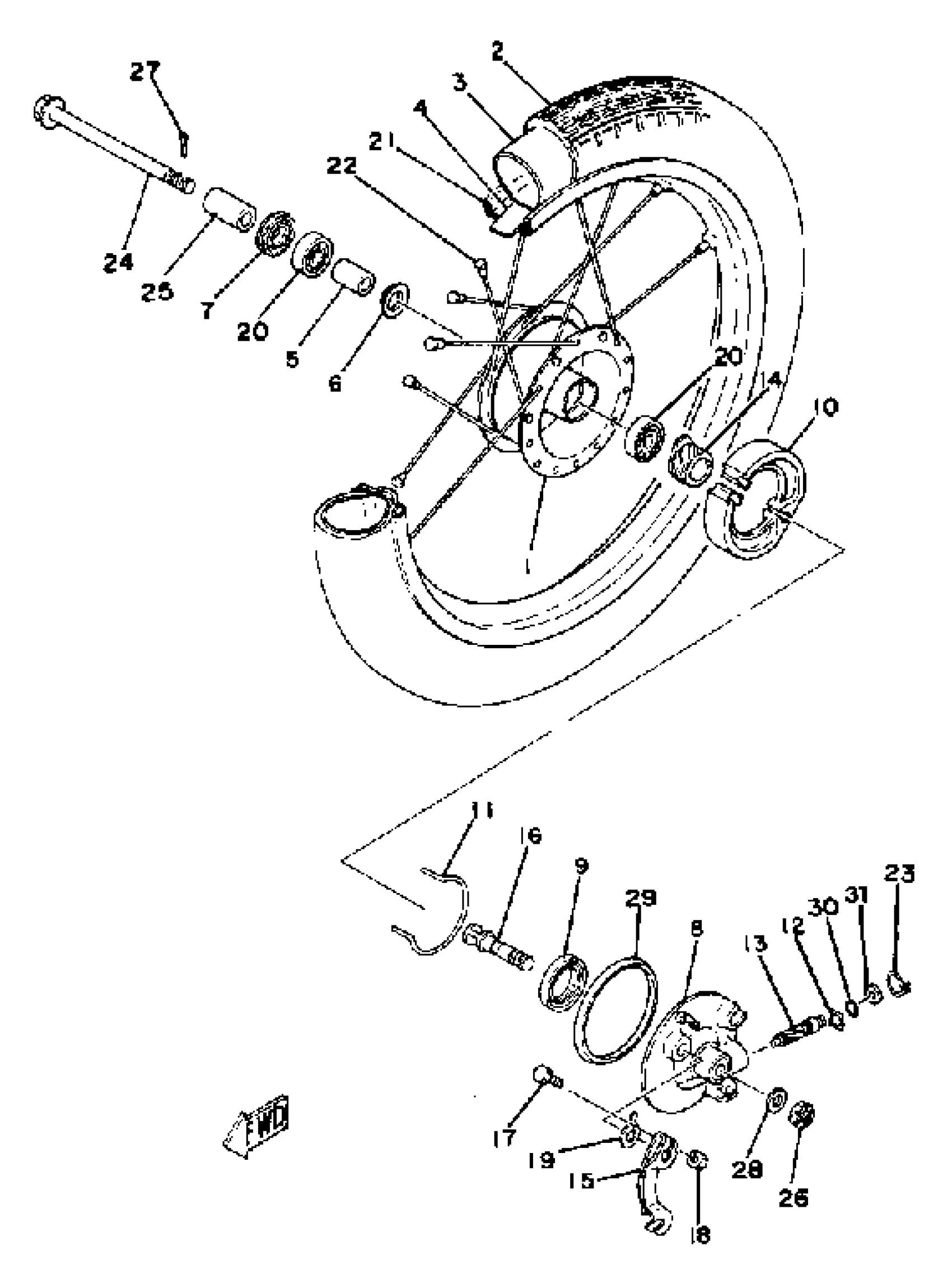

1979 Yamaha QT50 (QT50F) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

3L5-25111-01-35

1
Out of stock

2

225X14 IRC REAR

94122-14461-00

1

$81.95

In stock

3

TUBE (3L8)

94220-14143-00

1

$31.31

In stock

4

BAND, RIM (1K8)

94327-14076-00

1

$7.42

In stock

5

SPACER

90560-10173-00

1

$11.78

In stock

6

FLANGE, SPACER 2

2E9-25116-00-00

1

$6.38

In stock

7

OIL SEAL (2E9)

93106-17015-00

1

$9.71

In stock

8

PLATE, BRAKE SHOE

2E9-25121-01-35

1
Out of stock

9

OIL SEAL(2JA)

93109-34057-00

1

$4.20

In stock

10

BRAKESHOE SET-2PCS

2E9-W2535-00-00

1
Out of stock

11

SPRING, SHOE RETURN

2E9-25133-00-00

1

$7.34

In stock

12

RING, STOP

2T4-25137-00-00

—

$3.15

In stock

13

GEAR, METER

3L5-25138-00-00

1
Out of stock

14

GEAR, DRIVE

3L5-25135-00-00

1
Out of stock

15

LEVER, CAMSHAFT 1

2E9-25155-01-00

1
Out of stock

16

CAMSHAFT

25K-25151-00-00

1
Out of stock

17

BOLT(3JK)

97027-05020-00

—

$2.48

In stock

18

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

19

INDICATOR

3L8-2513A-00-00

—

$6.38

In stock

20

BEARING (3R0)

93306-20009-00

—

$38.79

In stock

21

RIM

(99999-01105-00)

1
Out of stock

22

SPOKE SET, FRONT

3L5-25104-00-00

1
Out of stock

23

RING (STOP)

2E9-25137-01-00

—

$6.46

In stock

24

AXLE,WHEEL

99999-02824-00

1
Out of stock

25

COLLAR (2E9)

90387-10620-00

—
Out of stock

26

NUT 3532518200

90171-10004-00

—

$5.32

In stock

27

PIN, COTTER

91490-20025-00

—

$1.31

In stock

28

—

$3.00

In stock

29

RING 1

3L5-25185-00-00

1
Out of stock

30

O-RING (611)

93210-10096-00

—

$3.11

In stock

31

WASHER,PLATE (2JA)

90201-064L6-00

—

$4.11

In stock
