1979 Yamaha QT50 (QT50F) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1979 Yamaha QT50 (QT50F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

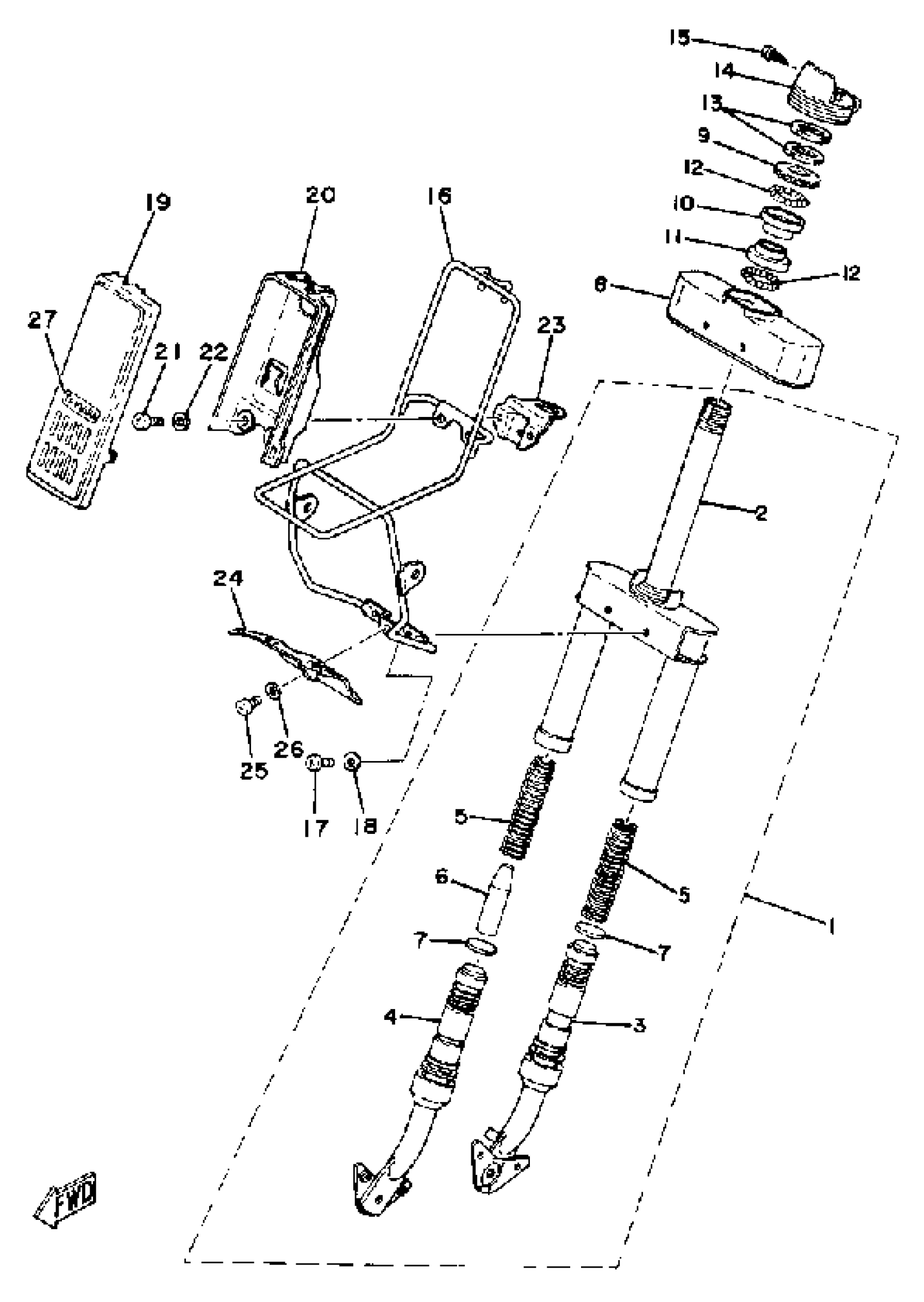

1979 Yamaha QT50 (QT50F) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASY

4K6-23100-03-4G

1
Out of stock

1

FRONT FORK ASSEMBLY

4K6-23100-02-66

1
Out of stock

2

UNDER BRACKET

4K6-23340-02-4G

1
Out of stock

2

UNDER BRACKET-COMP

4K6-23340-01-66

1
Out of stock

3

INNER TUBE 1

3L5-23110-00-00

1
Out of stock

4

INNER TUBE 2

3L5-23120-00-00

1
Out of stock

5

SPRING, FRONT FORK

3L5-23141-01-00

1
Out of stock

6

RUBBER

3L5-23195-00-00

1
Out of stock

7

SEAT, SPRING UNDER

2E9-23143-00-00

—

$8.97

In stock

8

PANEL, OUTER 1

3L5-23311-30-00

1
Out of stock

8

PANEL, OUTER 1

3L8-23311-00-00

1
Out of stock

9

RACE, BALL 1

3KJ-23411-01-00

1

$19.98

In stock

10

RACE, BALL 2

2SA-23412-00-00

1

$26.00

In stock

11

RACE, BALL 3

2SA-23413-00-00

—

$26.08

In stock

12

BALL

93505-32002-00

1

$2.22

In stock

13

NUT, FITTING 2

2E9-23454-00-00

—

$8.17

In stock

14

COVER, BALL RACE 1

3L5-23415-00-00

1
Out of stock

15

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

1
Out of stock

16

CARRIER, FRONT

3L8-24841-00-00

1
Out of stock

17

SCREW, PAN

98507-06014-00

—

$6.18

In stock

18

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

19

PANEL, FRONT

3L8-23391-00-00

1
Out of stock

20

PANEL, FRONT 2

3L8-23397-00-00

1
Out of stock

21

SCREW, PAN

98507-06014-00

—

$6.18

In stock

22

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock

23

BRACKET, CARRIER 1

3L5-24832-00-00

1
Out of stock

24

PLATE 1

3L5-21543-30-00

1
Out of stock

24

PLATE 1

3L8-21543-00-00

1
Out of stock

25

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

26

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

27

EMBLEM, YAMAHA

99241-00080-00

—

$11.89

In stock
