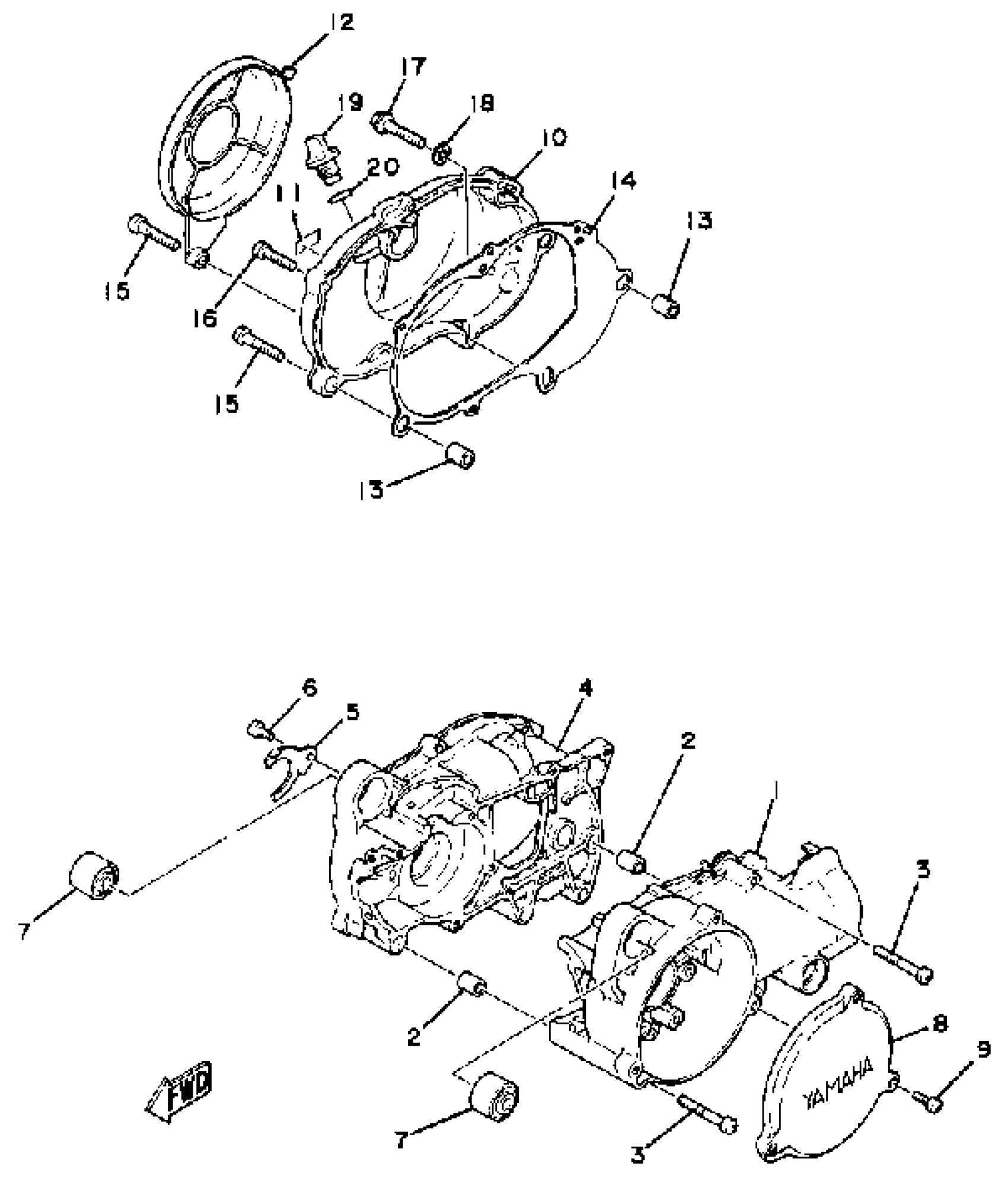

Yamaha QT50F (QT50) 1979 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

(3L5-15111-00-00)

Unavailable

2

PIN, DOWEL

99530-12016-00

$4.89

3

SCREW PAN HEAD

98580-06545-00

$5.60

4

CRANKCASE 2

3L5-15121-00-00

Unavailable

5

HOLDER

3L5-15128-00-00

Unavailable

6

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

7

DAMPER, ENG MOUNT 1

(3L6-15316-00-00)

Unavailable

8

COVER, GENERATOR

3L5-15415-00-00

Unavailable

9

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

10

COVER, CRANKCASE R

3L5-15421-00-00

Unavailable

11

PLATE

(3L5-15191-00-00)

Unavailable

12

PROTECTOR

3L5-15491-00-00

Unavailable

13

PIN, DOWEL

99530-12016-00

$4.89

14

GASKET, CRANKCASE COVER 1

3L5-15451-12-00

$18.49

15

SCREW, PAN HEAD(6H4)

97885-06035-00

Unavailable

16

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

17

BOLT, FLANGE

95817-08035-00

Unavailable

18

WASHER, PLATE 3411117500

90201-08087-00

Unavailable

19

PLUG, OIL

4J2-15363-10-00

Unavailable

20

O-RING (26H)

93210-14579-00

Unavailable
