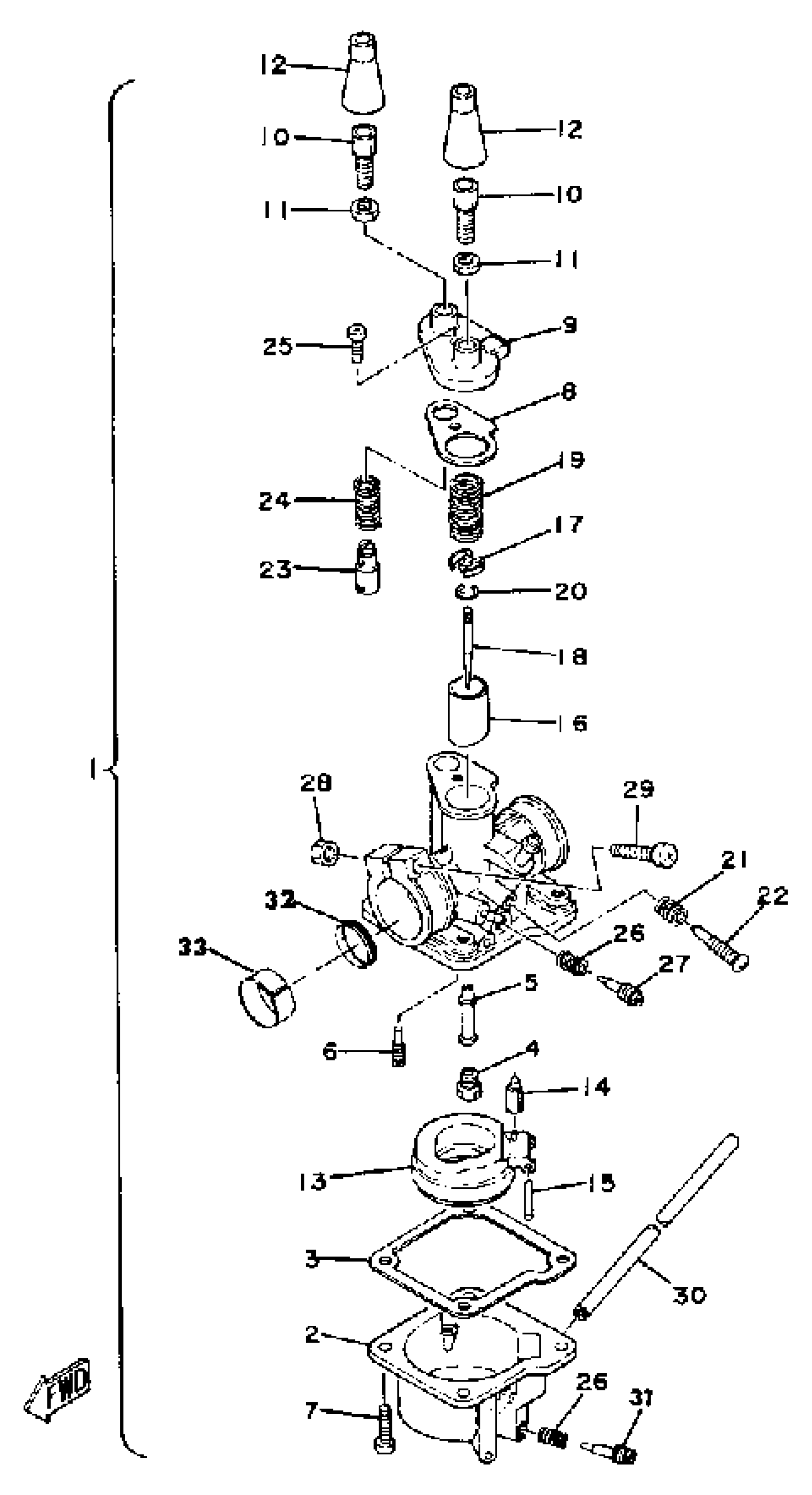

Yamaha QT50F (QT50) 1979 CARBURETOR Diagram

CARBURETOR ASSEMBLY 1

3L5-14101-01-00

Unavailable

CARBURETOR ASSEMBLY 1

3L5-14101-01-00

Unavailable

BODY, FLOAT CHMBR 1

(3L5-14181-07-00)

Unavailable

GASKET, FLOAT CHAMBER

3L5-14184-00-00

$30.99

JET, MAIN (# 65)

620-14231-13-00

$10.99

JET, MAIN (# 70)

620-14231-14-00

$9.99

JET, MAIN (# 75)

620-14231-15-00

$10.99

JET, MAIN (# 80)

620-14231-16-00

Unavailable

. NOZZLE, MAIN

3L7-14141-10-00

Unavailable

JET, PILOT (# 40)

3L5-14142-40-00

$9.99

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

GASKET, MIXING CHAMBER

3L5-14198-00-00

$8.99

TOP, MIXING CHAMBER

3L5-14158-00-00

Unavailable

CABLE ADJUST SCREW SET

12G-14106-00-00

$19.99

NUT, WIRE ADJUSTING

802-14161-00-00

$7.99

CAP

307-14169-10-00

Unavailable

FLOAT

3L6-14185-01-00

Unavailable

NEEDLE VALVE ASSY

3L5-14190-01-00

Unavailable

PIN, FLOAT

603-14186-00-00

Unavailable

VALVE, THROTTLE (CA4.0)

3L5-14112-40-00

Unavailable

CLIP

3L5-14137-00-00

Unavailable

NEEDLE SET

34M-1490J-00-00

Unavailable

SPRING, THROTTLE VALVE

174-14131-01-00

Unavailable

CLIP

127-14137-00-00

Unavailable

. SPRING, THRTL STOP

3L6-14133-00-00

Unavailable

THROTTLE SCREW SET

36R-14103-00-00

Unavailable

PLUNGER, STARTER

58E-14171-00-00

Unavailable

SPRING, PLUNGER

127-14135-00-00

Unavailable

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

. SPRING, AIR ADJUSTING

3F7-14134-00-00

Unavailable

SCREW, AIR ADJUSTING

3L5-14123-01-00

Unavailable

NUT, HEXAGON (663)

95380-05600-00

Unavailable

SCREW, PANHEAD (A93)

98580-05525-00

Unavailable

HOSE (L200)

90445-05N13-00

Unavailable

AIR SCREW SET

36R-14104-00-00

Unavailable

SEAL

1M3-14997-00-00

Unavailable

PACKING, INSULATING

1V3-14271-00-00

Unavailable
