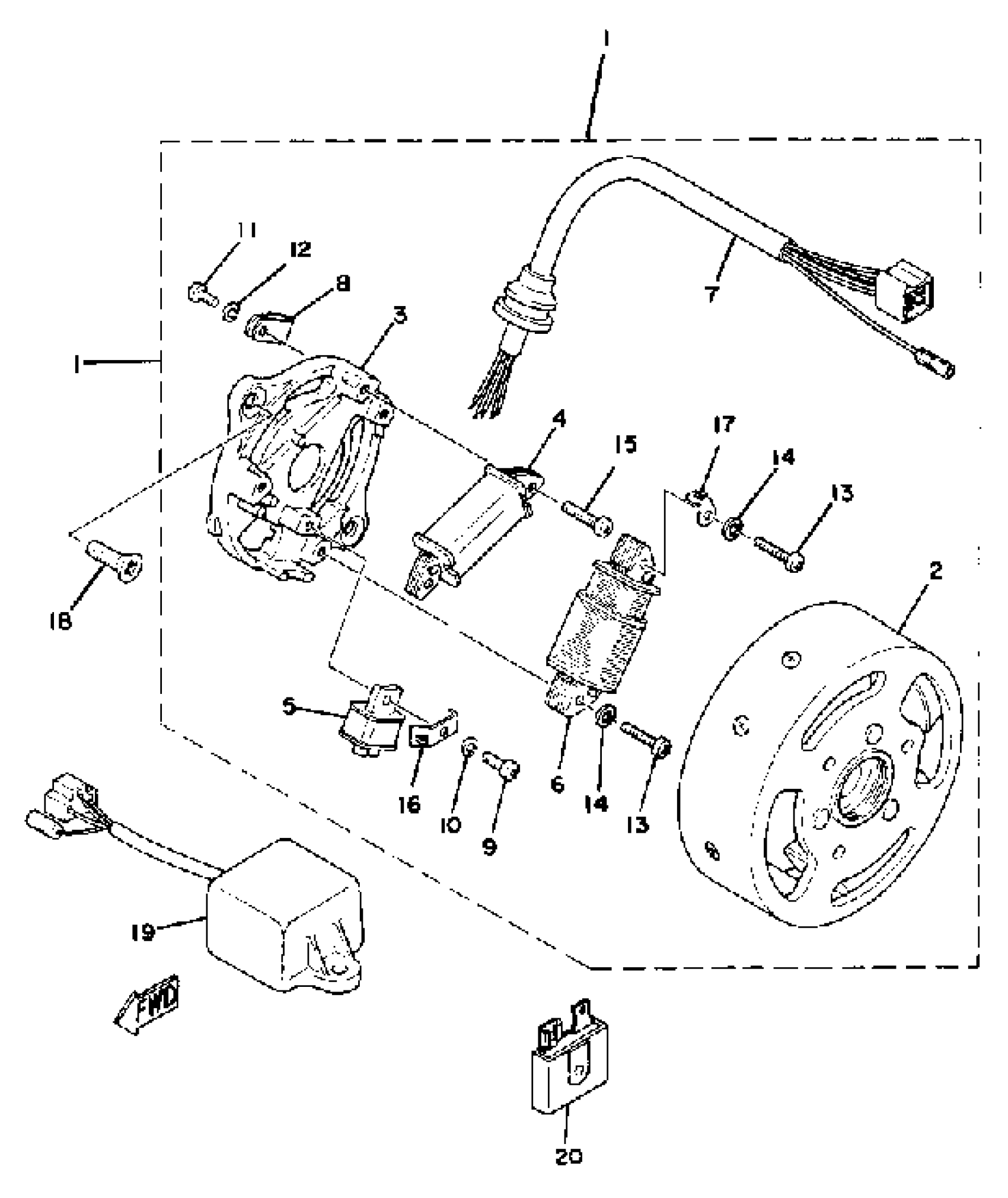

Yamaha QT50F (QT50) 1979 C - D - I - MAGNETO Diagram

#

Description
Price

1

CDI MAGNETO ASSEMBLY

(3L8-85500-M1-00)

Unavailable

2

ROTOR ASSEMBLY

(3L5-85550-M0-00)

Unavailable

3

BASE, MAGNETO

3L5-85561-M1-00

Unavailable

4

COIL, CHARGE

4Y4-85520-M1-00

Unavailable

5

PULSER ASSY

3L5-85580-M0-00

$70.99

6

COIL, LIGHTING 1

3L8-81313-M0-00

Unavailable

7

CORD ASSEMBLY

3L8-8131X-M0-00

Unavailable

8

CLAMP (2T4)

90461-05036-00

Unavailable

9

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

11

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

SCREW, PAN HEAD

98517-04025-00

Unavailable

14

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

15

SCREW, PAN HEAD

98511-04012-00

Unavailable

16

TERMINAL, EARTH 1

2T4-85568-M1-00

Unavailable

17

TERMINAL, EARTH 2

2T4-85569-M1-00

Unavailable

18

SCREW, FLAT

98704-06016-00

Unavailable

19

CDI UNIT ASSY

3L4-85540-M1-00

Unavailable

20

RECTIFIER ASSY

353-81970-M2-00

Unavailable
