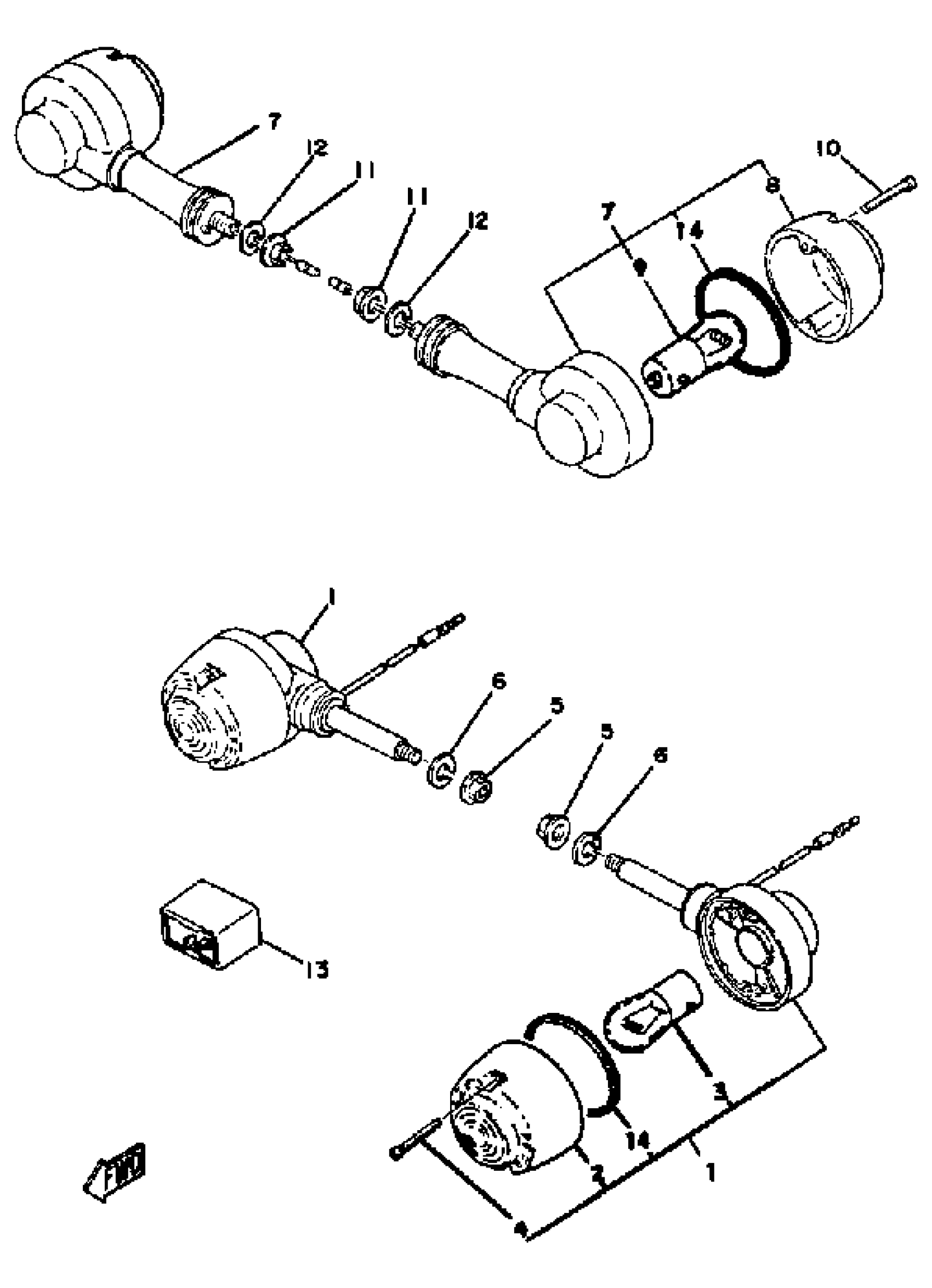

Yamaha QT502G (QT502) BH18742 1980 FLASHER LIGHT Diagram

#

Description

Price

1

FRT FLSHR LITE ASSEMBLYASSY 1

3L9-83310-60-00

Unavailable

2

LENS, FLASHER

3L8-83312-60-00

Unavailable

3

BULB,FLASHER(6V18W)

115-83311-60-00

Unavailable

4

SCREW, TAPPING (FJ1)

97780-40535-00

Unavailable

5

NUT, CROWN

95303-08800-00

$9.49

6

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

7

R FLSHR LITE ASSEMBLY

3L8-83330-60-00

Unavailable

8

LENS, FLASHER

3L8-83312-60-00

Unavailable

9

BULB,FLASHER(6V18W)

115-83311-60-00

Unavailable

10

SCREW, TAPPING (FJ1)

97780-40535-00

Unavailable

11

NUT(3BM)

95314-10600-00

$2.39

12

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

13

FLASHER RELAY ASSY

3BK-83350-00-00

Unavailable

14

GASKET,FLASHER LANS

183-83313-70-00

Unavailable
