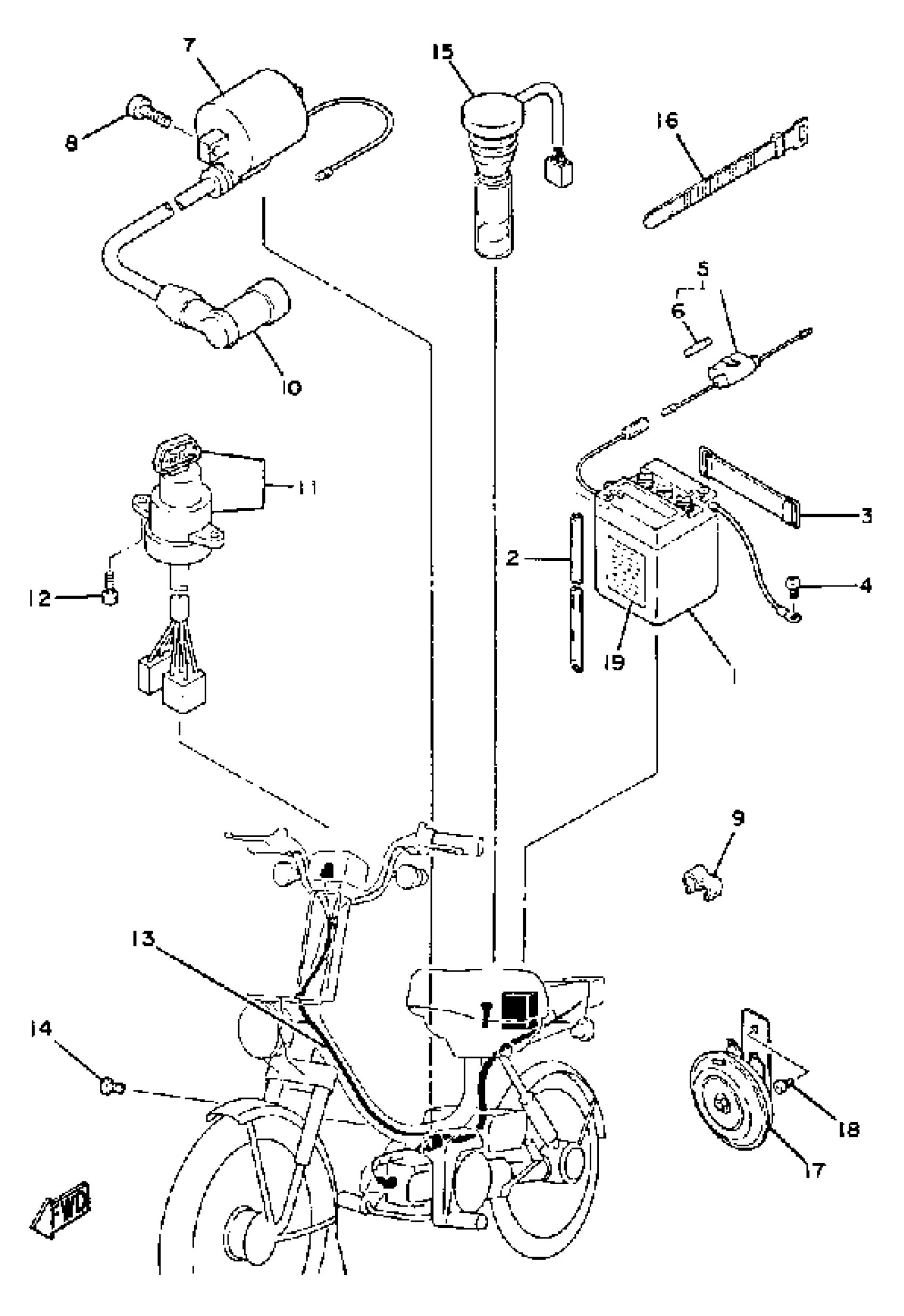

Yamaha QT502G (QT502) BH18742 1980 ELECTRICAL 1 Diagram

#

Description
Price

1

6N4-2A-2 GS BATTERY

6N4-2A200-00-00

Unavailable

2

PIPE, BREATHER

3L5-82112-00-00

Unavailable

3

BAND, BATTERY

22F-82131-00-00

$29.99

4

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

5

FUSE HOLDER ASSY

55K-82150-02-00

$14.49

6

FUSE

1A0-82151-00-00

$16.49

7

IGNITION COIL ASSY

4RP-82310-26-00

$73.99

8

SCREW, PAN

98507-06014-00

$8.49

9

CLIP (867)

90468-15020-00

Unavailable

10

PLUG CAP ASSY

56J-82370-00-00

$64.99

11

MAIN SWITCH ASSEMBLY

3L8-82510-20-00

Unavailable

12

SCREW

98980-04016-00

Unavailable

13

WIRE HARNESS ASSEMBLY

3L8-82590-20-00

Unavailable

14

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

15

OIL LVL GAUGE ASSEMBLY

5M0-85720-00-00

Unavailable

16

BAND, SWITCH CORD

437-83936-01-00

Unavailable

17

HORN

36X-83371-11-00

Unavailable

18

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

19

LABEL, BATTERY

40A-82141-G0-00

Unavailable
