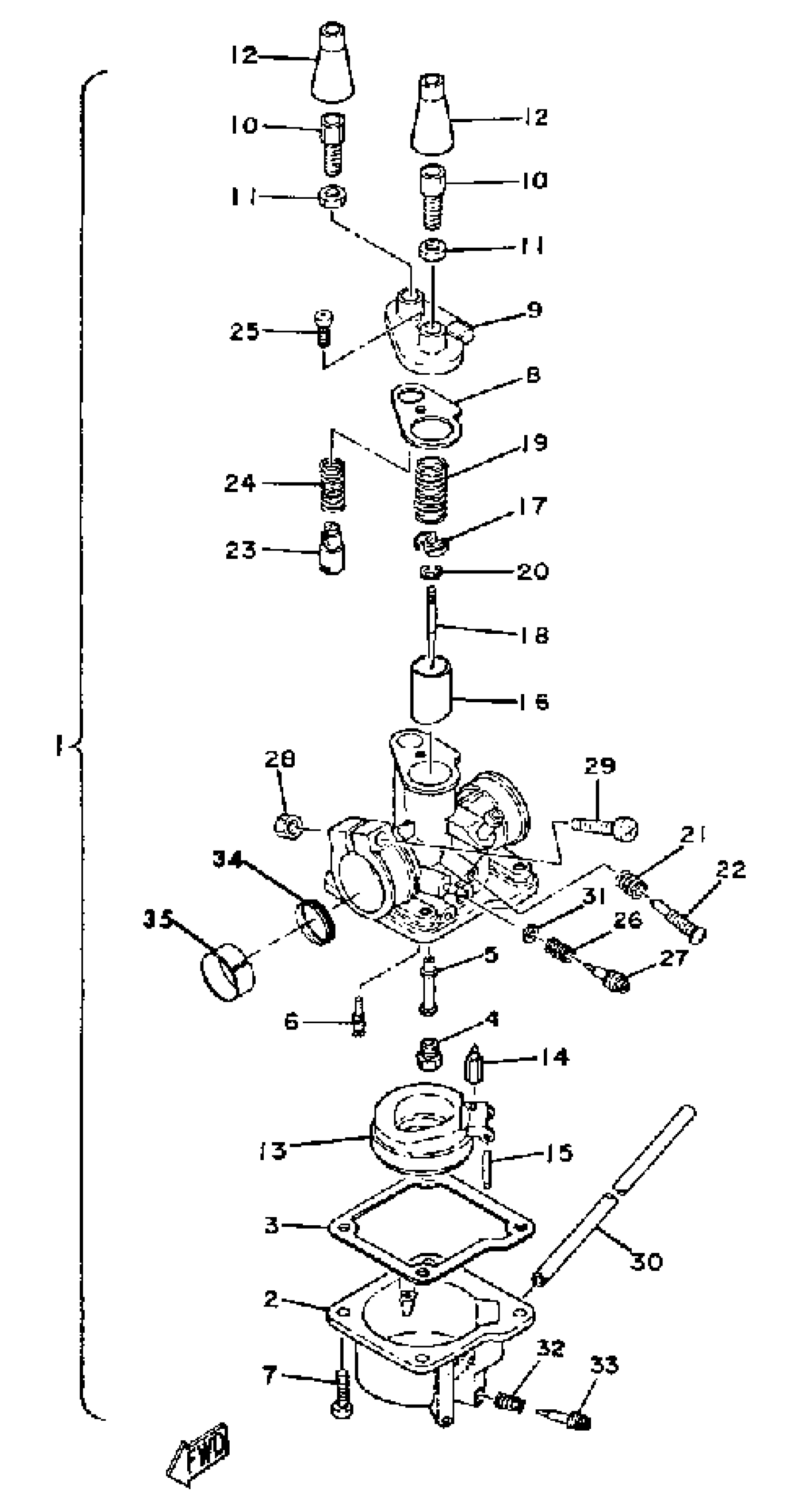

Yamaha QT502G (QT502) BH18742 1980 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

3L5-14101-01-00

Unavailable

2

BODY, FLOAT CHMBR 1

(3L5-14181-07-00)

Unavailable

3

GASKET, FLOAT CHAMBER

3L5-14184-00-00

$24.49

4

JET, MAIN (# 65)

620-14231-13-00

$8.88

4

JET, MAIN (# 70)

620-14231-14-00

$8.14

4

JET, MAIN (# 75)

620-14231-15-00

$9.95

5

. NOZZLE, MAIN

3L7-14141-10-00

Unavailable

6

JET, PILOT (# 40)

3L5-14142-40-00

$7.77

7

SCREW, PAN HEAD(GA5)

98580-04014-00

$2.60

8

GASKET, MIXING CHAMBER

3L5-14198-00-00

$7.03

9

TOP, MIXING CHAMBER

3L5-14158-00-00

Unavailable

10

CABLE ADJUST SCREW SET

12G-14106-00-00

$16.49

11

NUT, WIRE ADJUSTING

802-14161-00-00

$6.20

12

CAP

307-14169-10-00

Unavailable

13

FLOAT

3L6-14185-01-00

$54.82

14

NEEDLE VALVE ASSY

3L5-14190-01-00

Unavailable

15

PIN, FLOAT

603-14186-00-00

Unavailable

16

VALVE, THROTTLE (CA4.0)

3L5-14112-40-00

Unavailable

17

CLIP

3L5-14137-00-00

Unavailable

18

NEEDLE SET

34M-1490J-00-00

Unavailable

19

SPRING, THROTTLE VALVE

174-14131-01-00

Unavailable

20

CLIP

127-14137-00-00

Unavailable

21

. SPRING, THRTL STOP

3L6-14133-00-00

Unavailable

22

THROTTLE SCREW SET

36R-14103-00-00

Unavailable

23

PLUNGER, STARTER

58E-14171-00-00

Unavailable

24

SPRING, PLUNGER

127-14135-00-00

Unavailable

25

SCREW, PAN HEAD(62X)

97885-05010-00

$2.80

26

. SPRING, AIR ADJUSTING

3F7-14134-00-00

Unavailable

27

SCREW, AIR ADJUSTING

3L5-14123-01-00

Unavailable

28

NUT, HEXAGON (663)

95380-05600-00

Unavailable

29

SCREW, PANHEAD (A93)

98580-05525-00

Unavailable

30

HOSE (L200)

90445-05N13-00

Unavailable

31

WASHER

3L5-14962-00-00

Unavailable

32

. SPRING, AIR ADJUSTING

3F7-14134-00-00

Unavailable

33

AIR SCREW SET

36R-14104-00-00

Unavailable

34

SEAL

1M3-14997-00-00

Unavailable

35

PACKING, INSULATING

1V3-14271-00-00

Unavailable
