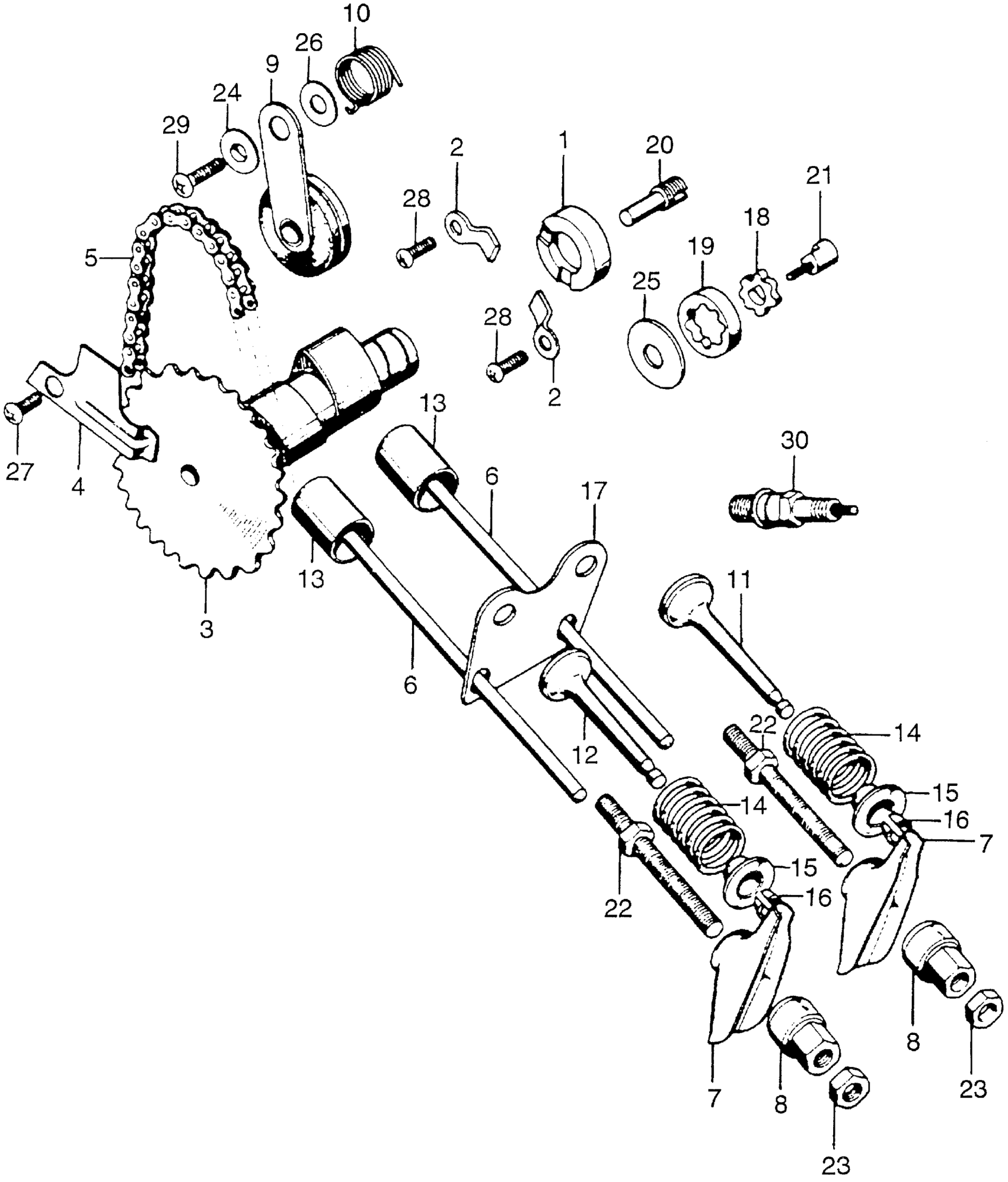

Honda QA50K3A (75) MOTORCYCLE, JPN, VIN# QA50-4000001 VALVE + CAMSHAFT Diagram

#

Description
Price

1

BUSH (17.5MM) (NOT AVAILABLE)

11215-114-010

Unavailable

2

PLATE, BUSH SETTING (17.5MM)

11218-081-010

Unavailable

3

CAMSHAFT (30T) (NOT AVAILABLE)

14101-081-020

Unavailable

4

PLATE, CAMSHAFT SETTING (NOT AVAILABLE)

14105-081-010

Unavailable

5

CHAIN, CAM (42 LINKS) (NOT AVAILABLE) This part replaces 14401-081-000.

23151-816-631

Unavailable

5

CHAIN, CAM (42 LINKS) (NOT AVAILABLE)

23151-816-631

Unavailable

6

ROD, PUSH (NOT AVAILABLE)

14411-081-000

Unavailable

7

ARM, VALVE ROCKER (NOT AVAILABLE)

14431-081-000

Unavailable

8

PIVOT, VALVE ROCKER ARM

14451-081-000

Unavailable

9

TENSIONER, CAM CHAIN (NOT AVAILABLE)

14500-081-000

Unavailable

10

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE)

14541-081-000

Unavailable

11

VALVE, IN. This part replaces 14711-081-010.

14711-081-020

Unavailable

11

VALVE, IN.

14711-081-020

Unavailable

12

VALVE, EX. This part replaces 14721-081-010.

14721-081-020

Unavailable

12

VALVE, EX.

14721-081-020

Unavailable

13

LIFTER, VALVE

14731-081-000

Unavailable

14

SPRING, VALVE

14751-081-000

Unavailable

15

RETAINER, VALVE SPRING

14771-081-010

Unavailable

16

COTTER, VALVE

14781-001-004

$4.95

16

COTTER, VALVE

14781-001-010

$5.66

17

PLATE, PUSH ROD GUIDE (NOT AVAILABLE)

14791-081-000

Unavailable

18

ROTOR, OIL PUMP (INNER) (NOT AVAILABLE) This part replaces 15331-035-000.

15331-035-004

Unavailable

18

ROTOR, OIL PUMP (INNER) (NOT AVAILABLE)

15331-035-004

Unavailable

19

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE) This part replaces 15332-035-000.

15332-035-004

Unavailable

19

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE)

15332-035-004

Unavailable

20

SHAFT A, OIL PUMP DRIVE

15381-081-000

Unavailable

21

SHAFT B, OIL PUMP DRIVE (NOT AVAILABLE)

15382-081-000

Unavailable

22

BOLT, PIVOT (NOT AVAILABLE)

90012-081-010

Unavailable

23

NUT, PIVOT ADJ.

90206-ZE1-000

$3.30

23

NUT, PIVOT ADJ. This part replaces 90206-023-000.

90206-ZE1-000

$3.30

24

WASHER (6MM)

90445-081-000

Unavailable

25

WASHER, PUMP SIDE

90471-081-000

Unavailable

26

WASHER (6X17) (NOT AVAILABLE)

90511-216-670

Unavailable

27

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

27

SCREW, PAN (6X12)

93500-06012-0A

$1.49

27

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

28

SCREW, PAN (6X14) This part replaces 93500-06014.

93500-06014-0A

$1.49

28

SCREW, PAN (6X14)

93500-06014-0A

$1.49

29

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

29

SCREW, PAN (6X16)

93500-06016-0A

$1.49

30

SPARK PLUG (U20FB) (DENSO) This part replaces 98056-56720.

98056-56723

$2.20

30

SPARK PLUG (U20FB) (DENSO) This part replaces 98056-56721.

98056-56723

$2.20

30

SPARK PLUG (U20FB) (DENSO)

98056-56723

$2.20

30

SPARK PLUG (C7HS) (NGK) This part replaces 98056-57711.

98056-57713

$2.38

30

SPARK PLUG (C7HS) (NGK)

98056-57713

$2.38

30

SPARK PLUG (C7HS) (NGK) This part replaces 98056-57717.

98056-57713

$2.38
