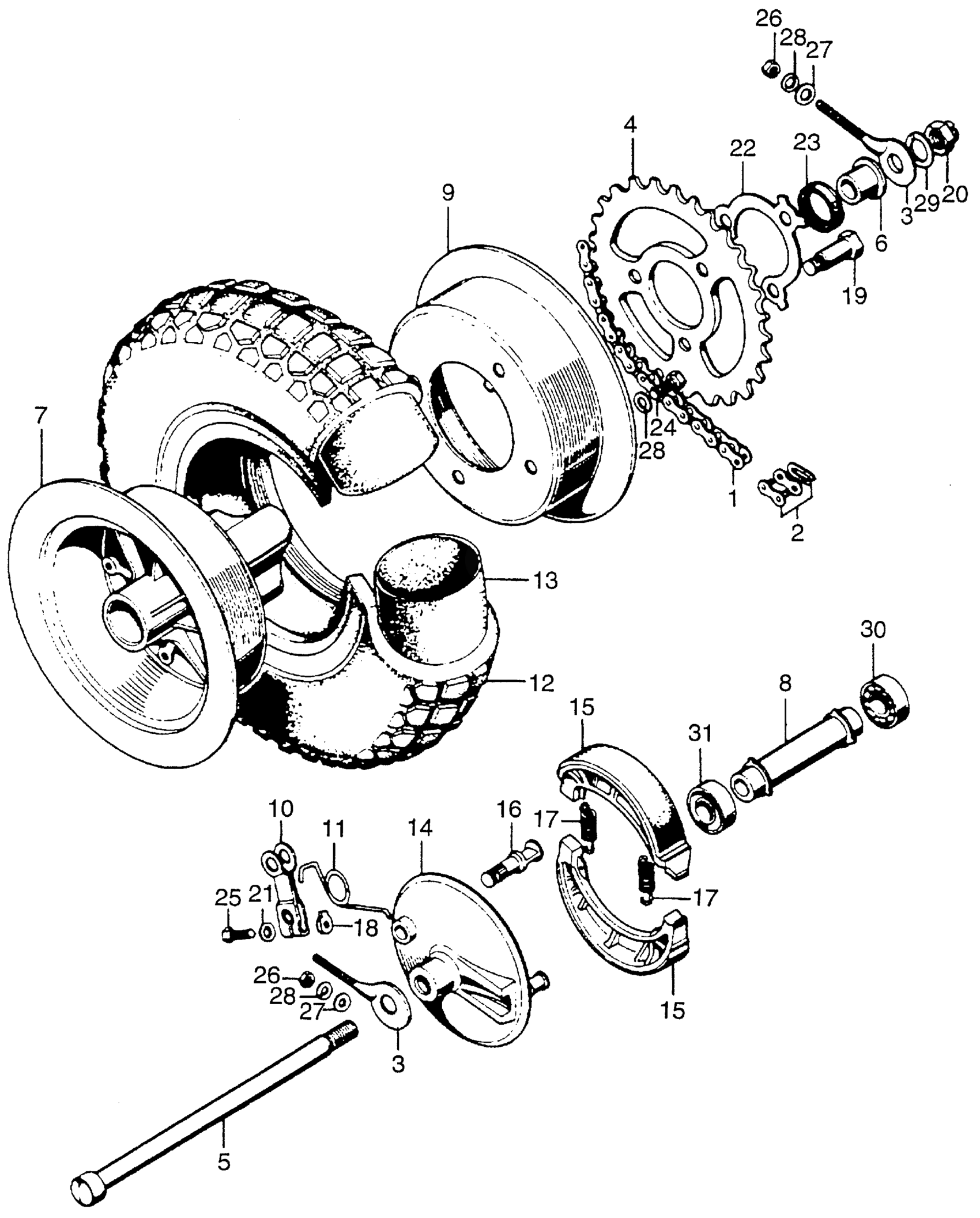

Honda QA50K3A (75) MOTORCYCLE, JPN, VIN# QA50-4000001 REAR WHEEL Diagram
#
Description
Price
4
SPROCKET, FINAL DRIVEN (22T) (NOT AVAILABLE)
41201-114-010
Unavailable
5
AXLE, FR. WHEEL This part replaces 42301-045-010.
44301-074-000
Unavailable
5
AXLE, FR. WHEEL
44301-074-000
Unavailable
6
COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)
42311-045-000
Unavailable
7
HUB, RR. WHEEL *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)
42601-114-010A
Unavailable
8
COLLAR, RR. AXLE DISTANCE
42620-045-020
Unavailable
8
COLLAR, RR. AXLE DISTANCE
42620-165-405
Unavailable
9
RIM, RR. WHEEL *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)
42701-114-000A
Unavailable
10
ARM, FR. BRAKE This part replaces 43410-045-670.
45410-045-405
Unavailable
10
ARM, RR. BRAKE
45410-045-405
Unavailable
11
SPRING, RR. BRAKE ARM RETURN (NOT AVAILABLE)
43412-045-670
Unavailable
12
TIRE, FR. (4.00-5) (NITTO) (NOT AVAILABLE)
44711-114-006
Unavailable
13
TUBE (400X5) (TR-244) (NOT AVAILABLE)
44712-114-003
Unavailable
14
PANEL, RR. BRAKE *CLEAR* (CLEAR) (NOT AVAILABLE) This part replaces 45100-045-020.
45100-045-020ZA
Unavailable
14
PANEL, RR. BRAKE *NO_CODE* (NO COLOR NAME ASSIGNED) (NOT AVAILABLE)
45100-045-020ZA
Unavailable
15
SHOE, BRAKE (SEE KIT P/N--END OF BLOCK) (N/A: USE P/N 451A0-001-670)
45120-001-010
Unavailable
16
CAM, RR. BRAKE (NOT AVAILABLE)
45131-045-000
Unavailable
19
BOLT, FINAL DRIVEN SPROCKET (NOT AVAILABLE)
90170-045-000
Unavailable
